5-558530-3
| Manufacturer | |
| Description | Conn Modular Plug PL 8 POS 1.02mm Crimp ST Cable Mount 8 Terminal 1 Port Box Cat 5e Modular Plugs and Accessories CONN MOD PLUG 8P8C UNSHIELDED Cat 5e modular plug, 8/8, stranded wire Modular Connectors / Ethernet Connectors 8/8 ROUND CABLE CAT5 Conn Modular Plug PL 8 POS 1.02mm Crimp ST Cable Mount 8 Terminal 1 Port Box Cat 5e Product Highlights:PlugNumber of Positions = 8Not Shielded8 Contacts LoadedCable Style = Round StrandedSearch Keywords:FCC Part 68, EIA/TIA 568A, mass termination, NIC, Network Interface Cards, PC Cards, input/output, box to box, Plug;8;8;Polycarbonate;UL94V-2;PhosphorBronze;RoundStranded Plug; RJ45; PIN:8; Cat:5e; with conductor guide; Pin layout:8p8c Modular UTP Plug RJ45 |
| Category |
Business
| Product | Modular Plugs | Product Category | Modular Connectors / Ethernet Connectors |
| Standard Package | Bulk | Factory Pack Quantity | 100 |
Compliance
| RoHS | Lead free / RoHS Compliant | Approval Agency | UL,CSA |
| Material Flammability Rating | UL 94 V-2 | ||
Electrical
| Ethernet | Cat 5e | Voltage Rating | 150 V |
| Current Rating (Max) | 1.5 A | Insulation Resistance | 500 MOhms |
| Connector - Voltage Input | Cat5 | ||
Mechanical
| Color | Translucent - Clear | Pitch | 1.02 mm |
| Length | 0.895" (22.74mm) | Weight | 1.71 g |
| Packaging | Bulk | Shielding | Unshielded |
| Cable Type | Round Cable, Stranded Wires | Wire Gauge | 24 AWG |
| Orientation | Straight | Shield Type | UTP |
| Termination | Crimp | Cable Opening | 0.190 - 0.220 in |
| Mounting Type | Cable Mount | Angle of Throw | Straight |
| Cable Diameter | 24 Str | Conductor Type | 8 |
| Connector Type | Modular Plug | Contact Finish | Gold |
| Mounting Style | Cable | Package / Case | 100 |
| Contact Material | Phosphor Bronze | Housing Material | Polycarbonate (PC) |
| Package Quantity | 100 | Primary Material | Modular |
| Connector - Cable | plug | Number of Contacts | 8 |
| Number of Positions | 8 | Supplier Device Package | Non Keyed |
| Contact Finish Thickness | 50µin (1.27µm) | Center Conductor Diameter | 0.035to0.039in. |
| Number of Positions/Bay/Row | 8C | 1st Connector Mounting Feature | 8p8c |
Product Info
| Spg | 100 | Type | Modular Plug |
| Grade | Cat5e | Gender | PL |
| Series | AMP | Plug Type | Modular UTP |
| USOC Codes | RJ45 | Performance | Cat5 |
| Adapter Series | AMP | Specifications | RJ45 |
| Number of Ports | 1 | Number of Units | 1 |
| Operating Position | 8 | Performance Category | Cat 5e |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) | ||
Environmental
| Ratings | Cat5e | Operating Temperature | - 40 C to + 70 C |
Documents & Media
Similar Parts
558211-5
te connectivity / amp
Connector Accessories Telephone/Telecom Plug Boot Blue Modular Plugs and Accessories CONN ACCY BOOT BLUE Cable Boots 8P MOD CABLE BOOT BLUE Connector Accessories Telephone/Telecom Plug Boot Blue Product Highlights:BootBoot Type = StandardBoot Color = BlueSearch Keywords:FCC Part 68, EIA/TIA 568A, mass termination, NIC, Network Interface Cards, PC Cards, input/output, box to box,
5-558530-3
te connectivity / amp
Conn Modular Plug PL 8 POS 1.02mm Crimp ST Cable Mount 8 Terminal 1 Port Box Cat 5e Modular Plugs and Accessories CONN MOD PLUG 8P8C UNSHIELDED Cat 5e modular plug, 8/8, stranded wire Modular Connectors / Ethernet Connectors 8/8 ROUND CABLE CAT5 Conn Modular Plug PL 8 POS 1.02mm Crimp ST Cable Mount 8 Terminal 1 Port Box Cat 5e Product Highlights:PlugNumber of Positions = 8Not Shielded8 Contacts LoadedCable Style = Round StrandedSearch Keywords:FCC Part 68, EIA/TIA 568A, mass termination, NIC, Network Interface Cards, PC Cards, input/output, box to box, Plug;8;8;Polycarbonate;UL94V-2;PhosphorBronze;RoundStranded Plug; RJ45; PIN:8; Cat:5e; with conductor guide; Pin layout:8p8c Modular UTP Plug RJ45
558211-4
te connectivity / amp
Connector Accessories Telephone/Telecom Plug Boot Green Modular Plugs and Accessories Cable Boots 8P MOD CABLE BOOT GREEN Modular Plugs and Accessories Product Highlights:BootBoot Type = StandardBoot Color = GreenSearch Keywords:FCC Part 68, EIA/TIA 568A, mass termination, NIC, Network Interface Cards, PC Cards, input/output, box to box,
558211-7
te connectivity / amp
Connector Accessories Modular Plug Boot Elastomer Polyolefin Orange Modular Plugs and Accessories Cable Boots 8P MOD CABLE BOOT ORANGE Modular Plugs and Accessories Product Highlights:BootBoot Type = StandardBoot Color = OrangeSearch Keywords:FCC Part 68, EIA/TIA 568A, mass termination, NIC, Network Interface Cards, PC Cards, input/output, box to box,
1-569875-0
te connectivity / amp
Connector Accessories Modular Plugs Snagless Boot Gray Modular Plugs and Accessories CONN ACCY BOOT HOODED GRAY Modular Connectors / Ethernet Connectors MOD PLUG BOOT GRAY Connector Accessories Modular Plugs Snagless Boot Gray Product Highlights:BootBoot Type = SnaglessBoot Color = GraySearch Keywords:FCC Part 68, EIA/TIA 568A, mass termination, NIC, Network Interface Cards, PC Cards, input/output, box to box, SNAGLESS BOOT, ELASTOMER POLYOLEFIN
569875-1
te connectivity / amp
Connector Accessories Modular Plugs Snagless Boot Black Modular Plugs and Accessories CONN ACCY BOOT HOODED BLACK Cable boot, cat3/5/5e modular plug,black Cable Boots MOD PLUG BOOT Connector Accessories Modular Plugs Snagless Boot Black Product Highlights:BootBoot Type = SnaglessBoot Color = BlackSearch Keywords:FCC Part 68, EIA/TIA 568A, mass termination, NIC, Network Interface Cards, PC Cards, input/output, box to box, SNAGLESS BOOT, 8WAY CableBoot;Snagless;Black;0.21in.;RoHSCompliant,ELVCompliant Modular Plug UTP Boot
569875-5
te connectivity / amp
Connector Accessories Modular Plugs Snagless Boot Blue Modular Plugs and Accessories CONN ACCY BOOT HOODED BLUE Cable boot, cat3/5/5e modular plug, blue Cable Boots BLUE BOOT Connector Accessories Modular Plugs Snagless Boot Blue Product Highlights:BootBoot Type = SnaglessBoot Color = BlueSearch Keywords:FCC Part 68, EIA/TIA 568A, mass termination, NIC, Network Interface Cards, PC Cards, input/output, box to box, SNAGLESS BOOT, ELASTOMER POLYOLEFIN CableBoot;Snagless;Blue;0.21in.;RoHSCompliant,ELVCompliant 5.33 mm Cable Diameter Blue Snagless Boot
558211-3
te connectivity / amp
Connector Accessories Telephone/Telecom Plug Boot Red Modular Plugs and Accessories Cable Boots 8P MOD CABLE BOOT RED Modular Plugs and Accessories Product Highlights:BootBoot Type = StandardBoot Color = RedSearch Keywords:FCC Part 68, EIA/TIA 568A, mass termination, NIC, Network Interface Cards, PC Cards, input/output, box to box,
569875-3
te connectivity / amp
Connector Accessories Modular Plugs Snagless Boot Red Modular Plugs and Accessories CONN ACCY BOOT HOODED RED Cable boot, cat3/5/5e modular plug, red Cable Boots RED BOOT Connector Accessories Modular Plugs Snagless Boot Red Product Highlights:BootBoot Type = SnaglessBoot Color = RedSearch Keywords:FCC Part 68, EIA/TIA 568A, mass termination, NIC, Network Interface Cards, PC Cards, input/output, box to box, SNAGLESS BOOT, ELASTOMER POLYOLEFIN CableBoot;Snagless;Red;0.21in.;RoHSCompliant,ELVCompliant
558527-1
te connectivity / amp
Connector Accessories Modular Plug Strain Relief Without Retention Hole Brass Tin Finish Modular Plugs and Accessories CONN ACCY STRAIN RELIEF Modular Connectors / Ethernet Connectors STRAIN RELIEF Connector Accessories Modular Plug Strain Relief Without Retention Hole Brass Tin Finish Product Highlights:Strain ReliefSearch Keywords:FCC Part 68, EIA/TIA 568A, mass termination, NIC, Network Interface Cards, PC Cards, input/output, box to box, STRAIN RELIEF, BRASS

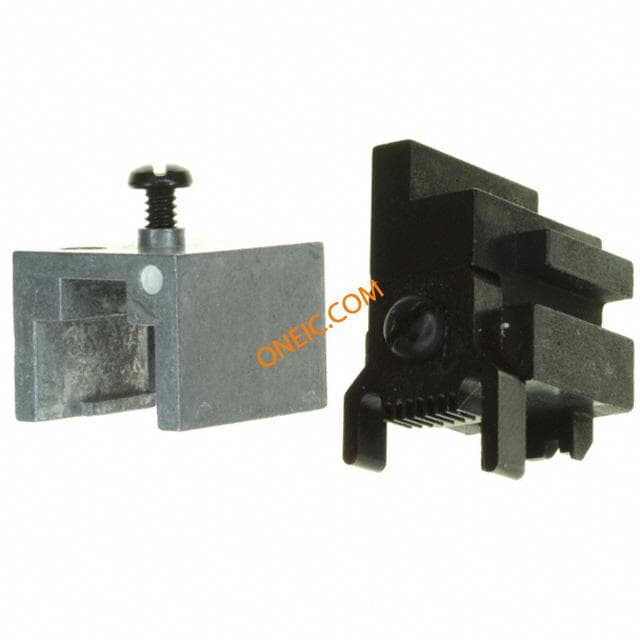

1-853400-0
