点击放大查看
5-554739-2
| Manufacturer | |
| Description | Conn Telephone/Telecom PL 8 POS 1.02mm Crimp ST Cable Mount 8 Terminal 1 Port Box Cat 3 Modular Plugs and Accessories CONN MOD PLUG 8P8C UNSHIELDED Cat 5 modular plug, 8 position,AWG 26-28 Modular Connectors / Ethernet Connectors 8P FLAT OVAL STR 26-28 AWG Conn RJ-45 PL 8 POS 1.02mm Crimp ST Cable Mount 8 Terminal 1 Port Box Cat 3 Conn RJ-45 PL 8 POS 1.02mm Crimp ST Cable Mount 8 Terminal 1 Port Box Cat 3 Product Highlights:PlugNumber of Positions = 8Not Shielded8 Contacts LoadedCable Style = Flat Oval StrandedSearch Keywords:FCC Part 68, EIA/TIA 568A, mass termination, NIC, Network Interface Cards, PC Cards, input/output, box to box, MJPLUG,8P,OVAL,STRAND,AWG26-28 |
| Category |
Business
| Product Category | Modular Connectors / Ethernet Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 500 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Approval Agency | UL,CSA |
| Material Flammability Rating | UL94V-2 | ||
Electrical
| Voltage Rating | 150 V | Current Rating (Max) | 1.5 A |
| Connector - Voltage Input | Cat3 | ||
Mechanical
| Color | Translucent - Clear | Depth | 22.74 mm |
| Pitch | 1.02 mm | Height | 7.92 mm |
| Length | 0.850" (21.59mm) | Packaging | Bulk |
| Shielding | Unshielded | Cable Type | Flat Oval Cable, Stranded Wires |
| Wire Gauge | 26-28 AWG | Orientation | Straight |
| Termination | Crimp | Housing Color | Clear |
| Mounting Type | Cable Mount | Angle of Throw | Straight |
| Connector Type | Modular Plug | Contact Finish | Gold |
| Mounting Style | Cable | Contact Material | Phosphor Bronze |
| Housing Material | Polycarbonate (PC) | Length - Overall | 11.79 mm |
| Primary Material | Modular | Number of Contacts | 8 POS |
| Contact Finish Thickness | 50µin (1.27µm) | Number of Positions/Bay/Row | 8C |
Product Info
| Type | Telephone/Telecom | Grade | Cat5 |
| Gender | PL | Series | AMP |
| USOC Codes | RJ45 | Performance | Cat3 |
| Specifications | RJ45 | Category Number | Cat 3 |
| Number of Ports | 1 | RF Family/Standard | 554739 |
| Performance Category | Cat 3 | Number of Positions Loaded | 8 |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) | ||
Environmental
| Ratings | Cat5 | Operating Temperature | -40C to 60C |
Documents & Media
Similar Parts

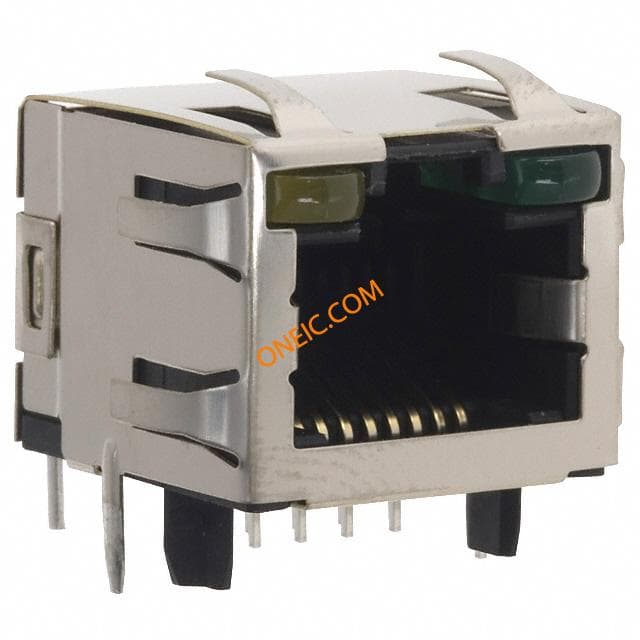

2-406549-1
