5-103975-4
| Manufacturer | |
| Description | Conn IDC Connector RCP 5 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECEPTACLE 5POS .100 15AU Conn IDC Connector RCP 5 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:HousingPreloadedNumber of Positions = 5Housing Type = ReceptacleContact Type = ReceptacleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 4X5 MTE RCPT SR PLAIN .100CL |
| Category |
Business
| Standard Package | 44 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Standards | CSA LR7189, UL E28476 |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage - Supply | 267 V | Contact Resistance | 15 mohm |
| Resistance - Input | 5000 | Connector Impedance | 刺破式压接 (IDC), 压接 |
| Current Rating (Max) | 3/Contact A | Voltage - Protection Rating (VPR) | 600 VAC |
Mechanical
| Color | Black | Depth | 15.24 mm |
| Pitch | 2.54 mm | Height | 2.49 mm |
| Length | 50.55 mm [ 1.99 in ] | Packaging | Tube |
| Wire Type | Ribbon Cable | Body Color | 黑色 |
| Wire Gauge | 22-26 AWG | Termination | IDT |
| Contact Type | Female Socket | 2nd Connector | Without |
| Housing Color | Black | Mounting Type | Free Hanging (In-Line) |
| Connector Type | Receptacle | Contact Finish | Gold Over Nickel |
| Mounting Style | Cable | Number of Rows | 1 |
| Insert Material | 磷青铜 | Operating Force | Standard |
| Contact Material | Phosphor Bronze | Housing Material | Thermoplastic |
| Length - Overall | 22.8 mm | Package Quantity | 44 |
| Panel Mount Type | 不带 | Cable Termination | IDC |
| Termination Style | 插座 | Number of Contacts | 5 |
| Insulation Diameter | 1.37 mm [ .054 in ] | Number of Positions | 5 |
| Compatible Shell Size | 与接头配合 | Mounting Hole Diameter | 不带 |
| Contact Layout, Typical | 同轴 | Contact Finish Thickness | 15µin (0.38µm) |
| Static Discharge Shielding | 带有 | ||
Product Info
| Note | 带状电缆带缺口把手 22-28 AWG, 气动终结器的最大绝缘直径为 1.14 [0.045]。 | Type | IDC Connector |
| Gender | RCP | Features | Closed End |
| Product Type | 连接器 | ||
Environmental
| Temperature - Test | 标准部件 - 非辉光导线 | Operating Temperature | -65C to 105C |
Similar Parts

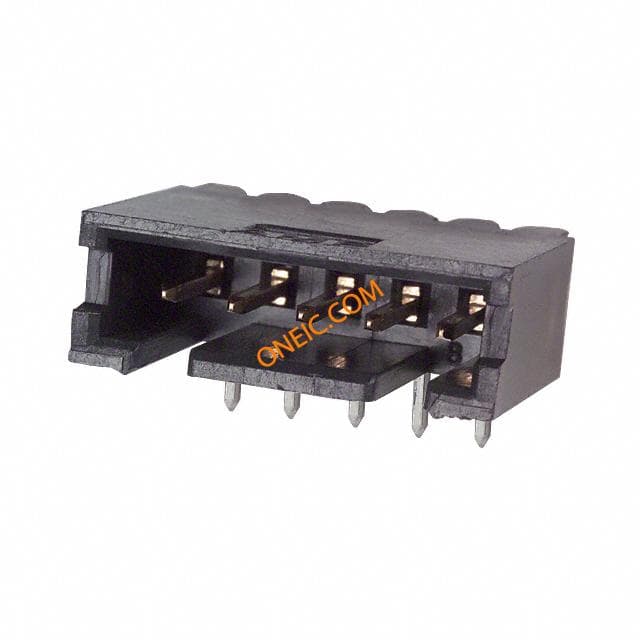

5-103361-3
te connectivity / amp
Conn Shrouded Header HDR 5 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER R/A .100 5POS 30AU TE Connectivity AMPMODU Series 2.54mm Pitch 5 Way 1 Row Right Angle PCB Header, Solder Termination, 3A Headers & Wire Housings HDR 1X05P R/A T/H Conn Shrouded Header HDR 5 POS 2.54mm Solder RA Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = SingleNumber of Positions = 5Mating Post Length = 6.10 mmSearch Keywords:board to board, AMPMODU, pcb connectors, AMPModuIIShroudedHdr,plug,r/a,SR,5w TE Connectivity AMPMODU Mod II 系列 2.54mm节距 5路 (1排) 直角 PCB 针座, 焊接端接, 3A , 通孔 05 MODII HDR SRRA SHRD LF
103414-3
te connectivity / amp
Conn Shrouded Header HDR 5 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 5POS 30AU Conn Shrouded Header HDR 5 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = SingleNumber of Positions = 5Mating Post Length = 6.10 mmSearch Keywords:board to board, AMPMODU, pcb connectors, MODUTHRUSRHDRSHRD,05MODIIHDRSRSTSHRD.100CL 05 MODII HDR SRST SHRD .100CL

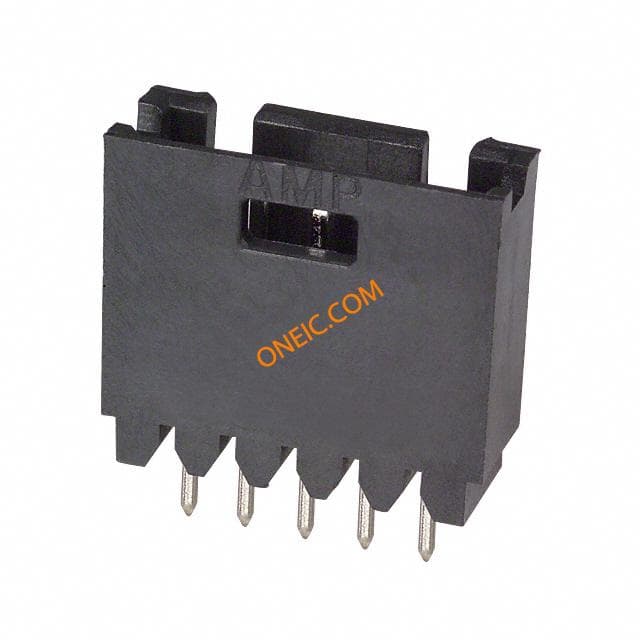

5-103080-3
te connectivity / amp
Conn Shrouded Header HDR 5 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Headers CONN HEADER VERT 5POS PCB TIN Headers & Wire Housings 05 HDR SRST SHROUDED .100 Conn Shrouded Header HDR 5 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Product Highlights:ConnectorConnector Type = Header - PinHeader Type = Shrouded5 PositionsMating Post Length = 6.10 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 05 MODII HDR SRST SHRD .100CL
103080-3
te connectivity / amp
Conn Shrouded Header HDR 5 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Headers CONN HEADER VERT 5POS PCB TIN Headers & Wire Housings SHROUDED VERT SNGL 5 with standoffs Conn Shrouded Header HDR 5 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = SingleNumber of Positions = 5Mating Post Length = 6.10 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 05 MODII HDR SRST SHRD .100CL
146281-5
te connectivity / amp
Conn Unshrouded Header HDR 5 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER BRKWAY 5POS 30GOLD
102203-2
te connectivity / amp
Conn Shrouded Header HDR 5 POS 2.54mm Solder RA Thru-Hole Gang of Tubes .100 inch AMPMODU Headers CONN HEADER R/A .100 5POS 15AU Conn Shrouded Header HDR 5 POS 2.54mm Solder RA Thru-Hole Gang of Tubes Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = SingleNumber of Positions = 5Mating Post Length = 6.10 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 05 MODII HDR SRRA SHRD .100CL

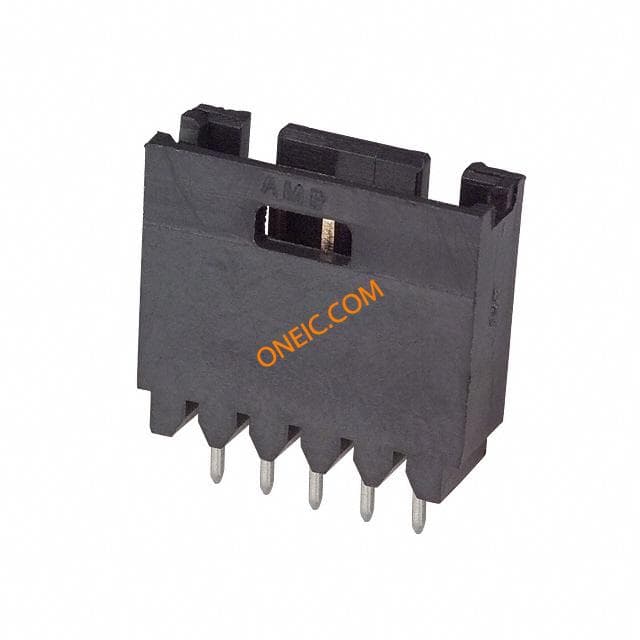

5-103414-3
