点击放大查看
5-103669-2
| Manufacturer | |
| Description | Conn Shrouded Header HDR 3 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT 3POS PCB TIN TE Connectivity MTE Series 2.54mm Pitch 3 Way 1 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings LTCHNG HDR W/SWAGE 3 Conn Shrouded Header HDR 3 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:ConnectorPreloadedHousing Gender = Header - PinContact Gender = Pin2.54 mm CenterlineSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR HEADER 3POS, 2.54MM Header;3;3A;600V;MTE(IDC);1;Vertical;0.100in.;5000Megohms;Brass TE Connectivity AMPMODU MTE 系列 2.54mm节距 3路 (1排) 直 PCB 针座, 焊接端接, 3A , 通孔 03 MTE HDR SRST LATCH W/HLDWN |
| Category |
Business
| Tradename | AMPMODU | Product Category | Headers & Wire Housings |
| Standard Package | Rail / Tube | Factory Pack Quantity | 52 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Approval Agency | CSA,UL | Material Flammability Rating | UL 94 V-0 |
Electrical
| Switch Function | Latched | Contact Resistance | 15 mohm |
| Current Rating (Max) | 3A | Insulation Resistance | 5000 MOhms |
Mechanical
| Color | Black | Depth | 6.98 mm |
| Pitch | 2.54 mm | Height | 13.59 mm |
| Weight | 0.0001 | Packaging | Tube |
| Row Spacing | 2.54 mm | Termination | Solder |
| Contact Type | Male Pin | Length - Pin | 0.13" |
| Housing Color | Black | Mounting Type | Through Hole |
| Angle of Throw | Straight | Connector Type | Header, Shrouded |
| Contact Finish | Tin Over Nickel | Mounting Style | Through Hole |
| Number of Rows | 1 | Contact Material | Brass |
| Housing Material | Thermoplastic | Length - Overall | 10.16 mm |
| Primary Material | InterconnectSystem | Pin Hole Diameter | 0.1" |
| Termination Style | Through Hole | 1st Contact Gender | Pin (Male) |
| Number of Contacts | 3 | Contact Termination | :Through Hole Vertical |
| Number of Positions | 3 | Mounting Hole Diameter | 0.04" |
| Contact Length - Mating | 0.230" (5.84mm) | Contact Finish Thickness | 100µin (2.54µm) |
Product Info
| Type | Shrouded Header | Gender | HDR |
| Series | MTE | Features | :Swaged Retention Tail |
| Manufacturer | AMPMODU/MTESeries | Product Type | Headers |
| Number of Positions Loaded | All | ||
Environmental
| Operating Temperature | - 65 C to + 105 C | ||
Similar Parts
103959-2
te connectivity / amp
Conn IDC Connector RCP 3 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 3POS .100 26-30 TIN Headers & Wire Housings 8X3 MTE RCPT SR LATCH .100CL 8X3 MTE RCPT SR LATCH .100CL
103969-2
te connectivity / amp
Conn IDC Connector RCP 3 POS 2.54mm IDT ST Cable Mount Strip Headers & Wire Housings 8X3 MTE RCPT SR RIBBED .100CL .100 AMPMODU Headers, Housings & Contacts CONN RECPT 3POS .100 22-26 15AU
5-103958-2
te connectivity / amp
Conn IDC Connector RCP 3 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECPT 3POS .100 POLAR 30AU MTE Housing,receptacle,IDC,3way Headers & Wire Housings RECEPTACLE ASSY 3P Conn IDC Connector RCP 3 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:Receptacle AssemblyWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 3Number of Rows = SingleTerminate To WireSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE, 3POS, 2.54MM MTERECPASSY,8X3MTERCPTSRLATCH.100CL TE Connectivity AMPMODU MTE 系列 3路 2.54mm节距 母 IDC 连接器 , 电缆安装 8X3 MTE RCPT SR LATCH .100CL
103648-2
te connectivity / amp
Conn Housing RCP 3 POS 2.54mm Crimp ST Cable Mount Headers & Wire Housings 03 MTE RCPT HSG SR R .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 3POS .100 UNLOADED Conn Housing RCP 3 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 3Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE, 3POS, 2 AMPMODU03MTERCPTHSGSRRIB.100CL TE Connectivity AMPMODU MTE 系列 3路 2.54mm节距 母 连接器 , 电缆安装 03 MTE RCPT HSG SR RIB .100CL
103960-2
te connectivity / amp
Conn IDC Connector RCP 3 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RCPT 3POS .100 26-30 15GOLD Headers & Wire Housings RCPT 3 POS 15 AU Conn IDC Connector RCP 3 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:HousingPreloadedNumber of Positions = 3Housing Type = ReceptacleContact Type = ReceptacleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 8X3 MTE RCPT SR LATCH .100CL

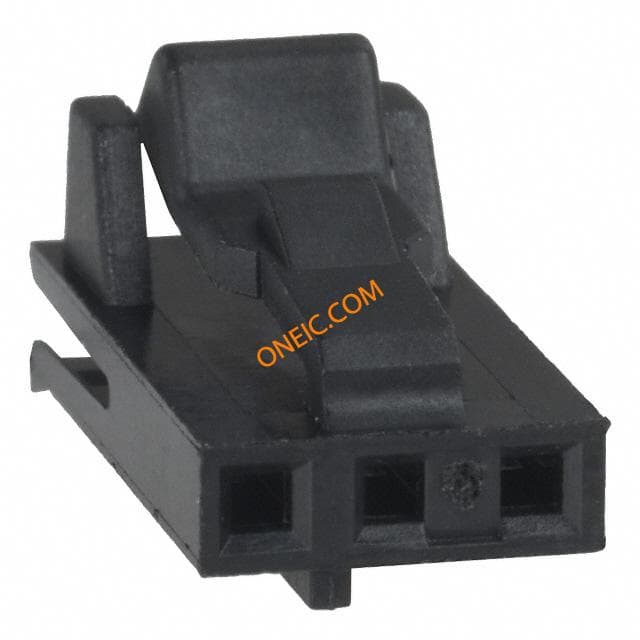

487526-2
