103957-2
| Manufacturer | |
| Description | Conn IDC Connector RCP 3 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECPT 3POS .100 POLAR 15AU Headers & Wire Housings RECEPTACLE ASSY 3P Conn IDC Connector RCP 3 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:Receptacle AssemblyWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 3Number of Rows = SingleTerminate To WireSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE MTERECPASSY,8X3MTERCPTSRLATCH.100CL 8X3 MTE RCPT SR LATCH .100CL |
| Category |
Business
| Tradename | AMPMODU | Product Category | Headers & Wire Housings |
| Standard Package | 72 | Factory Pack Quantity | 1 |
Compliance
| RoHS | Contains lead / RoHS non-compliant | Standard Number | CSA LR7189, UL E28476 |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage - Supply | 267 V | Contact Resistance | 15 mohm |
| Resistance - Input | 5000 | Connector Impedance | 刺破式压接 (IDC), 压接 |
| Current Rating (Max) | 3 A | Voltage - Supply (Min) | 600V |
| Voltage - Protection Rating (VPR) | 600 VAC | ||
Mechanical
| Color | Black | Depth | 15.24 mm |
| Pitch | 2.54 mm | Height | 5.08 mm [ .2 in ] |
| Length | 60.96 mm [ 2.4 in ] | Lock Type | 锁闩 |
| Packaging | Tube | Wire Type | Discrete or Ribbon Cable |
| Body Color | 黑色 | Cable Type | Discrete or Ribbon Cable |
| Wire Gauge | 22-26 AWG | Row Spacing | 2.54 mm |
| Termination | IDT | Contact Form | Female Socket |
| Contact Type | Female Socket | Housing Color | Black |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Receptacle |
| Contact Finish | Gold Over Nickel | Fastening Type | Latch Lock |
| Mounting Style | Wire | Number of Rows | 1 |
| Pressure (PSI) | 标准 | Insert Material | 磷青铜 |
| Contact Material | Phosphor Bronze | Housing Material | Thermoplastic |
| Length - Overall | 7.56 mm | Package Quantity | 72 |
| Panel Mount Type | 不带 | Primary Material | InterconnectSystem |
| Cable Termination | IDC | Termination Style | Crimp |
| 1st Contact Gender | Socket (Female) | Number of Contacts | 3 |
| Insulation Diameter | 1.37 mm [ .054 in ] | Number of Positions | 3 |
| Compatible Shell Size | 与接头配合 | Mounting Hole Diameter | 带有 |
| Contact Layout, Typical | 同轴 | Contact Finish Thickness | 15µin (0.38µm) |
| Static Discharge Shielding | 带有 | Contact Finish - Post (Mating) | 亮光 |
Product Info
| Note | 带状电缆带缺口把手 22-28 AWG, 气动终结器的最大绝缘直径为 1.14 [0.045]。 | Type | IDC Connector |
| Gender | RCP | Series | AMPMODU MTE |
| DELETED | Not Compliant | Features | Closed End |
| Main Purpose | Closed End | Manufacturer | AMPMODU/MTESeries |
| Product Type | Headers | Output Configuration | Free Hanging (In-Line) |
Environmental
| Temperature - Test | 标准部件 - 非辉光导线 | Operating Temperature | - 65 C to + 105 C |
Documents & Media
Similar Parts
5-103945-2
te connectivity / amp
Conn IDC Connector PIN 3 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN PLUG 3POS .100 POLAR 15AU Headers & Wire Housings PIN ASSEMBLY 3P Conn IDC Connector PIN 3 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:Pin AssembliesWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 3Number of Rows = SingleTerminate To WireSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR, PLUG, 3POS, 2.54MM AMPMODUHousing,5X3MTEShroudedPinAssy,SingleRow,.100,26-22AWG TE Connectivity AMPMODU MTE 系列 3路 2.54mm节距 电缆安装 公 IDC 连接器 5X3 MTE SHRD PIN SR LATCH .100
103906-2
te connectivity / amp
Conn Shrouded Header HDR 3 POS 2.54mm Solder RA Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER RT/A .100 3POS 30AU Headers & Wire Housings LATCHING HDR SHRD 3P w/o hold down Conn Shrouded Header HDR 3 POS 2.54mm Solder RA Thru-Hole Tube Product Highlights:HeaderNumber of Positions = 3Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 03 MTE HDR SRRA LATCH .100CL
103949-2
te connectivity / amp
Conn IDC Connector PIN 3 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN PLUG 3POS .100 26-30AWG Headers & Wire Housings 5X3 MTE SHRD PIN SR LATCH .100 .100 AMPMODU Headers, Housings & Contacts Product Highlights:HousingPreloadedNumber of Positions = 3Housing Type = PinContact Type = PinSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 5X3 MTE SHRD PIN SR LATCH .100
2-103669-9
te connectivity / amp
Conn Shrouded Header HDR 3 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT 3POS T/H TIN Headers & Wire Housings HDR VT 3POS T/H TIN .100 AMPMODU Headers, Housings & Contacts Product Highlights:ConnectorPreloadedHousing Gender = Header - PinContact Gender = Pin2.54 mm CenterlineSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 03 MTE HDR SRST LATCH W/HLDWN

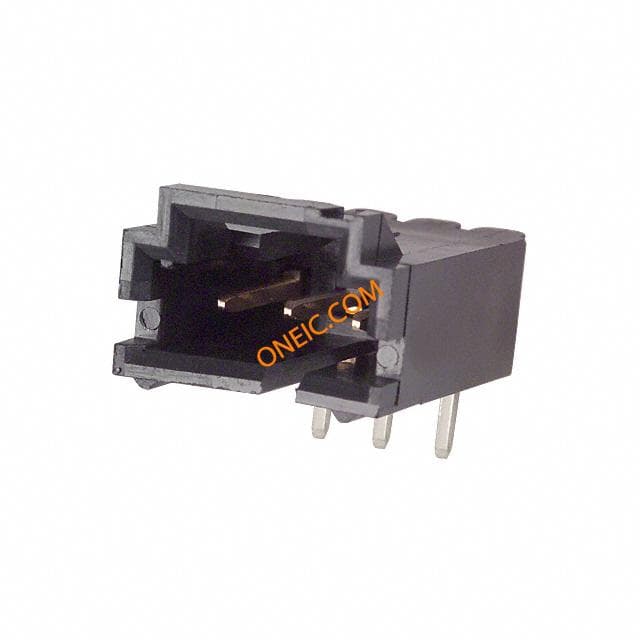

5-103635-2
te connectivity / amp
Conn Shrouded Header HDR 3 POS 2.54mm Solder RA Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER RT/A .100 3POS 15AU TE Connectivity MTE Series 2.54mm Pitch 3 Way 1 Row Right Angle PCB Header, Solder Termination, 3A Headers & Wire Housings LATCHING HDR SHRD 3P w/o hold down Conn Shrouded Header HDR 3 POS 2.54mm Solder RA Thru-Hole Tube Product Highlights:HeaderNumber of Positions = 3Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE Connector Type:Wire-to-Board AMPMODUMTER/AHDAY,03MTEHDRSRRALTCH.100CLLF TE Connectivity AMPMODU MTE 系列 3路 2.54mm节距 (1排) 直角 PCB 针座 , 焊接端接, 3A, 通孔 03 MTE HDR SRRA LTCH.100CL LF
104348-1
te connectivity / amp
Conn Unshrouded Header HDR 3 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER 3POS R/A GOLD

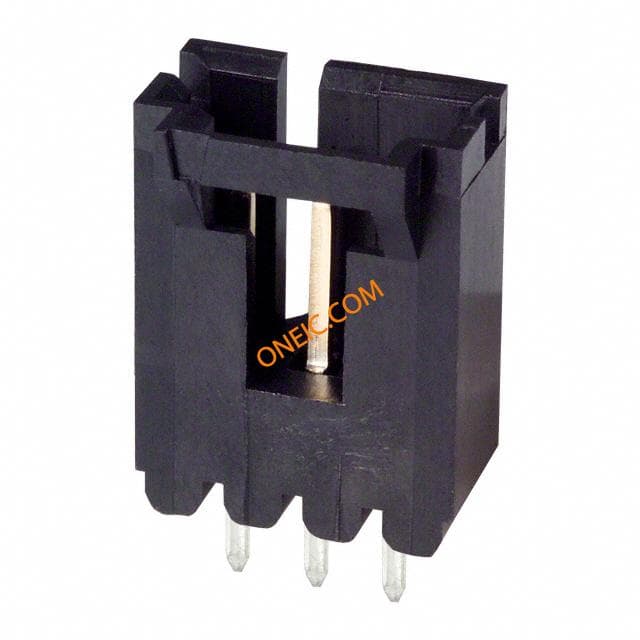

5-103735-2
te connectivity / amp
Conn Shrouded Header HDR 3 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT .100 3POS 30AU TE Connectivity MTE Series 2.54mm Pitch 3 Way 1 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings LTCH HDR W/O SWAGE 3 Conn Shrouded Header HDR 3 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:ConnectorConnector Type = Header - Pin2.54 mm CenterlineRow-to-Row Spacing = 2.54 mm3 PositionsSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR HEADER 3POS, 2.54MM MTEHEADERASSY,03MTEHDRSRSTLATCH.100CL TE Connectivity AMPMODU MTE 系列 2.54mm节距 3路 (1排) 直 PCB 针座, 焊接端接, 3A , 通孔 03 MTE HDR SRST LATCH .100CL
103638-2
te connectivity / amp
Conn Shrouded Header HDR 3 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT .100 3POS 15AU Header 3 way pin 2.54mm IDC AmpModu Headers & Wire Housings LTCH HDR W/O SWAGE 3 Conn Shrouded Header HDR 3 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:HeaderWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 3Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE Header;Shrouded;Vertical;Brass;Thermoplastic;3;0.1in.;Gold;0.025in. 03 MTE HDR SRST LATCH .100CL
103669-2
te connectivity / amp
Conn Shrouded Header HDR 3 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT 3POS PCB TIN Headers & Wire Housings LTCHNG HDR W/SWAGE 3 Conn Shrouded Header HDR 3 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:HeaderNumber of Positions = 3Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE Header;3;3A;600V;MTE(IDC);1;Vertical;0.100in.;5000Megohms;Brass 03 MTE HDR SRST LATCH W/HLDWN
146282-3
te connectivity / amp
Conn Unshrouded Header HDR 3 POS 2.54mm Solder ST Thru-Hole Headers & Wire Housings 3P BRKAWAY VERT HDR 1000 .100 inch AMPMODU Headers CONN HEADER B/A 3POS SL PCB TIN 03 MODII HDR SRST B/A .100CL 03 MODII HDR SRST B/A .100CL Search Keywords:board to board, AMPMODU, pcb connectors,
103946-2
te connectivity / amp
Conn IDC Connector PIN 3 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN PLUG 3POS .100 POLAR 30AU Conn IDC Connector PIN 3 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:Pin AssembliesWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 3Number of Rows = SingleTerminate To WireSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 5X3 MTE SHRD PIN SR POL .100CL
103951-2
te connectivity / amp
Conn IDC Connector PIN 3 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN PLUG 3POS .100 22-26 15AU Headers & Wire Housings 5X3 MTE PIN SR RIBBED .100CL 5X3 MTE PIN SR RIBBED .100CL 5X3 MTE PIN SR RIBBED .100CL Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE
103950-2
TE Connectivity / AMP
Headers & Wire Housings OBSOLETE .100 AMPMODU Headers, Housings & Contacts CONN PLUG 3POS .100 POLAR TIN Conn IDC Connector PIN 3 POS 2.54mm IDT ST Cable Mount Strip
146278-3
TE Connectivity / AMP
Headers & Wire Housings OBSOLETE .100 inch AMPMODU Headers CONN HEADER BRKWAY 3POS SGL .100

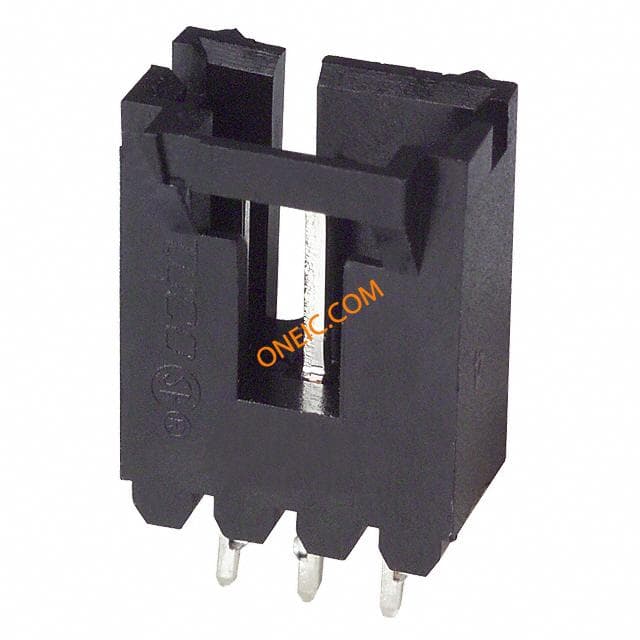

5-103669-2
te connectivity / amp
Conn Shrouded Header HDR 3 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT 3POS PCB TIN TE Connectivity MTE Series 2.54mm Pitch 3 Way 1 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings LTCHNG HDR W/SWAGE 3 Conn Shrouded Header HDR 3 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:ConnectorPreloadedHousing Gender = Header - PinContact Gender = Pin2.54 mm CenterlineSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR HEADER 3POS, 2.54MM Header;3;3A;600V;MTE(IDC);1;Vertical;0.100in.;5000Megohms;Brass TE Connectivity AMPMODU MTE 系列 2.54mm节距 3路 (1排) 直 PCB 针座, 焊接端接, 3A , 通孔 03 MTE HDR SRST LATCH W/HLDWN
103948-2
te connectivity / amp
Conn IDC Connector PIN 3 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN PLUG 3POS .100 22-26 15AU Headers & Wire Housings POL SHROUD PIN ASSY 660 5X3 MTE SHRD PIN SR LATCH .100
4-103765-0-03
TE Connectivity
CONN HEADR BRKWAY .100 03POS R/A
9-146280-0-03
TE Connectivity
CONN HEADR BRKWAY .100 03POS STR
4-103741-0-03
TE Connectivity
CONN HEADR BRKWAY .100 03POS STR

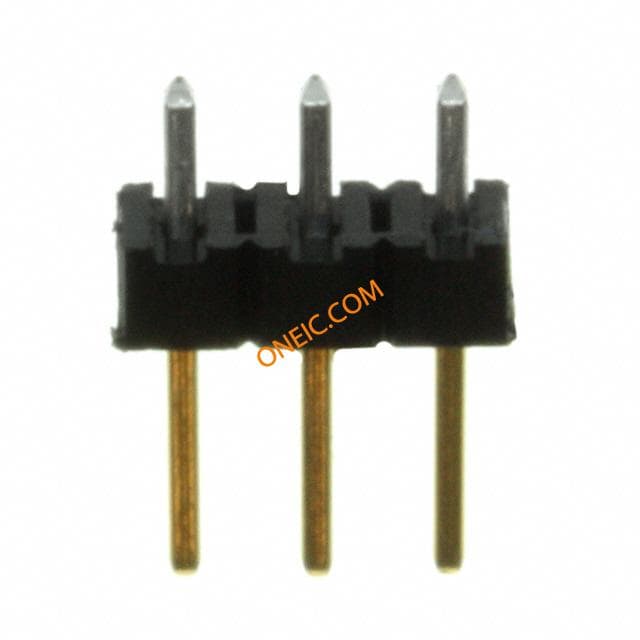

4-103239-0-03
