5-103361-8
| Manufacturer | |
| Description | Conn Shrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER R/A .100 10POS 30AU TE Connectivity AMPMODU Series 2.54mm Pitch 10 Way 1 Row Right Angle PCB Header, Solder Termination, 3A Headers & Wire Housings SHROUDED RA SNGL 10 with standoffs Conn Shrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Search Keywords:board to board, AMPMODU, pcb connectors, 2.54mm,Header,shrd,SR,10W,90°,Sn TE Connectivity AMPMODU Mod II 系列 2.54mm节距 10路 (1排) 直角 PCB 针座, 焊接端接, 3A , 通孔 10 MODII HDR SRRA SHRD LF |
| Category |
Business
| Tradename | AMPMODU | Other Names | A32558 |
| Product Category | Headers & Wire Housings | Standard Package | Rail / Tube |
| Factory Pack Quantity | 18 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Standards | CSA LR7189, UL E28476 |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Connector Impedance | 带有 | Current Rating (Max) | 3A |
| Insulation Resistance | 5000 MOhms | Voltage - Protection Rating (VPR) | 750 Vrms |
Mechanical
| Color | Black | Depth | 13.94 mm |
| Pitch | 2.54 mm | Height | 5.82 mm |
| Base Type | 带有 | Packaging | Tube |
| Body Color | 黑色 | End - Size | 1.778 mm [ .07 in ] |
| Lead Style | 直角 | Orientation | 直角 |
| Row Spacing | 2.54 mm | Stabilizers | Without |
| Termination | Solder | Contact Type | Male Pin |
| 1st Connector | 否 | 2nd Connector | Without |
| Housing Color | Black | Mounting Type | Through Hole, Right Angle |
| Connector Type | Header, Shrouded | Contact Finish | Gold Over Nickel |
| Mounting Style | Through Hole | Number of Rows | 1 |
| Shell Material | 4- 面 | Insert Material | 磷青铜 |
| Contact Material | Phosphor Bronze | Housing Material | Thermoplastic |
| Length - Overall | 28.45 mm | Package Quantity | 18 |
| Panel Mount Type | 通孔 | Primary Material | Connector |
| Termination Rows | 焊接 | Termination Style | Through Hole |
| 1st Contact Gender | Pin (Male) | Diameter - Outside | .64 mm [ .025 in ] |
| Number of Contacts | 10 | Termination Finish | 带罩 |
| Number of Positions | 10 | Length - Post (Mating) | 6.1 mm |
| Mounting Hole Diameter | 带有 | Contact Length - Mating | 0.240" (6.10mm) |
| Termination Post Length | 2.79 mm | Contact Finish Thickness | 30µin (0.76µm) |
| Static Discharge Shielding | 不带 | Termination Finish Thickness | 100 – 200 |
Product Info
| Type | Shrouded Header | Gender | HDR |
| Series | AMPMODU | Coverage | 覆盖 |
| Key Type | 否 | Manufacturer | AMPMODU |
| Product Type | Headers | Selectively Loaded | No |
| Number of Positions Loaded | All | ||
Environmental
| Seal Rating | 不带 | Temperature | No |
| Operating Temperature | - 55 C to + 105 C | Thermal Resistance of Package | 1.397 mm [ .055 in ] |
Documents & Media
Similar Parts
102241-8
te connectivity / amp
Conn Housing RCP 10 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 10POS .100 POLAR 2.54mm,housing,10W,Mod IV,SR,snap in Headers & Wire Housings POLARIZED HSG 10 SNL detent latching Conn Housing RCP 10 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 10Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE RECEPTACLE,AMPMODU,MODIV,10POSITION,.100IN,SINGLEROW,LATCHED AMPMODU 10 Position Single Row 2.54 mm Pitch Unloaded Socket Latching Housing Crimp housing Pitch2.54 mm Poles 10 Single row / straight / with polarization / with detent latching AMPMODU MOD IV, 102241-8, TE Connectivity TE Connectivity AMPMODU Mod IV 系列 1 行 2.54mm 节距 10 路 直 母 电缆安装 PCB 壳体 10 MODIV HSG COMP SR .100 POL
103975-9
te connectivity / amp
Conn IDC Connector RCP 10 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECEPTACLE 10POS .100 15AU Headers & Wire Housings 2X10 RCPT SR PLAIN .100CL 2X10 MTE RCPT SR PLAIN .100CL 2X10 MTE RCPT SR PLAIN .100CL Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE
103688-9
te connectivity / amp
Conn Housing RCP 10 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPTACLE 10POS .1" UNLOAD Headers & Wire Housings 10 MTE RCPT HSG SR P Conn Housing RCP 10 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 10Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 10 MTE RCPT HSG SR PLAIN .100
103976-9
te connectivity / amp
Conn IDC Connector RCP 10 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECEPTACLE 10POS .100 30AU Headers & Wire Housings 2X10 RCPT SR PLAIN .100CL .100 AMPMODU Headers, Housings & Contacts Product Highlights:ConnectorHousingConnector Style = ReceptacleContact Type = Receptacle2.54 mm CenterlineSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 2X10 MTE RCPT SR PLAIN .100CL
5-103976-9
te connectivity / amp
Conn IDC Connector RCP 10 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECEPTACLE 10POS .100 30AU Headers & Wire Housings 2X10 RCPT SR PLAIN .100CL 2X10 MTE RCPT SR PLAIN .100CL 2X10 MTE RCPT SR PLAIN .100CL Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE
5-103975-9
te connectivity / amp
Conn IDC Connector RCP 10 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECEPTACLE 10POS .100 15AU 2X10 MTE RCPT SR PLAIN .100CL 2X10 MTE RCPT SR PLAIN .100CL Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE

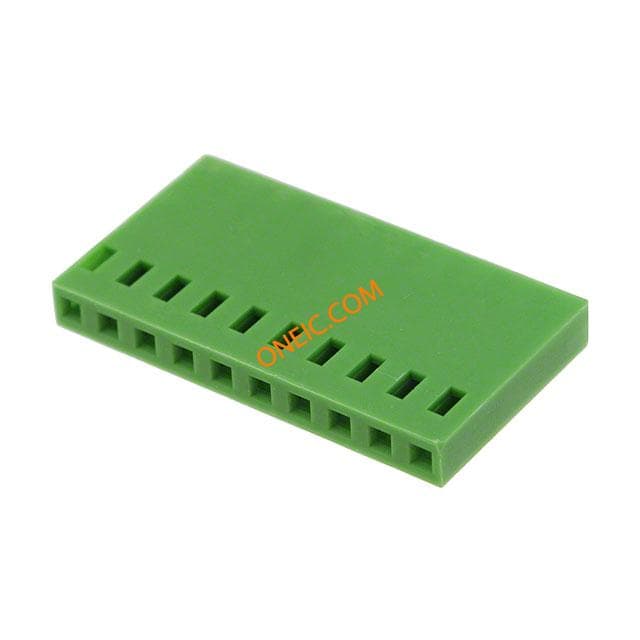

1-925366-0
te connectivity / amp
Conn Housing RCP 10 POS 2.54mm Crimp ST Cable Mount AMPMODU Mod IV, V MOD 4 REC.HSG 1X10P 10way 1row unshrouded crimp socket shell Headers & Wire Housings 1X10 POS RECPT W/O STRAIN RELIEF Conn Housing RCP 10 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 10Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE RECEPTACLE, 10WAY 10WSOCKETSHELL Crimp housing Pitch2.54 mm Poles 10 Single row / straight / without strain relief AMPMODU MOD IV, 1-925366-0, TE Connectivity TE Connectivity AMPMODU Mod IV 系列 2.54mm 节距 10 路 直 母 PCB 壳体
104439-9
TE Connectivity / AMP
Headers & Wire Housings OBSOLETE .100 AMPMODU Headers, Housings & Contacts CONN RCPT 10POS .100 22-26 30AU

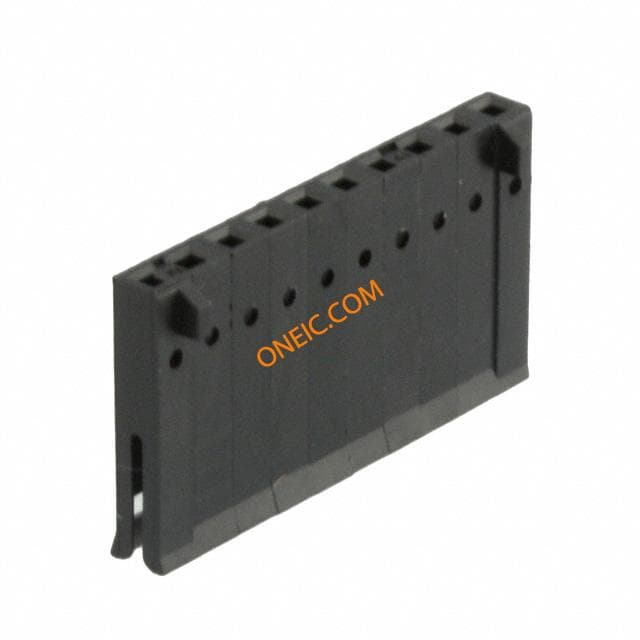

487769-8
