103688-9
| Manufacturer | |
| Description | Conn Housing RCP 10 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPTACLE 10POS .1" UNLOAD Headers & Wire Housings 10 MTE RCPT HSG SR P Conn Housing RCP 10 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 10Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 10 MTE RCPT HSG SR PLAIN .100 |
| Category |
Business
| Tradename | AMPMODU | Other Names | A28382 |
| Product Category | Headers & Wire Housings | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Voltage - Supply | 600 VAC | Resistance - Input | 5000 |
| Connector Impedance | 刺破式压接 (IDC), 压接 | Current Rating (Max) | 3 A |
| Voltage - Protection Rating (VPR) | 600 V | ||
Mechanical
| Color | Black | Pitch | 2.54 mm |
| Height | .25 mm [ .098 in ] | Length | 2.53 mm [ .998 in ] |
| Lock Type | 不带 | Packaging | Bulk |
| Body Color | 黑色 | Wire Gauge | 22-30 AWG |
| Row Spacing | 2.54 mm | Contact Type | Female Socket |
| 2nd Connector | Without | Housing Color | Black |
| Mounting Type | Straight | Connector Type | Crimp, Insulation Displacement Crimp (IDC) |
| Mounting Style | Wire | Number of Rows | 1 |
| Package / Case | Receptacle | Insert Material | 磷青铜 |
| Contact Material | Copper Alloy | Housing Material | Thermoplastic |
| Package Quantity | 1 | Panel Mount Type | 不带 |
| Termination Style | Crimp | 1st Contact Gender | Socket (Female) |
| Mating Orientation | Without | Number of Contacts | 10 |
| Contact Termination | Crimp | Number of Positions | 10 |
| Compatible Shell Size | 压接扣入式接触件 | Mounting Hole Diameter | 不带 |
| Center Contact Material | 2.54 [.100] | Contact Layout, Typical | 同轴 |
| Static Discharge Shielding | 不带 | ||
Product Info
| Note | Refer to AMPMODU contacts for crimp snap-in replacement receptacle or pin conta | Type | Housing |
| Gender | RCP | Series | MTE |
| Preloaded | No | Coded, Keyed | No |
| Product Type | Housing | ||
Environmental
| Temperature - Test | 标准部件 - 非辉光导线 | Operating Temperature | -65 – 105 |
Documents & Media
Similar Parts

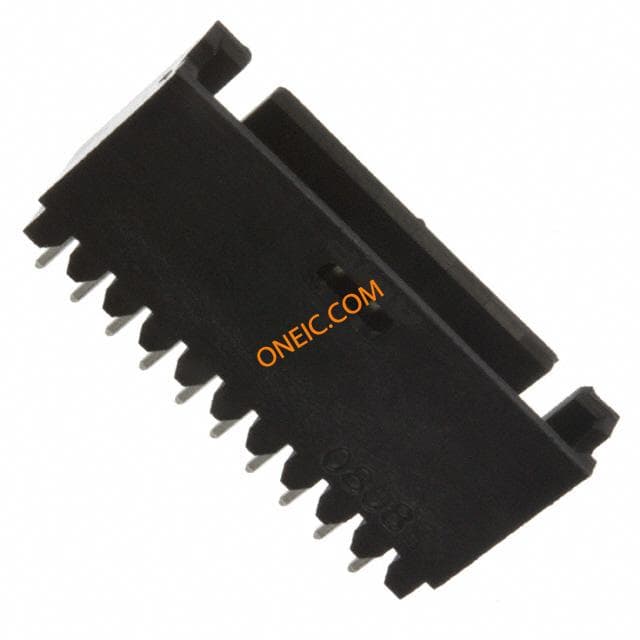

5-103080-8
te connectivity / amp
Conn Shrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Headers CONN HEADER VERT 10POS PCB TIN Headers & Wire Housings 10P HDR SRST SHRD 10 MODII HDR SRST SHRD .100CL 10 MODII HDR SRST SHRD .100CL Search Keywords:board to board, AMPMODU, pcb connectors,
1-146282-0
te connectivity / amp
Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADR BRKWAY .100 10POS STR Headers & Wire Housings 10 MODII HDR SRST B/A .100CL Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Tube Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:HeaderHeader Type = BreakawayNumber of Rows = SingleNumber of Positions = 10Mating Post Length = 5.84 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 10 MODII HDR SRST B/A .100CL
104347-8
te connectivity / amp
Conn Unshrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Headers & Wire Housings 10 MODII HDR SRRA B/A W/HLDWN .100 inch AMPMODU Headers CONN HEADER 10POS R/A GOLD .100 inch AMPMODU Headers Product Highlights:HeaderHeader Type = StandardNumber of Rows = SingleNumber of Positions = 10Mating Post Length = 5.84 mm
103414-8
te connectivity / amp
Conn Shrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 10POS 30AU TE Connectivity AMPMODU Series 2.54mm Pitch 10 Way 1 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings SHROUDED VER SNGL 10 with standoffs Conn Shrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = SingleNumber of Positions = 10Mating Post Length = 6.10 mmSearch Keywords:board to board, AMPMODU, pcb connectors, TE Connectivity AMPMODU 系列 2.54mm节距 10路 (1排) 直 PCB 针座, 焊接端接, 3A 10 MODII HDR SRST SHRD .100CL
5-102523-8
te connectivity / amp

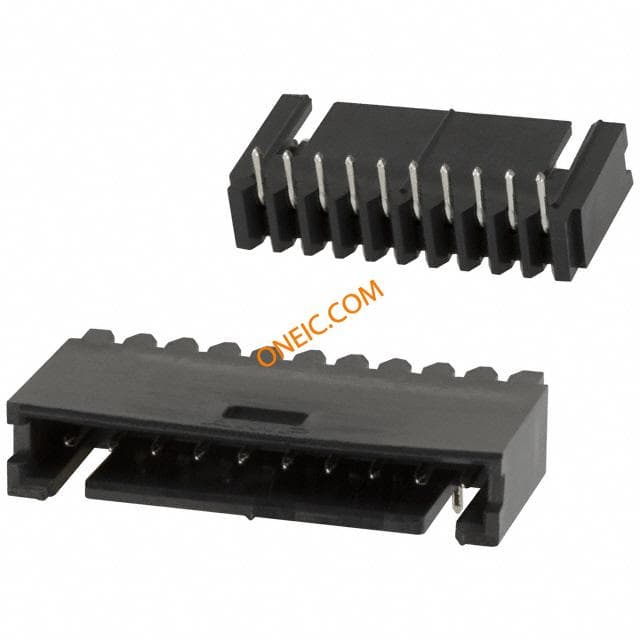

Conn Shrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER RTANG 10POS PCB TIN 10 MODII HDR SRRA SHRD .100CL 10 MODII HDR SRRA SHRD .100CL Search Keywords:board to board, AMPMODU, pcb connectors,
