点击放大查看
5-103168-6
| Manufacturer | |
| Description | Conn Shrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 16POS 30AU Headers & Wire Housings SHROUDED VER DUAL 16 detent windows Conn Shrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 16Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, HEADER, VERTICAL, 2ROW, 16WAY Header,ThroughHole;Shrouded;Vertical;PhosphorBronze;Thermoplastic;16 16 MODII HDR DRST SHRD .100CL |
| Category |
Business
| Tradename | AMPMODU | Product Category | Headers & Wire Housings |
| Standard Package | Trays | Factory Pack Quantity | 208 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85366930 |
| Leadfree Defin | Wave solder capable to 240°C | Approval Agency | :CSA, UL |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Range deg/s | :TE - AMPMODU Mod II Series | Voltage Rating | :250V |
| Switch Function | Detent Windows | Voltage - Working | :250V |
| Current Rating (Max) | 3/Contact A | Insulation Resistance | :500Mohm |
Mechanical
| Color | Black | Depth | 10.16 mm |
| Pitch | 2.54 mm | Height | 11.18 mm |
| Weight | 0.002 | Packaging | Tray |
| Row Spacing | 0.100" (2.54mm) | Termination | Solder |
| Contact Type | Male Pin | Lead Spacing | :2.54mm |
| Length - Pin | 0.125" | 1st Connector | No |
| 2nd Connector | With | Contact Shape | Square |
| Housing Color | Black | Mounting Type | Vertical |
| Angle of Throw | Straight | Connector Type | Shrouded |
| Contact Finish | Gold Over Nickel | Fastening Type | Detent Lock |
| Mounting Style | Through Hole | Number of Rows | 2 |
| Package / Case | 4-Sided | Locking Feature | Detent Windows |
| Profile (W x H) | Standard | Contact Material | Phosphor Bronze |
| Housing Material | Thermoplastic | Length - Overall | 1.68 [0.066] |
| Mounting Feature | Without | Panel Mount Type | Without |
| Primary Material | InterconnectSystem | Size / Dimension | 0.64 [.025] |
| Pin Hole Diameter | 0.1" | Termination Style | Through Hole |
| 1st Contact Gender | Pin (Male) | Number of Contacts | 16 |
| Contact Termination | :Through Hole Vertical | Number of Positions | 16 |
| Length - Post (Mating) | 8.08 mm | Mounting Hole Diameter | 0.035" |
| Center Contact Material | 2.54 x 2.54 [.100 x .100] | Contact Length - Mating | 8.08 [0.318] |
| Surface Mount Land Size | No | Termination Post Length | 3.18 [0.125] |
| Contact Finish Thickness | 30µin (0.76µm) | ||
Product Info
| Type | Shrouded Header | Gender | HDR |
| Series | AMPMODU MOD II | Features | Shrouded |
| Manufacturer | AMP | Product Type | Header |
| Selectively Loaded | No | Number of Positions Loaded | All |
Environmental
| Temperature | No | Operating Temperature | -55 â +105 |
Documents & Media
Similar Parts
102694-6
te connectivity / amp
Conn IDC Connector RCP 16 POS 2.54mm IDT ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 16POS .100 IDC GOLD
534206-8
te connectivity / amp
Conn Socket Strip SKT 16 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RECEPT 16POS .100 VERT DUAL Headers & Wire Housings REC 2X08P VRT T/H Conn Socket Strip SKT 16 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Product Highlights:ReceptacleMod IINumber of Positions = 16Number of Rows = DualStandard ProfileSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, VERTIIDRCERECASY,16MODIIVRTDRCE100/115 16 Position Dual Row 2.54 mm Vertical Through Hole Receptacle Mod II Connector 16 MODII VRT DR CE 100/115
87922-4
te connectivity / amp
Conn Housing RCP 16 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSNG 16POS .100 POL W/STR Headers & Wire Housings HSG 2X08C F/H POL Conn Housing RCP 16 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 16Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE RECEPTACLE,AMPMODU,MODIV,16POSITION,.100IN,DUALROW,STRAINRELIEF,MARK 16 MODIV HSG W/STR RLF DR MRKD

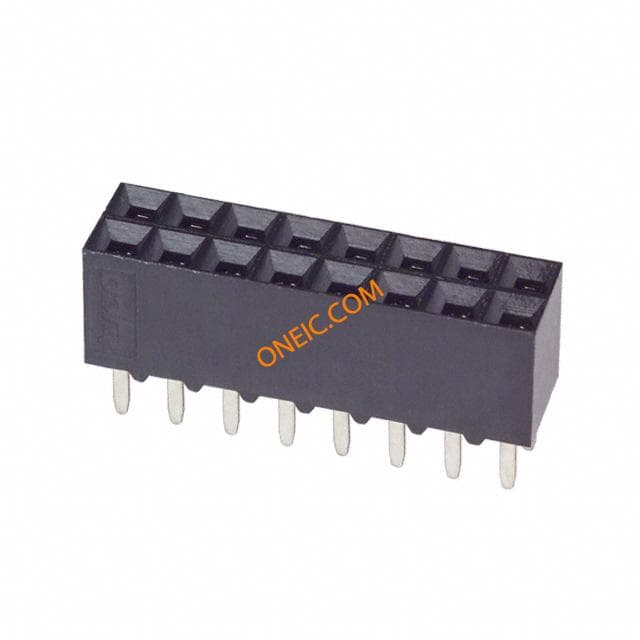

534998-8
te connectivity / amp
Conn Socket Strip RCP 16 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RECEPT 16POS .100 VERT DUAL Headers & Wire Housings 16P MODIV RECEPTACLE 1680 Conn Socket Strip RCP 16 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Search Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, 16 MODIV VRT DR CE 100/125
1-87631-1
te connectivity / amp
Conn Housing RCP 16 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 16POS .100 POL DUAL Headers & Wire Housings RECEPTACLE 16 POS Conn Housing RCP 16 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 16Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE RECEPTACLE,AMPMODU,MODIV,16POSITION,.100IN,DUALROW,LATCHED TE Connectivity AMPMODU Mod IV 系列 2 行 2.54mm 节距 16 路 直 母 电缆安装 PCB 连接器外壳 16 MODIV HSG COMP DR .100 POL
5-102448-6
te connectivity / amp
Conn IDC Connector RCP 16 POS 2.54mm IDT ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 16POS .100 IDC GOLD
102394-6
te connectivity / amp
Conn Housing RCP 16 POS 2.54mm IDT ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RCPT AMP MODU 16 DR .100CL Headers & Wire Housings 16P RCPT DR .100CL Conn Housing RCP 16 POS 2.54mm IDT ST Cable Mount Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 16 AMP MODU MT HSG DR .100CL
102448-6
te connectivity / amp
Conn IDC Connector RCP 16 POS 2.54mm IDT ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 16POS .100 IDC GOLD Headers & Wire Housings HSG DUAL 16P 22-20 16 AMPMODU MT ASSY DR .100CL 16 AMPMODU MT ASSY DR .100CL Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE
102393-6
te connectivity / amp
Conn IDC Connector RCP 16 POS 2.54mm IDT ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 16POS .100 IDC GOLD Headers & Wire Housings HSG DUAL 16P 30-26 Conn IDC Connector RCP 16 POS 2.54mm IDT ST Cable Mount Product Highlights:Receptacle AssemblyWire Termination Type = Insulation Displacement Crimp (IDC)Number of Positions = 16Number of Rows = DualTerminate To WireSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 16 AMPMODU MT ASSY DR .100CL
5-534998-8
te connectivity / amp
Conn Socket Strip RCP 16 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RECEPT 16POS .100 VERT DUAL TE Connectivity Mod IV Series 2.54mm 16 Way 2 Row Straight PCB Socket Through Hole Board to Board Headers & Wire Housings REC 2X08P VRT T/H Conn Socket Strip RCP 16 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Product Highlights:ReceptacleMod IVNumber of Positions = 16Number of Rows = DualLow ProfileSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, BOARD-BOARD CONNECTOR RECEPTACLE, 16WAY, 2ROW VERTIVDRCERECASY,16MODIVVRTDRCE100/125 TE Connectivity AMPMODU Mod IV 系列 2行 16路 直 2.54mm节距 通孔 印刷电路板插座, 板对板 16 MODIV VRT DR CE 100/125
535598-8
te connectivity / amp
Conn Socket Strip SKT 16 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Receptacles CONN RCPT 16POS .100 DUAL T/H AU Headers & Wire Housings 16 MODIV VRT DR CE RCPT ASSY Conn Socket Strip SKT 16 POS 2.54mm Solder ST Thru-Hole Search Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, 16 MODIV VRT DR CE RCPT ASSY
5-102393-6
te connectivity / amp
Conn IDC Connector RCP 16 POS 2.54mm IDT ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 16POS .100 IDC GOLD Headers & Wire Housings HSG DUAL 16P 30-26 Conn IDC Connector RCP 16 POS 2.54mm IDT ST Cable Mount Product Highlights:HousingPreloadedNumber of Positions = 16Housing Type = ReceptacleContact Type = ReceptacleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 16 AMPMODU MT ASSY DR.100CL SN

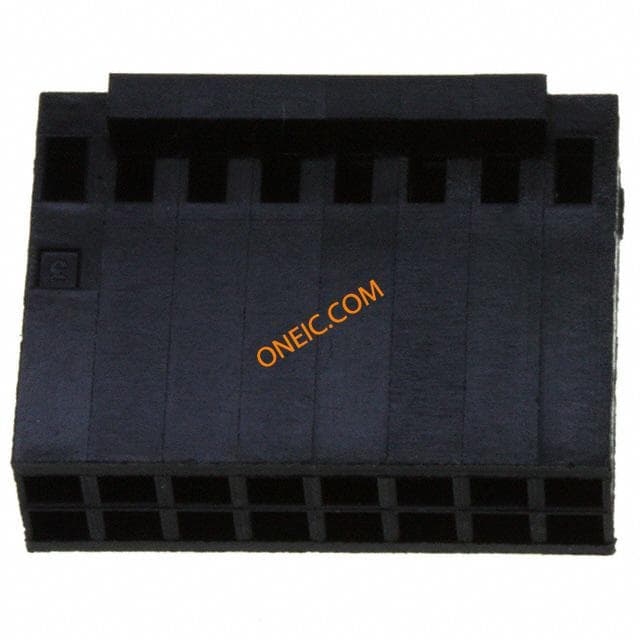

3-87977-3
