413985-4
| Manufacturer | |
| Description | Conn SMB PL 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Gold Over Nickel SMB RF Connectors CONN SMB PLUG STR 50 OHM CRIMP RF Connectors / Coaxial Connectors PLUG NICKEL 50 OHM Conn SMB PL 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Gold Over Nickel Product Highlights:ConnectorPlugStandardTerminate To Coaxial CableCoupler Style = Quick Connect/DisconnectSearch Keywords:RF, MIL-C-39012, BS9210 F0022, subminiature, PLUG ASSY,STR,SMB |
| Category |
Business
| Product | Connectors | Product Category | RF Connectors / Coaxial Connectors |
| Standard Package | Bulk | Factory Pack Quantity | 100 |
Compliance
| RoHS | Lead free / RoHS Compliant | Rad Hardened | No |
Electrical
| Frequency | 0 to 4 GHz | Impedance | 50 Ohm |
| Coupling Factor | 卡扣固定 | Frequency - Max | 4GHz |
| Connector Impedance | 压接 | Impedance (Max) (Zzt) | 50 |
| Insulation Resistance | 1000 MOhms | ||
Mechanical
| Shape | 圆形 | Diameter | 6.35 mm |
| Packaging | Bulk | Cable Type | RG-174, RG-188, RG-316 |
| Body Finish | Nickel | Cable Group | RG-174, 188, 316 (Double Braid) |
| Orientation | Straight | Termination | Crimp |
| Body Material | Brass | Mounting Type | Cable Mount |
| Connector Type | Plug, Female Socket | Contact Finish | Gold Over Nickel |
| Fastening Type | Snap-On | Mounting Style | Cable |
| Plating - Body | Nickel Over Copper | Connector Style | SMB |
| Contact Material | Brass | Length - Overall | 23.82 mm |
| Primary Material | 黄铜 | Termination Style | Crimp |
| Shield Termination | Crimp | Contact Termination | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Insulation Material | Teflon |
| Center Contact Finish | 镍打底镀金 | Terminal Screw Finish | 镍打底镀金 |
| Center Contact Plating | Gold | Center Contact Material | Beryllium Copper |
| Supplier Device Package | Straight | 1st Connector Orientation | 直式 |
| Outside Pipe Diameter (Max) | 4.75 mm [ .187 in ] | ||
Product Info
| Type | SMB | Grade | 军用类型 |
| Gender | PL | Polarity | Standard |
| Connection Type | Coaxial Cable | RF Family/Standard | 413985 |
| Other Specifications | 无焊 | ||
Environmental
| Operating Temperature | - 65 C to + 165 C | ||
Documents & Media
Similar Parts
1060464-1
te connectivity / amp

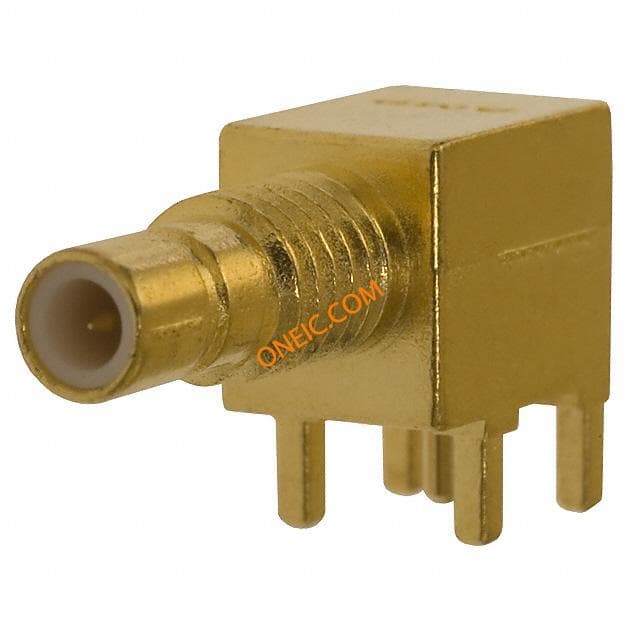

Conn SMB RCP 50Ohm Solder RA Thru-Hole Gold SMB RF Connectors CONN SMB JACK R/A 50 OHM PCB Conn SMB RCP 50Ohm Solder RA Thru-Hole Gold Product Highlights:ConnectorJackStandardTerminate To Printed Circuit BoardCoupler Style = Quick Connect/DisconnectSearch Keywords:RF, MIL-C-39012, BS9210 F0022, subminiature, 5164 5003 09
