1060464-1
| Manufacturer | |
| Description | Conn SMB RCP 50Ohm Solder RA Thru-Hole Gold SMB RF Connectors CONN SMB JACK R/A 50 OHM PCB Conn SMB RCP 50Ohm Solder RA Thru-Hole Gold Product Highlights:ConnectorJackStandardTerminate To Printed Circuit BoardCoupler Style = Quick Connect/DisconnectSearch Keywords:RF, MIL-C-39012, BS9210 F0022, subminiature, 5164 5003 09 |
| Category |
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Leadfree Defin | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHSELV Compliance | RoHS compliant, ELV compliant |
Electrical
| Impedance | 50 Ohm | Frequency - Max | 4GHz |
| Connector Impedance | 50 | ||
Mechanical
| Depth | 13.34 | Shape | 正方形 |
| Height | 7.03 | Packaging | Bulk |
| Body Finish | Gold | Termination | Solder |
| Coupler Type | Quick Connect/Disconnect | Body Material | Brass |
| Mounting Type | Through Hole | Connector Type | Without |
| Contact Finish | Gold | Fastening Type | Snap-On |
| Mounting Style | Thru Hole | Plating - Body | Gold |
| Connector Style | SMB | Profile (W x H) | Standard |
| Contact Material | Brass | Length - Overall | 6.35 |
| Panel Mount Type | Without | Primary Material | 黄铜 |
| Number of Contacts | With | Shield Termination | Solder |
| Contact Termination | Solder | Dielectric Material | PTFE Fluorocarbon |
| Insulation Material | Polytetrafluoroethylene Fluorocarbon | Center Contact Finish | 金 |
| Center Contact Plating | Gold | Center Contact Material | Brass |
| Supplier Device Package | Right Angle | Contact Finish Thickness | 105 |
| Outside Pipe Diameter (Max) | 4.75 mm [ .187 in ] | ||
Product Info
| Type | SMB | Grade | Commercial |
| Gender | RCP | Series | Standard |
| Manufacturer | AMP | Product Type | Connector |
| Connection Type | PCB | RF Family/Standard | 1060464 |
| Other Specifications | 插针保护, 板支座 | ||
Environmental
| Ingress Protection | Without | Operating Temperature | -65°C ~ 85°C |
| Environment Protection | Without | ||
Documents & Media
Similar Parts

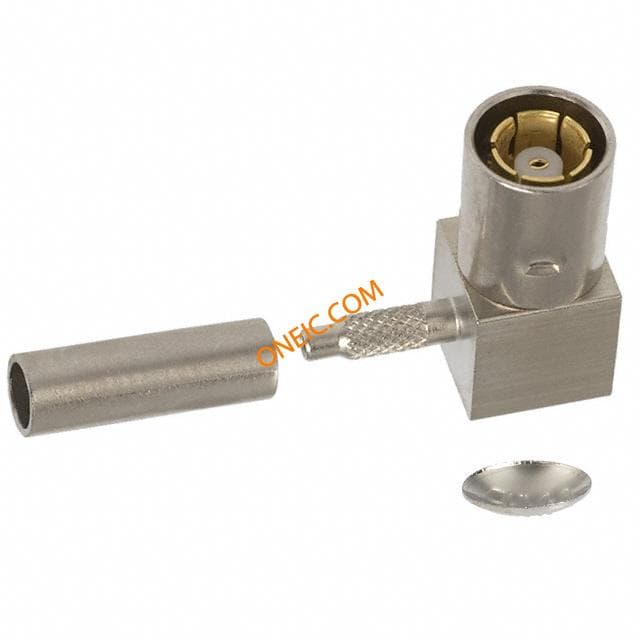

414002-8
te connectivity / amp
Conn SMB PL 0Hz to 4GHz 50Ohm Crimp RA Cable Mount Gold Over Nickel SMB RF Connectors CONN SMB PLUG R/A 50 OHM SOLDER RF Connectors / Coaxial Connectors PLUG R.A. NKL 50 Conn SMB PL 0Hz to 4GHz 50Ohm Crimp RA Cable Mount Gold Over Nickel Product Highlights:ConnectorPlugStandardTerminate To Coaxial CableCoupler Style = Quick Connect/DisconnectSearch Keywords:RF, MIL-C-39012, BS9210 F0022, subminiature, PLUG,CABLE,RTANG,SMB,NI PLTD

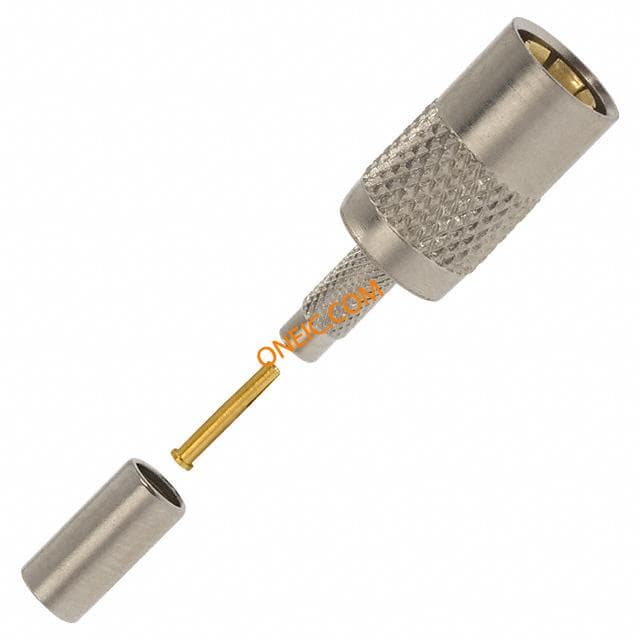

413985-4
