353908-8
| Manufacturer | |
| Description | Conn Housing RCP 8 POS 1.5mm Crimp ST Box 1.5mm AMP Mini CT CONN RCPT HSNG 8POS 1.5MM CRIMP Receptacle housing, 1.5mm,8 way,Mini-CT Headers & Wire Housings RCPT 8 POS WHT MINI CRIMP 1.5mm Conn Housing RCP 8 POS 1.5mm Crimp ST Box Product Highlights:Receptacle HousingConnector Type = CrimpNumber of Positions = 8Without Panel AttachmentNumber of Rows = 1Search Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, CT REC HSG 8P CRIMP TYPE WHITE Datacode:20140324 CT REC HSG 8P CRIMP TYPE WHITE |
| Category |
Business
| Tradename | Common Termination | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 2000 |
Compliance
| RoHS | Lead free / RoHS Compliant | Leadfree Defin | Not relevant for lead free process |
| UL File Number | E28476 | CSA File Number | LR 7189-133 |
| Standard Number | CSA, UL | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage - Supply | 50 VAC, 50 VDC | Resistance - Input | 500 |
| Connector Impedance | 压接 | Current Rating (Max) | 2/Contact A |
| Voltage - Supply (Min) | 50VDC/50VAC | Connector - Voltage Input | Crimp |
Mechanical
| Color | White | Depth | 6mm |
| Pitch | 1.5 mm | Shape | 矩形 |
| Width | 3.6mm | Height | 3.6 mm |
| Length | 13.5mm | Packaging | Bulk |
| Body Color | 自然 | Wire Gauge | 24-28 AWG |
| Contact Form | Female Socket | Contact Type | Female Socket |
| 2nd Connector | Without | Housing Color | White |
| Mounting Type | Straight | Connector Type | Crimp |
| Mounting Style | Wire | Number of Rows | 1 |
| Housing Material | Nylon 66 | Length - Overall | 1.50 [0.059] |
| Package Quantity | Loose Piece | Panel Mount Type | Without |
| Termination Style | Crimp | 1st Contact Gender | Pin (Male) |
| Number of Contacts | 8 | Contact Termination | Crimp |
| Insulation Diameter | .85 – 1.05 mm [ .0334 – .041 in ] | Number of Positions | 8 |
| Contact Length - Post | 信号（数据） | Mounting Hole Diameter | 带有 |
| Contact Layout, Typical | 同轴 | Static Discharge Shielding | 不带 |
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | RCP | Series | 353908 |
| Sealable | 否 | Product Type | Receptacle Housing |
| Output Configuration | Free Hanging (In-Line) | For Use With/Related Products | Wire-to-Board Connector |
Environmental
| Temperature - Test | 标准部件 - 非辉光导线 | Operating Temperature | -30C to 105C |
Similar Parts
353907-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip 1.5mm AMP Mini CT CONN CONTACT RECEPT 1.5MM CT Crimp socket contact, 28-24 AWG, Mini-CT Headers & Wire Housings REC 28-24AWG PHBZ/SN Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactTerminate To WireStripSearch Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, CONTACT, RECEPTACLE, 28-24AWG, CRIMP TERMINAL, 24-28 AWG CONTACT, CRIMP, SOCKET, 28-24AWG, REEL Contact,Receptacle,1.5mmPitch,MiniCT,CrimpType CT 1.5MM REC CONT CRIMP TYPE Datacode:20140316 TE Connectivity AMP Mini CT 系列 母 压接接线端子, 压接, 镀锡触点 CT 1.5MM REC CONT CRIMP TYPE

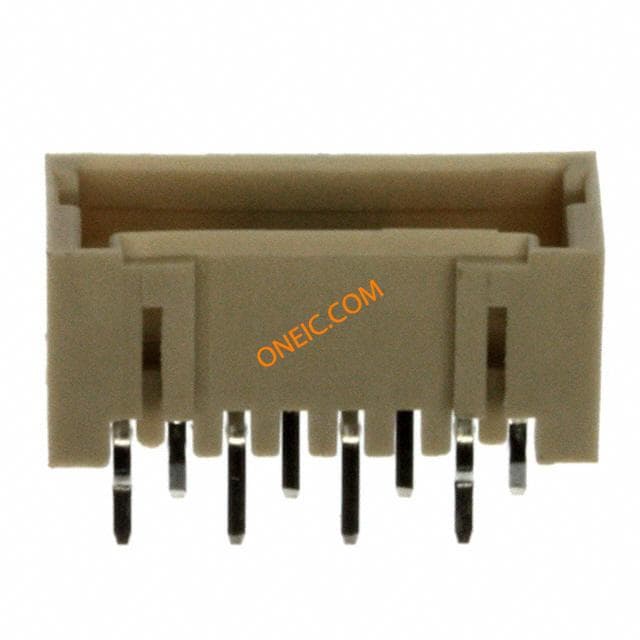

292207-8
te connectivity / amp
Conn Shrouded Header HDR 8 POS 1.5mm Solder ST Thru-Hole Loose Piece 1.5mm AMP Mini CT CONN HEADER 8POS VERT 1.5MM TIN Headers & Wire Housings 8P DIP HDR VT MINI NAT 1.5mm Conn Shrouded Header HDR 8 POS 1.5mm Solder ST Thru-Hole Loose Piece Product Highlights:Post HeaderConnector Type = DIPNumber of Positions = 8Without Panel AttachmentTerminate To Printed Circuit BoardSearch Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, MINI CT SGL DIP V 8P NAT

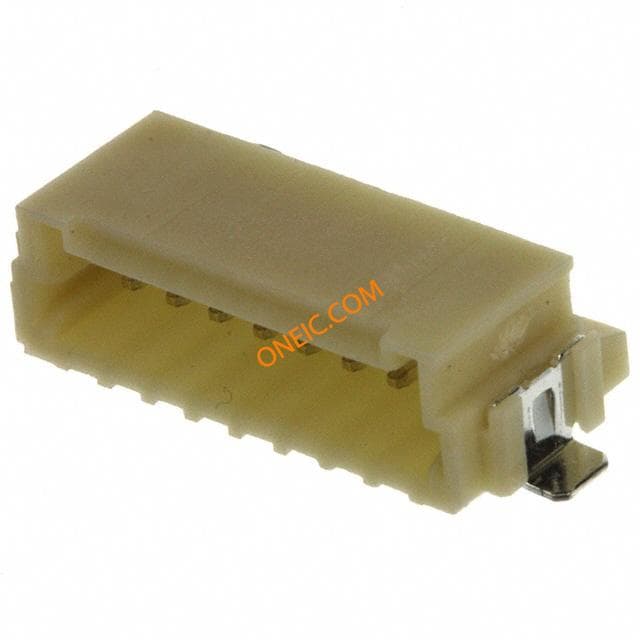

292227-8
te connectivity / amp
Conn Shrouded Header HDR 8 POS 1.5mm Solder RA SMD Embossed Tape 1.5mm AMP Mini CT CONN HEADER 8POS R/A SMD TIN Headers & Wire Housings 8P SMT HDR R/A MINI Conn Shrouded Header HDR 8 POS 1.5mm Solder RA SMD Embossed Tape Product Highlights:Post HeaderConnector Type = DIPNumber of Positions = 8Without Panel AttachmentTerminate To Printed Circuit BoardSearch Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, 1.5 MINI CT SGL H SMT W BOSS 8

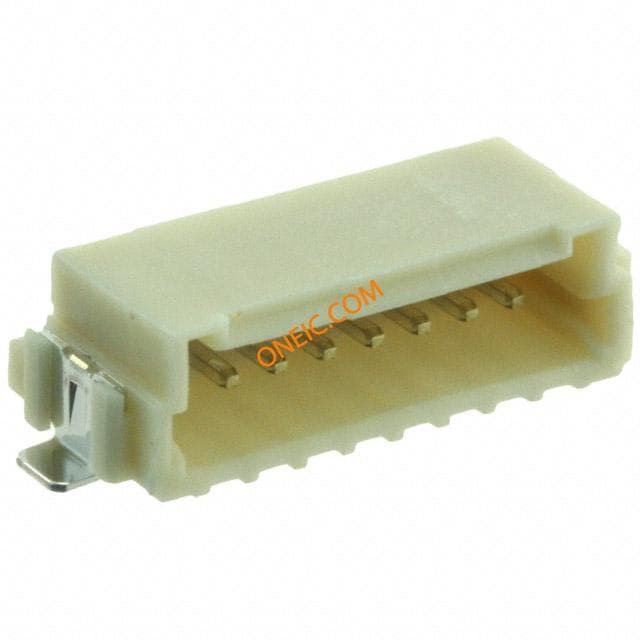

292228-8
te connectivity / amp
Conn Shrouded Header HDR 8 POS 1.5mm Solder RA SMD T/R 1.5mm AMP Mini CT CONN HEADER 8POS R/A SMD TIN Headers & Wire Housings 1.5 MINI CT SGL H Conn Shrouded Header HDR 8 POS 1.5mm Solder RA SMD T/R Product Highlights:Post HeaderConnector Type = DIPNumber of Positions = 8Without Panel AttachmentTerminate To Printed Circuit BoardSearch Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, 1.5 MINI CT SGL H SMT W/O BOSS

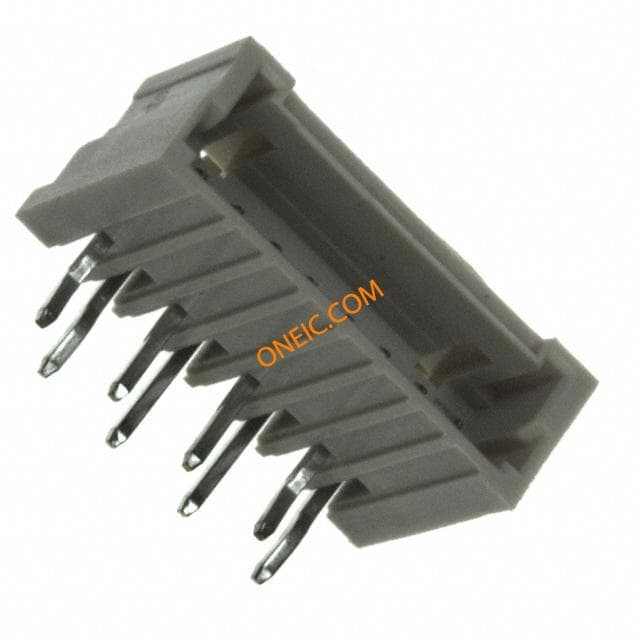

292206-8
