292207-8
| Manufacturer | |
| Description | Conn Shrouded Header HDR 8 POS 1.5mm Solder ST Thru-Hole Loose Piece 1.5mm AMP Mini CT CONN HEADER 8POS VERT 1.5MM TIN Headers & Wire Housings 8P DIP HDR VT MINI NAT 1.5mm Conn Shrouded Header HDR 8 POS 1.5mm Solder ST Thru-Hole Loose Piece Product Highlights:Post HeaderConnector Type = DIPNumber of Positions = 8Without Panel AttachmentTerminate To Printed Circuit BoardSearch Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, MINI CT SGL DIP V 8P NAT |
| Category |
Business
| Tradename | COMMON TERMINATION | Product Category | Headers & Wire Housings |
| Standard Package | Trays | Factory Pack Quantity | 1000 |
Compliance
| RoHS | Lead free / RoHS Compliant | Part Status | CSA, UL |
| Leadfree Defin | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | UL File Number | E28476 |
| CSA File Number | LR 7189-133 | Standard Number | CSA, UL 94V-0 |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Voltage Rating | 50 V | Switch Function | With |
| Voltage - Supply | 50 | Connector Impedance | 内部 |
| Current Rating (Max) | 2 A | Voltage - Supply (Min) | 50VDC/50VAC |
| Connector - Voltage Input | 方柱 | ||
Mechanical
| Color | Gray | Depth | 4.7 mm |
| Pitch | 1.5 mm | Shape | 矩形 |
| Width | 4.7 mm [ .185 in ] | Height | 6.9 mm |
| Length | 14.5 mm [ .57 in ] | Packaging | Bulk |
| Tail Type | 交错 | Body Color | 自然 |
| Lead Style | 正方形 | Termination | Solder |
| Contact Type | Male Pin | Polarization | Mounting Boss |
| Contact Shape | Square | Housing Color | Gray |
| Mounting Type | Vertical | Connector Type | DIP |
| Contact Finish | Pre-Tin | Contact Timing | Without |
| Mounting Style | Thru Hole | Number of Rows | 1 |
| Insert Material | 黄铜 | Contact Material | Brass |
| Housing Material | Nylon | Length - Overall | 14.5 mm |
| Mounting Feature | 扭结支脚 | Package Quantity | Loose Piece |
| Panel Mount Type | Without | Size / Dimension | 0.50 [.020] |
| Termination Style | Through Hole | 1st Connector Type | 带罩 |
| 1st Contact Gender | Pin (Male) | Number of Contacts | 8 |
| Termination Finish | 带有 | Number of Positions | 8 |
| Contact Length - Post | 信号（数据） | Mounting Hole Diameter | 带有 |
| Center Contact Material | 1.50 [0.059] | Contact Finish - Mating | 锡 |
| Contact Length - Mating | 0.094" (2.40mm) | Termination Post Length | 2.4 mm [ .095 in ] |
| Contact Finish Thickness | 1 – 2 µm [ 39.37 – 78.73 µin ] | Static Discharge Shielding | 不带 |
Product Info
| Type | Shrouded Header | Gender | HDR |
| Series | Mini CT | Features | Board Guide |
| Sealable | 否 | Spool Size | 1000 |
| Product Type | Post Header | Connection Type | Printed Circuit Board |
| Number of Positions Loaded | All | ||
Environmental
| Operating Temperature | -30C to 105C | Thermal Resistance of Package | 1.6 mm [ .063 in ] |
Documents & Media
Similar Parts

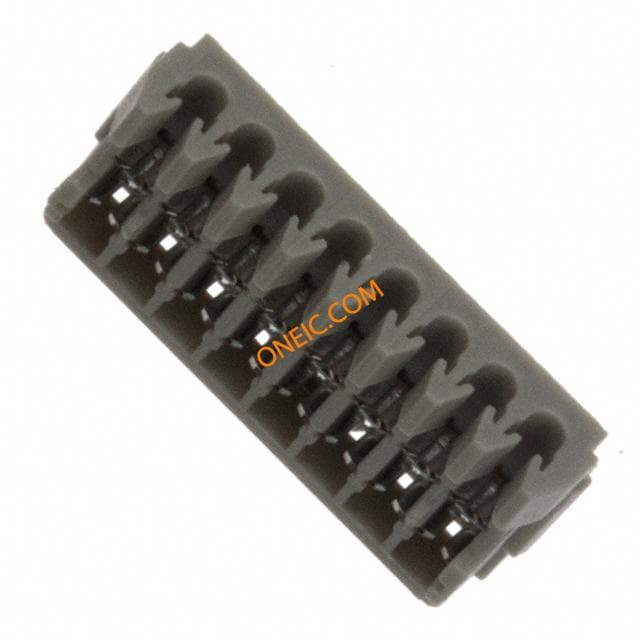

353293-8
