353908-4
| Manufacturer | |
| Description | Conn Housing RCP 4 POS 1.5mm Crimp ST Box 1.5mm AMP Mini CT CONN RCPT HSNG 4POS 1.5MM CRIMP Receptacle housing, 1.5mm,4 way,Mini-CT Conn Housing RCP 4 POS 1.5mm Crimp ST Box Product Highlights:Receptacle HousingConnector Type = CrimpNumber of Positions = 4Without Panel AttachmentNumber of Rows = 1Search Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, RECEPTACLEHOUSING,4POSITION,1.5MMPITCH,CRIMPTYPEII CONN RCPT HSNG 4POS 1.5MM CRIMP Datacode: 20140223、Datacode: 0310 TE Connectivity AMP Mini CT 系列 1.5mm 节距 4 路 直 母 电缆安装 PCB 连接器外壳 CT REC HSG 4P CRIMP TYPE WHITE |
| Category |
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Leadfree Defin | Not relevant for lead free process |
| UL File Number | E28476 | CSA File Number | LR 7189-133 |
| Standard Number | CSA, UL | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage Rating | 50 V ac/dc | Voltage - Supply | 50 VAC, 50 VDC |
| Resistance - Input | 500 | Connector Impedance | 压接 |
| Current Rating (Max) | 2A | Connector - Voltage Input | Crimp |
Mechanical
| Color | White | Depth | 6mm |
| Pitch | 1.5 mm | Shape | 矩形 |
| Width | 3.6mm | Height | 6 mm [ .236 in ] |
| Length | 7.5mm | Packaging | Bulk |
| Body Color | 自然 | Wire Gauge | 24-28 AWG |
| Orientation | 直 | Termination | Crimp |
| Contact Form | Female Socket | Contact Type | Female Socket |
| 2nd Connector | Without | Mounting Type | Straight |
| Angle of Throw | Straight | Connector Type | Crimp |
| Mounting Style | 不带 | Number of Rows | 1 |
| Contact Material | Phosphor Bronze | Housing Material | Nylon 66 |
| Length - Overall | 1.50 [0.059] | Package Quantity | Loose Piece |
| Panel Mount Type | Without | Primary Material | WiretoBoard |
| Pin Hole Diameter | 0.059" | Termination Style | 插座 |
| Number of Contacts | 4 | Contact Termination | Crimp |
| Insulation Diameter | .85 – 1.05 mm [ .0334 – .041 in ] | Number of Positions | 4 |
| Contact Length - Post | 信号（数据） | Mounting Hole Diameter | 带有 |
| Contact Layout, Typical | 同轴 | Static Discharge Shielding | 不带 |
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | RCP | Series | AMP Mini CT |
| Features | TypeII | Sealable | 否 |
| Manufacturer | MiniCTSeries | Product Type | Receptacle Housing |
| Base Product Number | 353908 | Output Configuration | Free Hanging (In-Line) |
Environmental
| Temperature - Test | 标准部件 - 非辉光导线 | Operating Temperature | -30 – 105 °C [ -22 – 221 °F ] |
Similar Parts

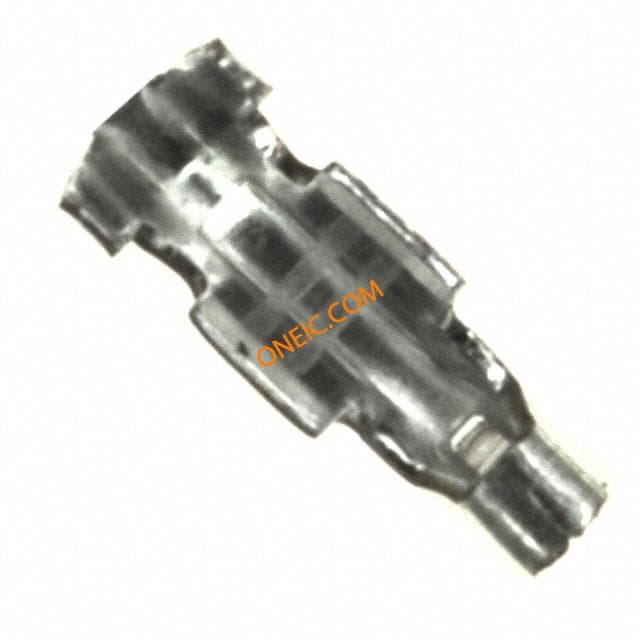

353907-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip 1.5mm AMP Mini CT CONN CONTACT RECEPT 1.5MM CT Crimp socket contact, 28-24 AWG, Mini-CT Headers & Wire Housings REC 28-24AWG PHBZ/SN Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactTerminate To WireStripSearch Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, CONTACT, RECEPTACLE, 28-24AWG, CRIMP TERMINAL, 24-28 AWG CONTACT, CRIMP, SOCKET, 28-24AWG, REEL Contact,Receptacle,1.5mmPitch,MiniCT,CrimpType CT 1.5MM REC CONT CRIMP TYPE Datacode:20140316 TE Connectivity AMP Mini CT 系列 母 压接接线端子, 压接, 镀锡触点 CT 1.5MM REC CONT CRIMP TYPE

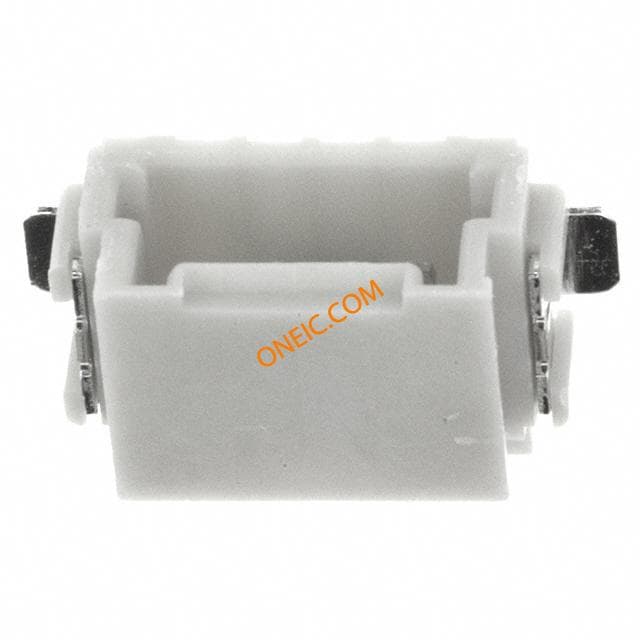

292227-4
te connectivity / amp
Conn Shrouded Header HDR 4 POS 1.5mm Solder RA SMD Embossed Tape 1.5mm AMP Mini CT CONN HEADER 4POS R/A SMD TIN Headers & Wire Housings 4P SMT HDR R/A MINI Conn Shrouded Header HDR 4 POS 1.5mm Solder RA SMD Embossed Tape Product Highlights:Post HeaderConnector Type = DIPNumber of Positions = 4Without Panel AttachmentTerminate To Printed Circuit BoardSearch Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, TE Connectivity AMP Mini CT 系列 1.5mm节距 4路 (1排) 直角 PCB 针座, 焊接端接, 2A , 表面安装 1.5 MINI CT SGL H SMT W BOSS 4

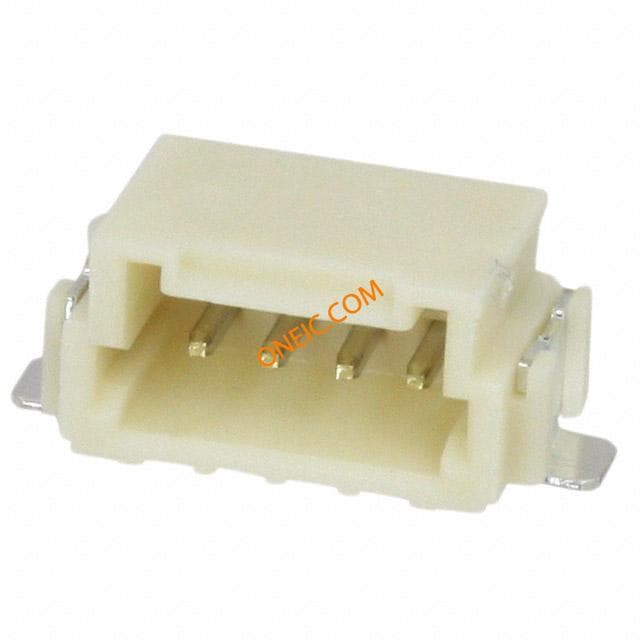

292228-4
te connectivity / amp
Conn Shrouded Header HDR 4 POS 1.5mm Solder RA SMD T/R 1.5mm AMP Mini CT CONN HEADER 4POS R/A SMD TIN Headers & Wire Housings 1.5 MINI CT SGL H SMT W/O BOSS Conn Shrouded Header HDR 4 POS 1.5mm Solder RA SMD T/R Product Highlights:ConnectorWire-to-BoardApplies To Printed Circuit Board1.50 mm CenterlineHeaderSearch Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, 1.5 MINI CT SGL H SMT W/O BOSS

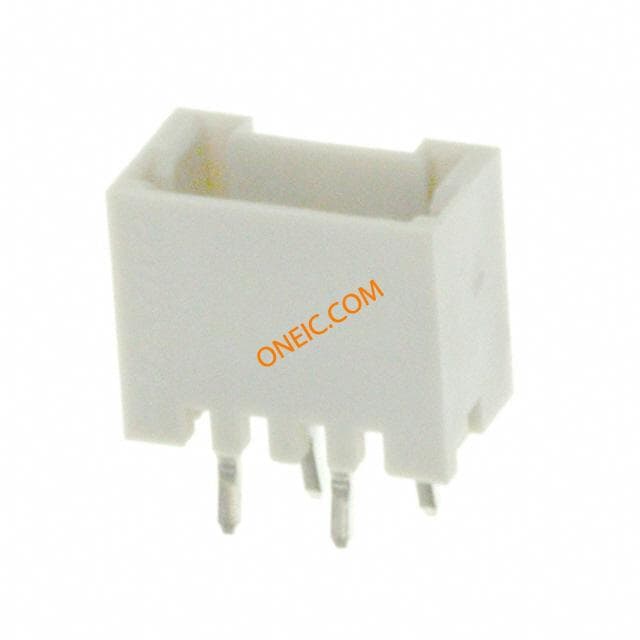

292207-4
te connectivity / amp
Conn Shrouded Header HDR 4 POS 1.5mm Solder ST Thru-Hole Loose Piece 1.5mm AMP Mini CT CONN HEADER 4POS VERT 1.5MM TIN TE Connectivity 292207 Series 1.5mm Pitch 4 Way 1 Row Straight PCB Header, Solder Termination Headers & Wire Housings 4P DIP HDR VT MINI NAT 1.5mm Conn Shrouded Header HDR 4 POS 1.5mm Solder ST Thru-Hole Loose Piece Product Highlights:Post HeaderConnector Type = DIPNumber of Positions = 4Without Panel AttachmentTerminate To Printed Circuit BoardSearch Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, WIRE-BOARD CONNECTOR HEADER, 4POS, 1.5MM POSTHEADERASSEMBLY,4POSITION,VERTICAL,1.5MMPITCH,DIPSTANDARDTYPE TE Connectivity AMP Mini CT 系列 1.5mm节距 4路 (1排) 直 PCB 针座, 焊接端接 , 通孔 MINI CT SGL DIP V 4P NAT

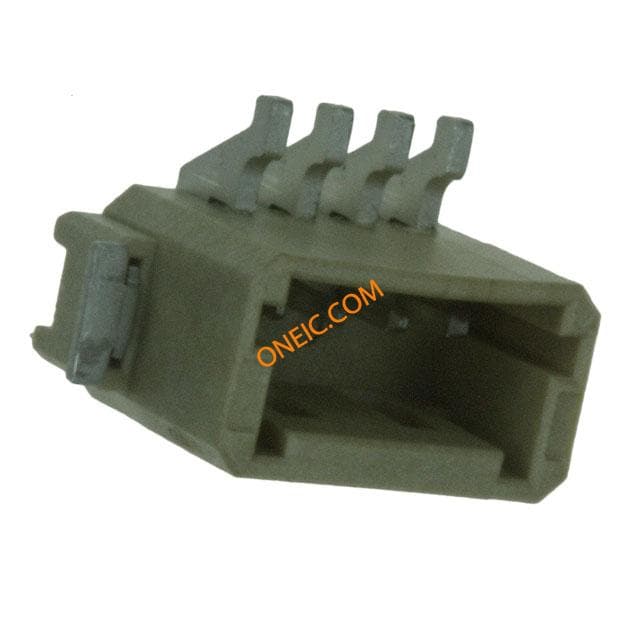

2106091-3
te connectivity / amp
Conn Wire to Board RCP 4 POS 1.5mm Solder ST SMD LED Interconnects CONN HEADER 4POS T/H SMD 1.5MM Lighting Connectors 4P INVERTED SMT THRU BOARD Conn Wire to Board RCP 4 POS 1.5mm Solder ST SMD Product Highlights:Wire-to-Board1.50 mm CenterlineApplies To Printed Circuit BoardContact Current Rating, Max = 3 AOperating Voltage = 50 VACSearch Keywords:Thru-board connector, Through-board connector, SMT thru-board connector, SMT connector, Inverted SMT, Inverted connector, LED connector, lighting connector, light connector, LED, LED lights, Thruboard, Thru board, Through board, Through-board, Throughboard CONNECTOR, HERMAPHRODITIC, 4WAY 4 pos Inverted Thru Board SMT Header

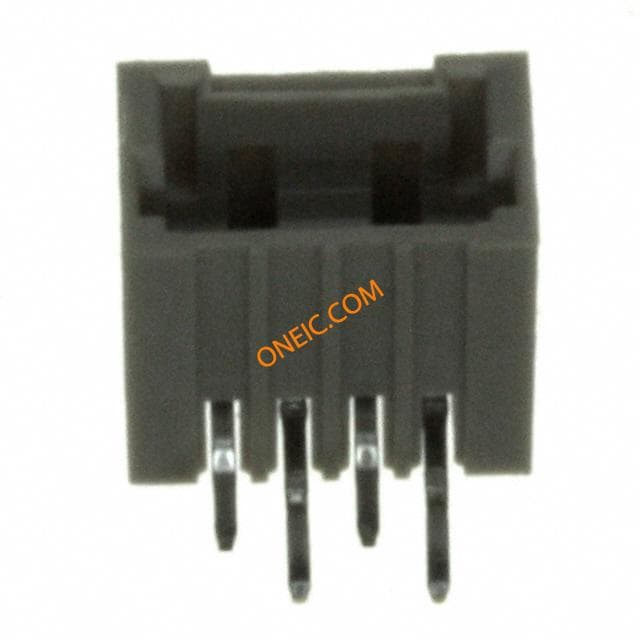

292206-4
