292227-4
| Manufacturer | |
| Description | Conn Shrouded Header HDR 4 POS 1.5mm Solder RA SMD Embossed Tape 1.5mm AMP Mini CT CONN HEADER 4POS R/A SMD TIN Headers & Wire Housings 4P SMT HDR R/A MINI Conn Shrouded Header HDR 4 POS 1.5mm Solder RA SMD Embossed Tape Product Highlights:Post HeaderConnector Type = DIPNumber of Positions = 4Without Panel AttachmentTerminate To Printed Circuit BoardSearch Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, TE Connectivity AMP Mini CT 系列 1.5mm节距 4路 (1排) 直角 PCB 针座, 焊接端接, 2A , 表面安装 1.5 MINI CT SGL H SMT W BOSS 4 |
| Category |
Business
| Tradename | COMMON TERMINATION | Other Names | A98697CT |
| Product Category | Headers & Wire Housings | Standard Package | Rail / Tube |
| Factory Pack Quantity | 700 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Part Status | CSA, UL |
| Leadfree Defin | Reflow solder capable to 245°C | UL File Number | E28476 |
| CSA File Number | LR 7189-133 | Standard Number | CSA, UL 94V-0 |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Voltage Rating | 50 V 交流/直流 | Switch Function | With |
| Voltage - Supply | 50 | Current Rating (Max) | 2A |
| Connector - Voltage Input | 方柱 | ||
Mechanical
| Color | Beige | Pitch | 1.5 mm |
| Shape | 矩形 | Width | 4.9 mm [ .192 in ] |
| Height | 7.7 mm [ .303 in ] | Length | 10.5 mm [ .413 in ] |
| Packaging | Tape & Reel (TR) | Tail Type | Inline |
| Body Color | 自然 | Cable Type | 分离式导线 |
| Wire Gauge | 28 – 24 | Orientation | 直角 |
| Termination | Solder | Contact Type | Male Pin |
| Polarization | Mounting Boss | Contact Shape | Square |
| Mounting Type | Right Angle | Connector Type | DIP |
| Contact Finish | Tin | Contact Timing | Without |
| Mounting Style | Surface Mount | Number of Rows | 1 |
| Plating - Body | Tin | Insert Material | 黄铜 |
| Contact Material | Brass | Housing Material | Nylon |
| Length - Overall | 1.50 [0.059] | Mounting Feature | 焊钉 |
| Package Quantity | Tape | Panel Mount Type | Without |
| Size / Dimension | 0.50 [.020] | Termination Rows | 焊接 |
| Termination Style | 插针 | 1st Contact Gender | Pin (Male) |
| Number of Contacts | 4 | Termination Finish | 不带 |
| Insulation Diameter | .85 mm [ .0334 – .041 in ] | Number of Positions | 4 |
| Contact Length - Post | 信号（数据） | Mounting Hole Diameter | 带有 |
| Contact Finish - Mating | 预镀锡 | Contact Length - Mating | 0.094" (2.40mm) |
| Surface Mount Land Size | Internal | Termination Post Length | 2.4 mm [ .095 in ] |
| Contact Finish Thickness | 1 µm [ 39.37 µin ] | ||
Product Info
| Type | Shrouded Header | Gender | HDR |
| Series | Mini CT | Coverage | 覆盖 |
| Features | Board Guide | Sealable | 否 |
| Spool Size | 200 | Product Type | Post Header |
| Connection Type | Printed Circuit Board | Number of Positions Loaded | All |
Environmental
| Operating Temperature | -22 – 221 °C [ -30 – 105 °F ] | Thermal Resistance of Package | .8 mm [ .031 in ] |
Documents & Media
Similar Parts
353908-4
te connectivity / amp
Conn Housing RCP 4 POS 1.5mm Crimp ST Box 1.5mm AMP Mini CT CONN RCPT HSNG 4POS 1.5MM CRIMP Receptacle housing, 1.5mm,4 way,Mini-CT Conn Housing RCP 4 POS 1.5mm Crimp ST Box Product Highlights:Receptacle HousingConnector Type = CrimpNumber of Positions = 4Without Panel AttachmentNumber of Rows = 1Search Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, RECEPTACLEHOUSING,4POSITION,1.5MMPITCH,CRIMPTYPEII CONN RCPT HSNG 4POS 1.5MM CRIMP Datacode: 20140223、Datacode: 0310 TE Connectivity AMP Mini CT 系列 1.5mm 节距 4 路 直 母 电缆安装 PCB 连接器外壳 CT REC HSG 4P CRIMP TYPE WHITE
353293-4
te connectivity / amp

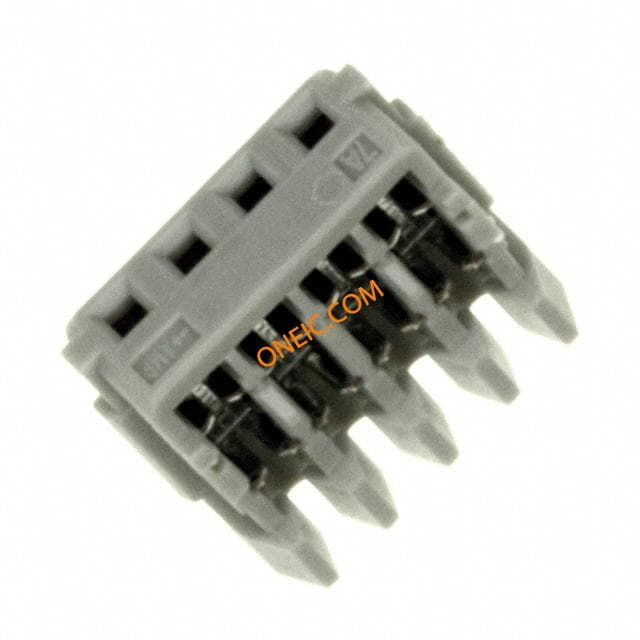

Conn IDC Connector RCP 4 POS 1.5mm IDT ST Cable Mount Bag/Box 1.5mm AMP Mini CT CONN RCPT 4POS 1.5MM 28-26AWG Receptacle assembly,MT,1.5mm,4W, Mini-CT Headers & Wire Housings RCPT 4 POS GRY MINI 1.5mm Conn IDC Connector RCP 4 POS 1.5mm IDT ST Cable Mount Bag/Box Product Highlights:Receptacle AssemblyConnector Type = MT (Mass Termination)Number of Positions = 4Without Panel AttachmentTerminate To WireSearch Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, Receptacleassembly,MT,1.5mm,4W,Mini-CT TE Connectivity AMP Mini CT 系列 4路 1.5mm节距 电缆安装 母 IDC 连接器 MINI CT MT REC ASSY 4P GRAY
