353293-9
| Manufacturer | |
| Description | Conn IDC Connector RCP 9 POS 1.5mm IDT ST Cable Mount Bag/Box 1.5mm AMP Mini CT CONN RCPT 9POS 1.5MM 28-26AWG Receptacle assembly,MT,1.5mm,9W, Mini-CT Headers & Wire Housings RCPT 9 POS GRY MINI 1.5mm Conn IDC Connector RCP 9 POS 1.5mm IDT ST Cable Mount Bag/Box Product Highlights:Receptacle AssemblyConnector Type = MT (Mass Termination)Number of Positions = 9Without Panel AttachmentTerminate To WireSearch Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, Receptacleassembly,MT,1.5mm,9W,Mini-CT TE Connectivity AMP Mini CT 系列 9路 1.5mm节距 母 IDC 连接器 , 电缆安装 MINI CT MT REC ASSY 9P GRAY |
| Category |
Business
| Tradename | COMMON TERMINATION | Other Names | A98646 |
| Product Category | Headers & Wire Housings | Standard Package | Bulk |
| Factory Pack Quantity | 1000 | ||
Compliance
| RoHS | Not applicable / RoHS Compliant | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Voltage Rating | 50 V ac/dc | Switch Function | Without |
| Connector Impedance | 刺破式压接 (IDC) | Current Rating (Max) | 2A |
Mechanical
| Color | Gray | Pitch | 1.5 mm |
| Packaging | Bulk | Wire Type | Discrete |
| Wire Gauge | 26-28 AWG | Orientation | 直 |
| Termination | IDT | Contact Type | Female Socket |
| Mounting Type | No | Connector Type | MT (Mass Termination) |
| Contact Finish | Tin Over Nickel | Number of Rows | 1 |
| Contact Material | Phosphor Bronze | Housing Material | Nylon GF |
| Package Quantity | Loose Piece | Panel Mount Type | Without |
| Termination Rows | IDC | Cable Termination | IDC |
| Termination Style | Crimp | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 9 | Insulation Diameter | 0.80 â 0.95 [0.032 â 0.037] |
| Number of Positions | 9 | Mounting Hole Diameter | 带有 |
| Center Contact Material | 1.50 [0.059] | Wire Gauge or Range - mm2 | 0.08-0.15² [28-26] |
Product Info
| Type | IDC Connector | Gender | RCP |
| Series | Mini CT | Features | Closed End |
| CAD Drawing | 3D CAD Model | Product Type | Receptacle Assembly |
| Connection Type | Wire | ||
Environmental
| Operating Temperature | +105°C | ||
Documents & Media
Similar Parts
937317-1
te connectivity / amp
MIMI CT PISTOL TOOL Hand Tools PISTOL GRIP MINI CT TOOL PUNCH MINI CT PISTOL GRIP MINI CT Pistol Tool
292207-9
te connectivity / amp
Conn Shrouded Header HDR 9 POS 1.5mm Solder ST Thru-Hole Loose Piece 1.5mm AMP Mini CT CONN HEADER 9POS VERT 1.5MM TIN Headers & Wire Housings 9P DIP HDR VT MINI NAT 1.5mm Conn Shrouded Header HDR 9 POS 1.5mm Solder ST Thru-Hole Loose Piece Search Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, MINI CT SGL DIP V 9P NAT
292227-9
te connectivity / amp
Conn Shrouded Header HDR 9 POS 1.5mm Solder RA SMD Embossed Tape 1.5mm AMP Mini CT CONN HEADER 9POS R/A SMD TIN Headers & Wire Housings 9P SMT HDR R/A MINI Conn Shrouded Header HDR 9 POS 1.5mm Solder RA SMD Embossed Tape Search Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, 1.5 MINI CT SGL H SMT W BOSS 9
292228-9
te connectivity / amp
Conn Shrouded Header HDR 9 POS 1.5mm Solder RA SMD T/R 1.5mm AMP Mini CT CONN HEADER 9POS R/A SMD TIN Headers & Wire Housings 1.5 MINI CT SGL H SMT W/O BOSS 1.5mm AMP Mini CT Connectors 1.5mm AMP Mini CT Connectors Product Highlights:Post HeaderConnector Type = DIP9 PositionsWithout Panel AttachmentTerminate To Printed Circuit BoardSearch Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, 1.5 MINI CT SGL H SMT W/O BOSS

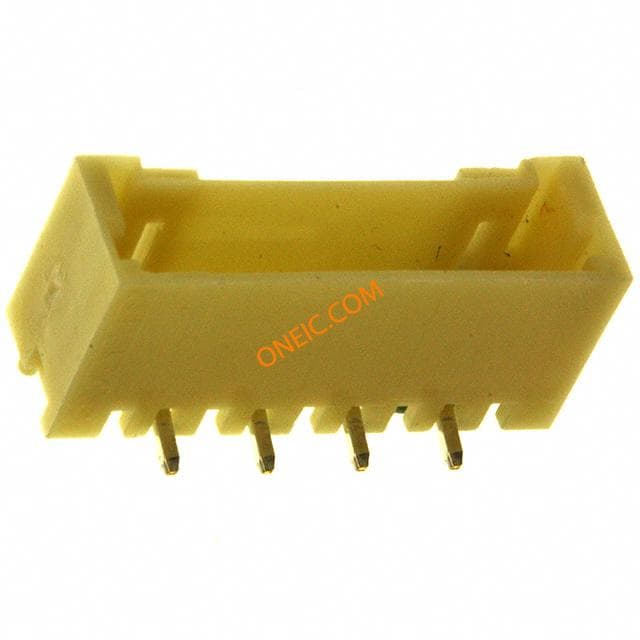

292230-9
