292228-9
| Manufacturer | |
| Description | Conn Shrouded Header HDR 9 POS 1.5mm Solder RA SMD T/R 1.5mm AMP Mini CT CONN HEADER 9POS R/A SMD TIN Headers & Wire Housings 1.5 MINI CT SGL H SMT W/O BOSS 1.5mm AMP Mini CT Connectors 1.5mm AMP Mini CT Connectors Product Highlights:Post HeaderConnector Type = DIP9 PositionsWithout Panel AttachmentTerminate To Printed Circuit BoardSearch Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, 1.5 MINI CT SGL H SMT W/O BOSS |
| Category |
Business
| Tradename | COMMON TERMINATION | Other Names | A101014CT |
| Standard Pack | 700 | Product Category | Headers & Wire Housings |
| Standard Package | Tape & Reel | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Part Status | CSA, UL |
| Leadfree Defin | Reflow solder capable to 245°C | UL File Number | E28476 |
| CSA File Number | LR 7189-133 | Standard Number | CSA, UL 94V-0 |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Switch Function | Without | Voltage - Supply | 50 |
| Current Rating (Max) | 2 | Connector - Voltage Input | 方柱 |
Mechanical
| Color | Beige | Pitch | 1.5 mm |
| Shape | 矩形 | Width | 4.9 mm [ .192 in ] |
| Height | 7.7 mm [ .303 in ] | Length | 18 mm [ .7087 in ] |
| Packaging | Tape & Reel (TR) | Tail Type | Inline |
| Body Color | 自然 | Cable Type | 分离式导线 |
| Wire Gauge | 28 – 24 | Termination | Solder |
| Contact Type | Male Pin | Contact Shape | Square |
| Mounting Type | Right Angle | Connector Type | DIP |
| Contact Finish | Tin | Contact Timing | Without |
| Mounting Style | Surface Mount | Number of Rows | 1 |
| Plating - Body | Tin | Insert Material | 黄铜 |
| Contact Material | Brass | Housing Material | Nylon |
| Mounting Feature | 焊钉 | Package Quantity | Tape |
| Panel Mount Type | Without | Size / Dimension | 0.50 [.020] |
| Termination Style | 插针 | 1st Contact Gender | Pin (Male) |
| Number of Contacts | 9 | Termination Finish | 不带 |
| Insulation Diameter | .85 mm [ .0334 – .041 in ] | Number of Positions | 9 |
| Contact Length - Post | 信号（数据） | Mounting Hole Diameter | 带有 |
| Center Contact Material | 1.50 [0.059] | Contact Finish - Mating | 锡 |
| Surface Mount Land Size | Internal | Termination Post Length | 2.4 mm [ .095 in ] |
| Contact Finish Thickness | 1 µm [ 39.37 µin ] | ||
Product Info
| Type | Shrouded Header | Gender | HDR |
| Series | Mini CT | Features | Solder Retention |
| Sealable | 否 | Spool Size | 700 |
| Product Type | Post Header | Connection Type | Printed Circuit Board |
| Number of Positions Loaded | All | ||
Environmental
| Operating Temperature | -22 – 221 °C [ -30 – 105 °F ] | Thermal Resistance of Package | .8 mm [ .031 in ] |
Documents & Media
Similar Parts

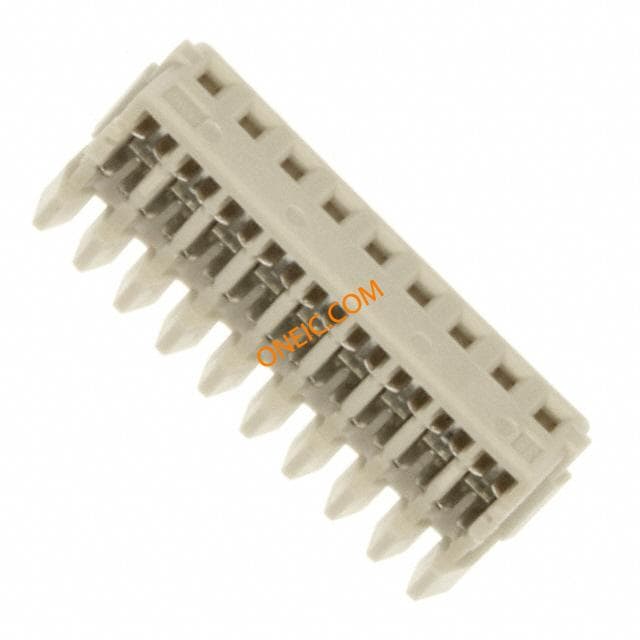

353293-9
