点击放大查看
353293-3
| Manufacturer | |
| Description | Conn IDC Connector RCP 3 POS 1.5mm IDT ST Cable Mount Bag/Box 1.5mm AMP Mini CT CONN RCPT 3POS 1.5MM 28-26AWG Receptacle assembly,MT,1.5mm,3W, Mini-CT Conn IDC Connector RCP 3 POS 1.5mm IDT ST Cable Mount Bag/Box Product Highlights:Receptacle AssemblyConnector Type = MT (Mass Termination)Number of Positions = 3Without Panel AttachmentTerminate To WireSearch Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, CONNECTOR, RECEPTACLE, IDC, 28-26AWG, 3P Receptacleassembly,MT,1.5mm,3W,Mini-CT TE Connectivity AMP Mini CT 系列 3路 1.5mm节距 母 IDC 连接器 , 电缆安装 MINI CT MT REC ASSY 3P GRAY |
| Category |
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | Not relevant for lead free process | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Range deg/s | :TE - AMP Mini-CT Series | Voltage Rating | 50 V ac/dc |
| Switch Function | Without | Current Rating (Max) | 2A |
Mechanical
| Color | Gray | Pitch | 1.5 mm |
| Weight | 0.02 | Packaging | Bulk |
| Wire Type | Discrete | Wire Gauge | 26-28 AWG |
| Termination | IDT | Contact Type | Female Socket |
| Mounting Type | No | Connector Type | MT (Mass Termination) |
| Contact Finish | Tin Over Nickel | Number of Rows | 1 |
| Contact Material | Phosphor Bronze | Housing Material | Nylon GF |
| Package Quantity | Loose Piece | Panel Mount Type | Without |
| Cable Termination | IDC | Number of Contacts | 3 |
| Contact Termination | :IDC | Insulation Diameter | 0.80 â 0.95 [0.032 â 0.037] |
| Number of Positions | 3 | Center Contact Material | 1.50 [0.059] |
| Wire Gauge or Range - mm2 | 0.08-0.15² [28-26] | ||
Product Info
| Type | IDC Connector | Gender | RCP |
| Features | Closed End | CAD Drawing | 3D CAD Model |
| Product Type | Receptacle Assembly | Connection Type | Wire |
Environmental
| Operating Temperature | +105°C | ||
Similar Parts

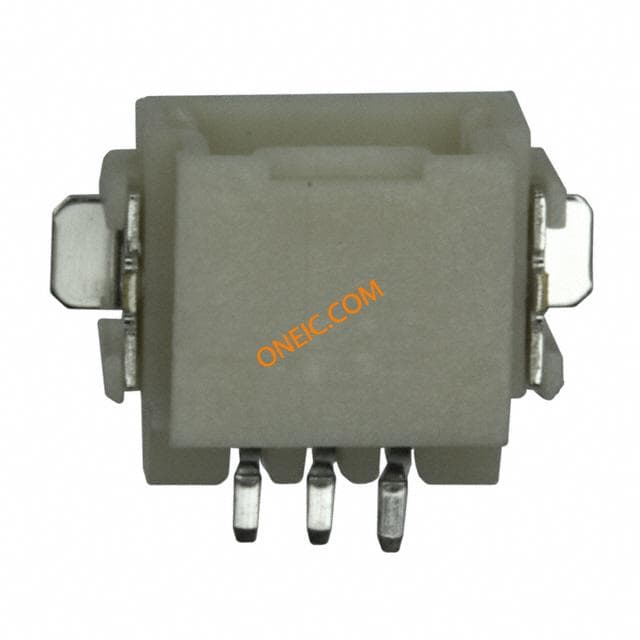

292227-3
