292207-3
| Manufacturer | |
| Description | Conn Shrouded Header HDR 3 POS 1.5mm Solder ST Thru-Hole Loose Piece Headers & Wire Housings 3P DIP HDR VT MINI NAT 1.5mm 1.5mm AMP Mini CT CONN HEADER 3POS VERT 1.5MM TIN TE Connectivity 292207 Series 1.5mm Pitch 3 Way 1 Row Straight PCB Header, Solder Termination Conn Shrouded Header HDR 3 POS 1.5mm Solder ST Thru-Hole Loose Piece Product Highlights:Post HeaderConnector Type = DIPNumber of Positions = 3Without Panel AttachmentTerminate To Printed Circuit BoardSearch Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, POSTHEADERASSEMBLY,3POSITION,VERTICAL,1.5MMPITCH,DIPSTANDARDTYPE TE Connectivity AMP Mini CT 系列 1.5mm节距 3路 (1排) 直 PCB 针座, 焊接端接 , 通孔 MINI CT SGL DIP V 3P NAT |
| Category |
Business
| Tradename | COMMON TERMINATION | Product Category | Headers & Wire Housings |
| Standard Package | Trays | Factory Pack Quantity | 2150 |
Compliance
| RoHS | RoHS Compliant | Part Status | CSA, UL |
| Leadfree Defin | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | UL File Number | E28476 |
| CSA File Number | LR 7189-133 | Standard Number | CSA, UL 94V-0 |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Voltage Rating | 50V | Switch Function | With |
| Voltage - Supply | 50 | Connector Impedance | 内部 |
| Current Rating (Max) | 2/Contact A | Voltage - Supply (Min) | 50VDC/50VAC |
| Connector - Voltage Input | 方柱 | ||
Mechanical
| Color | Gray | Depth | 4.7 mm |
| Pitch | 1.5 mm | Shape | 矩形 |
| Width | 4.7 mm [ .185 in ] | Height | 6.9 mm |
| Length | 7 mm [ .2756 in ] | Packaging | Tray |
| Tail Type | 交错 | Body Color | 自然 |
| Lead Style | 正方形 | Wire Gauge | 28-26 |
| Orientation | 直 | Termination | Solder |
| Contact Type | Male Pin | Length - Pin | 3mm |
| Polarization | Mounting Boss | Contact Shape | Square |
| Housing Color | Gray | Mounting Type | Vertical |
| Angle of Throw | Straight | Connector Type | DIP |
| Contact Finish | Pre-Tin | Contact Timing | Without |
| Mounting Style | Through Hole | Number of Rows | 1 |
| Insert Material | 黄铜 | Contact Material | Brass |
| Housing Material | Nylon | Length - Overall | 7 mm |
| Mounting Feature | 扭结支脚 | Package Quantity | Loose Piece |
| Panel Mount Type | Without | Primary Material | WiretoBoard |
| Size / Dimension | 0.50 [.020] | Termination Rows | 焊接 |
| Pin Hole Diameter | 0.059" | Termination Style | Solder |
| 1st Connector Type | 带罩 | 1st Contact Gender | Pin (Male) |
| Number of Contacts | 3 | Termination Finish | 带有 |
| Insulation Diameter | 0.8-0.9mm | Number of Positions | 3 |
| Contact Length - Post | 信号（数据） | Mounting Hole Diameter | 带有 |
| Center Contact Material | 1.50 [0.059] | Contact Finish - Mating | 锡 |
| Contact Length - Mating | 0.094" (2.40mm) | Termination Post Length | 2.4 mm [ .095 in ] |
| Contact Finish Thickness | 1 – 2 µm [ 39.37 – 78.73 µin ] | Static Discharge Shielding | 不带 |
Product Info
| Type | Shrouded Header | Gender | HDR |
| Series | Mini CT | Coverage | 覆盖 |
| Features | Board Guide | Sealable | 否 |
| Spool Size | 2150 | CAD Drawing | 3D CAD Model |
| Manufacturer | MiniCTSeries | Product Type | Headers - Shrouded |
| Connection Type | Printed Circuit Board | Number of Positions Loaded | All |
Environmental
| Operating Temperature | -30C to 105C | Thermal Resistance of Package | 1.6 mm [ .063 in ] |
Documents & Media
Similar Parts
353908-3
te connectivity / amp
Conn Housing RCP 3 POS 1.5mm Crimp ST Box 1.5mm AMP Mini CT CONN RCPT HSNG 3POS 1.5MM CRIMP Receptacle housing,1.5mm, 3 way,Mini-CT Conn Housing RCP 3 POS 1.5mm Crimp ST Box Product Highlights:Receptacle HousingConnector Type = CrimpNumber of Positions = 3Without Panel AttachmentNumber of Rows = 1Search Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, RECEPTACLEHOUSING,3POSITION,1.5MMPITCH,CRIMPTYPEII TE Connectivity AMP Mini CT 系列 1 行 1.5mm 节距 3 路 直 母 PCB 壳体 CT REC HSG 3P CRIMP TYPE WHITE

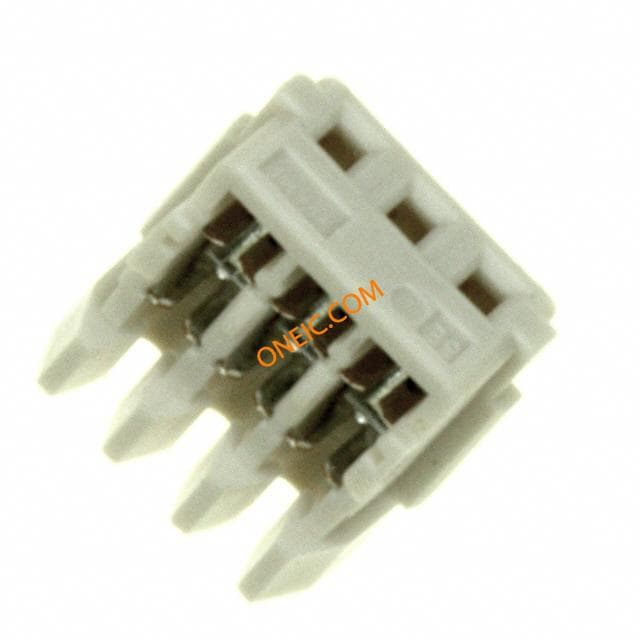

353293-3
