350786-1
| Manufacturer | |
| Description | Conn Power HDR 2 POS 6.35mm Solder ST Thru-Hole 2 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 2POS VERT .250 TIN MATE-N-LOK 2 Male Straight Heavy Duty Power Connector, Through Hole 19A,600V ac Pin & Socket Connectors 2 POS STD TAIL PIN Conn Power HDR 2 POS 6.35mm Solder ST Thru-Hole 2 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOK, Universal MATE-N-LOK IINot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 2Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP HEADER, PLUG, VERTICAL, SINGLE ROW, 2WAY Connector,SoftShell;UniversalMATE-N-LOK,UniversalMATE-N-LOKII;2;Nylon Socket; wire-board; male; 6.35mm; PIN:2; tinned; Pin layout:1x2 TE Connectivity Universal MATE-N-LOK 系列 6.35mm节距 2路 直 PCB 针座, 焊接端接, 19A , 通孔 02P UMNL HDR ASSY 94VO |
| Category |
Business
| Product Category | Pin & Socket Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Material Flammability Rating | :UL94V-0 | ||
Electrical
| Range deg/s | :TE - Universal MATE-N-LOK Series | Voltage Rating | 600 V ac |
| Voltage - Working | :600V | Contact Resistance | :3.5mohm |
| Dielectric Strength | :2900V/m | Current Rating (Max) | 19A |
| Insulation Resistance | :1000Mohm | Voltage - Supply (Min) | 600VAC |
Mechanical
| Color | White | Depth | 7.62 mm |
| Pitch | 6.35 mm | Height | 14.73 mm |
| Weight | 0.002 | Material | :Clear nylon |
| Packaging | Bulk | Orientation | straight |
| Termination | Solder | Contact Type | Male Pin |
| Lead Spacing | :6.35mm | Pitch - Post | 6.35mm |
| Mounting Type | Through Hole | Connector Type | Header, Shrouded |
| Contact Finish | Tin | Fastening Type | Locking Ramp |
| Mounting Style | Through Hole | Number of Rows | 1 |
| Locking Feature | lock | Material Finish | :- |
| Contact Material | Phosphor Bronze | Housing Material | Polyamide (PA) |
| Package Quantity | 100 | Connector - Cable | socket |
| 1st Contact Gender | Pin (Male) | Number of Contacts | 2 |
| Contact Termination | :Through Hole Vertical | Number of Positions | 2 |
| Mounting Hole Diameter | :1.8mm | Contact Material - Plating | tinned |
| 1st Connector Mounting Feature | 1x2 | ||
Product Info
| Spg | 100 | Type | Power |
| Gender | HDR | Series | MATE-N-LOK |
| CAD Drawing | 3D CAD Model | Product Type | Receptacle Housings |
| Adapter Series | Universal MATE-N-LOK | Number of Ports | 1 Port |
| Number of Units | 1 | Number of Positions Loaded | All |
Environmental
| Mating Cycles | :50 | Operating Temperature | :105°C |
Documents & Media
Similar Parts
1-480698-5
te connectivity / amp
Conn Housing PL 2 POS 6.35mm Crimp ST Cable Mount Individual .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 2POS UNIV-M-N-L GREEN Power to the Board 02P PLUG HSG GRN Conn Housing PL 2 POS 6.35mm Crimp ST Cable Mount Individual Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 2Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 02P UMNL PLUG HSG GRN
1-480698-6
te connectivity / amp
Conn Housing PL 2 POS 6.35mm Crimp ST Cable Mount Individual .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 2POS UNIV-M-N-L BLUE Power to the Board 02P PLUG HSG BLU Conn Housing PL 2 POS 6.35mm Crimp ST Cable Mount Individual Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 02P UMNL PLUG HSG BLU
1-480698-9
te connectivity / amp
Conn Housing PL 2 POS 6.35mm Crimp ST Individual .250" Centerline, 600 V, 19 - 36 A max CONN U-MNL PLUG 2POS 94V-2 BLK Housing FH 2 way Pin/sckt UMNL Power to the Board PLUG HOUSE 2 POS BLACK UL94V-2 Conn Housing PL 2 POS 6.35mm Crimp ST Individual Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 2Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP Conn;PlugHsg;2Pos;UnivMATE-N-LOK;Black 02P UMNL PLUG HSG BLK

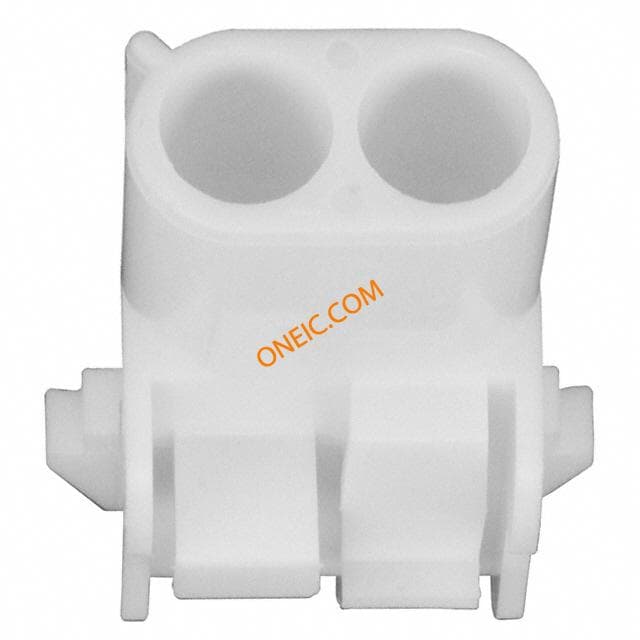

350778-1
