点击放大查看

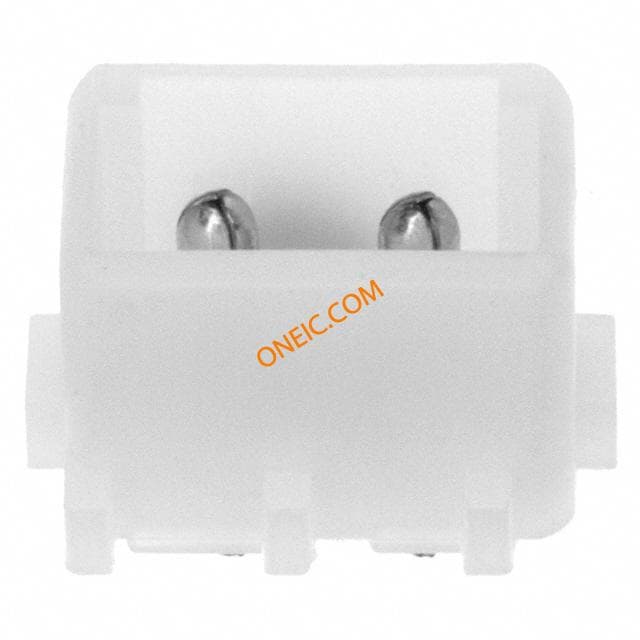

350209-1
| Manufacturer | |
| Description | Conn Power HDR 2 POS 5.08mm Solder ST Thru-Hole 2 Terminal 1 Port .200" Centerline, 250 V, 13 A max. CONN HEADER 2 POS TIN PCB MATE-N-LOK 2 Male Straight Heavy Duty Power Connector, Through Hole 13A,250V ac/dc Power to the Board CONN PCM 2 POS TIN Conn Power HDR 2 POS 5.08mm Solder ST Thru-Hole 2 Terminal 1 Port Product Highlights:HeaderContact Diameter = 2.13 mmNumber of Circuits = 25.08 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP HEADER, VERTICAL, 5.08MM, 1 ROW, 2 WAY Connector,Shell;CommercialMATE-N-LOK;Pin;2;13;250VAC;Nylon;Natural Socket; wire-board; male; 5.08mm; PIN:2; tinned; Pin layout:1x2
sale Pin header, straight Pitch5.08 mm Poles 1 x 2 MATE-N-LOK Commercial, 350209-1, TE Connectivity TE Connectivity Commercial MATE-N-LOK 系列 5.08mm节距 2路 直 PCB 针座, 焊接端接, 13A , 通孔 02P CMNL HDR ASSY PC NATL |
| Category |
Business
| Product Category | Power to the Board | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Approval Agency | :CSA, UL | Material Flammability Rating | :UL94V-2 |
Electrical
| Range deg/s | :Commercial MATE-N-LOK Series | Voltage Rating | 250 V ac/dc |
| Current Rating (Max) | 13A | Voltage - Supply (Min) | 250VDC/250VAC |
Mechanical
| Color | Natural | Pitch | 5.08 mm |
| Height | 10.28 mm | Weight | 0.008 |
| Material | :Nylon | Packaging | Bulk |
| Orientation | straight | Termination | Solder |
| Contact Type | Male Pin | Pitch - Post | 5.08mm |
| Mounting Type | Through Hole | Connector Type | Header, Shrouded |
| Contact Finish | Tin | Mounting Style | Through Hole |
| Number of Rows | 1 | Locking Feature | lock |
| Contact Material | Phosphor Bronze | Housing Material | Polyamide (PA) |
| Length - Overall | 13.08 mm | Package Quantity | 125 |
| Connector - Cable | socket | Termination Style | Solder Pin |
| 1st Contact Gender | Pin (Male) | Number of Contacts | 2 |
| Contact Termination | :Solder | Number of Positions | 2 |
| Contact Length - Mating | 0.180" (4.59mm) | Contact Material - Plating | tinned |
| 1st Connector Mounting Type | :PCB | 1st Connector Mounting Feature | 1x2 |
Product Info
| Spg | 125 | Type | Power |
| Gender | HDR | Series | MATE-N-LOK |
| CAD Drawing | 3D CAD Model | Product Type | Headers |
| Adapter Series | Commercial MATE-N-LOK | Number of Ports | 1 Port |
| Number of Units | 1 | Number of Positions Loaded | All |
Environmental
| Operating Temperature | -30C to 105C | Operating Temperature - Junction | 105C |
