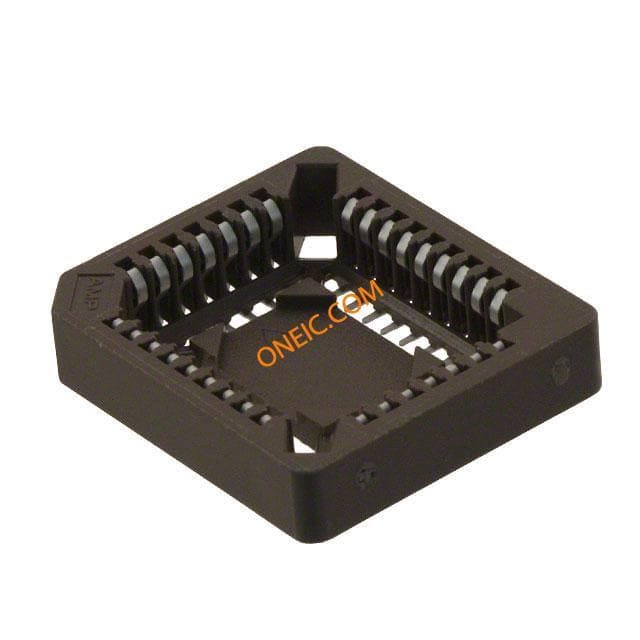

3-822516-7
| Manufacturer | |
| Description | Conn PLCC Socket SKT 32 POS 1.27mm Solder ST SMD Tape PLCC Sockets CONN SOCKET PLCC 32POS TIN SMD Socket,IC,PLCC,1.27mm,lo-profile,SMD,32P IC & Component Sockets SURFACE MNT 32P Conn PLCC Socket SKT 32 POS 1.27mm Solder ST SMD Tape Product Highlights:Socket Type = Low ProfileNumber of Positions = 321.27 mm CenterlineNormal Insertion ForceSurface MountSearch Keywords:IC sockets, NIC, Network Interface Cards, PC Cards, Plastic Leaded Chip Carrier, JEDEC MS-018, JEDEC MS-016-AE, EIA 481, JEDEC MO-047AA-AH, JEDEC MO-052-AE, JEDEC MO-061, JEDEC MS-016, Connector Type SOCKET,PLCC,32POSITION,LOWPROFILE,SURFACEMOUNT |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | PLCC Sockets | Other Names | A97623DKR |
| Product Category | IC & Component Sockets | Standard Package | Tape & Reel |
| Factory Pack Quantity | 4000 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85366910 |
| Rad Hardened | No | Leadfree Defin | Reflow solder capable to 245°C, Reflow solder capable to 260°C |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Voltage Rating | 250 V ac | Contact Resistance | 20 mohm |
| Current Rating (Max) | 1A | Insulation Resistance | 5000 Mohm |
Mechanical
| Size | 32mm Wide | Depth | 19.57 mm |
| Pitch | 1.27 mm | Height | 4.6mm |
| Weight | 0.00136 | Packaging | Reel |
| Frame Type | Closed | Termination | Solder |
| Polarization | Without | Mounting Type | Surface Mount |
| Angle of Throw | Straight | Contact Finish | Tin |
| Mounting Style | SMD/SMT | Height (Inches) | 4.60 [0.181] |
| Insertion Force | Normal | Material - Body | Thermoplastic |
| Contact Material | Phosphor Bronze | Housing Material | Thermoplastic |
| Length - Overall | 1.27 [0.050] | Package Quantity | Tape Mounted |
| Primary Material | PLCC | Pin Hole Diameter | 0.05In. |
| Number of Contacts | 32 | Insulation Material | Thermoplastic |
| Number of Positions | 32 | Contact Finish Thickness | 100µin (2.54µm) |
| Number of Positions or Pins (Grid) | 32 (2 x 7, 2 x 9) | ||
Product Info
| Type | PLCC Socket | Gender | SKT |
| Features | Closed Frame | CAD Drawing | 3D CAD Model |
| Socket Type | Low Profile | Manufacturer | AMP |
Environmental
| Operating Temperature | +105°C | ||
