3-644695-3
| Manufacturer | |
| Description | Conn Unshrouded Header HDR 3 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 3POS .100 TIN Headers & Wire Housings NARROW FLT HDR 3P Strt Post w/ret. leg Conn Unshrouded Header HDR 3 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 3Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR HEADER, 3WAY, 0.1IN 03P MTA100 STR HDR RETENTIVE |
| Category |
Business
| Product Category | Headers & Wire Housings | Standard Package | Bulk |
| Factory Pack Quantity | 2500 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 00000000 |
| Leadfree Defin | Wave solder capable to 240°C | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage Rating | 250 V | Voltage - Rated AC | 250 |
| Current Rating (Max) | 5 A | ||
Mechanical
| Color | Natural | Pitch | 2.54 mm |
| Weight | 0 | Packaging | Bulk |
| Shrouding | No | Termination | Solder |
| Contact Type | Male Pin | 2nd Connector | Without |
| Contact Shape | Square | Housing Color | White |
| Mounting Type | Vertical | Connector Type | Header, Unshrouded |
| Contact Finish | Tin | Number of Rows | 1 |
| Connector Usage | Header | Contact Material | Copper Alloy |
| Housing Material | Polyester | Mounting Feature | Without |
| Panel Mount Type | Without | Size / Dimension | 0.64 [.025] |
| Termination Style | Through Hole | 1st Contact Gender | Pin (Male) |
| Mating Orientation | Without | Number of Contacts | 3 |
| Contact Termination | :Through Hole Vertical | Number of Positions | 3 |
| Backshell Interrupts | Without | Contact Layout, Typical | 2.54 [0.100] |
| Contact Length - Mating | 0.295" (7.49mm) | Contact Finish Thickness | 150µin (3.81µm) |
| Small Diameter Recovered | Yes | ||
Product Info
| Note | 2 or 3 retentive leg's per header, depending upon number of positions. | Type | Unshrouded Header |
| Gender | HDR | Series | MTA-100 |
| Manufacturer | AMP | Product Type | MTA-100 Connectors |
| Connection Type | Printed Circuit Board | Application Specifics | Wire-to-Board |
| Number of Positions Loaded | All | Number of Positions Omitted | None |
Documents & Media
Similar Parts
3-641537-3
te connectivity / amp
Conn IDC Connector RCP 3 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 3POS 28AWG MTA100 03P MTA100 CONN ASSY LF 03P MTA100 CONN ASSY LF Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
643498-3
te connectivity / amp
Conn IDC Connector F 3 POS 2.54mm IDT RA Cable Mount Loose Piece Headers & Wire Housings 03P MTA100 CONN ASSY 22AWG MTA, CST-100 II, MT-6 and SL Connectors and Headers MTA 100 CONNECT ASSEM 22AWG 3CIR Conn IDC Connector F 3 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 3Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 03P MTA100 CONN ASSY 22AWG
3-644043-3
te connectivity / amp
Conn IDC Connector RCP 3 POS 2.54mm IDT RA Cable Mount Loose Piece Headers & Wire Housings REC 03P C/E 26AWG W/ TABS MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 3POS BLU MTA-100 30AU Conn IDC Connector RCP 3 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 3Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 03P MTA100 CONN ASSY LF
3-647080-3
te connectivity / amp
Conn IDC Connector F 3 POS 2.54mm IDT ST Cable Mount Tape Headers & Wire Housings 03P MTA100 CONN ASSY ON TAPE MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 3POS 24AWG .100 WHITE MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:3 PositionsPreloadedHousing Gender = PlugContact Gender = ReceptacleConnector Style = Closed EndSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 03P MTA100 CONN ASSY ON TAPE
3-647480-3
te connectivity / amp
Conn IDC Connector F 3 POS 2.54mm IDT RA Cable Mount Headers & Wire Housings 03P MTA100 CONN ASSY W/TABS LF MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 3POS 26AWG .100 BLUE 03P MTA100 CONN ASSY W/TABS LF
3-640620-3
te connectivity / amp
Conn IDC Connector F 3 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 3POS 22AWG MTA100 Connector,FeedThru,3,0.100in. Headers & Wire Housings FEED THRU W/O TAB 3P red tin 22 AWG Conn IDC Connector F 3 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 3Mating Type = ReceptacleConnector Type = Feed ThruWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR RECEPTACLE, 3POS, 2.54MM Connector;FeedThru;3;0.100in.;IDCStandard 3 Position Feed Through Wire-to-Board 2.54 mm Centerline Receptacle Connector 03P MTA100 CONN ASSY F/T RED
3-640440-3
te connectivity / amp
Conn IDC Connector F 3 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 3POS 22AWG MTA100 3 Way MTA cable mount skt,2.54mm 22awg Headers & Wire Housings CLOSED W/O TABS 3P red tin 22 AWG Conn IDC Connector F 3 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 3Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board Application, Wire-to-Wire ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HOUSING, 22AWG, 3WAY WIRE-BOARD CONNECTOR RECEPTACLE, 3POS, 2.54MM IDCReceptacle,Closed-EndWithoutPolarizingTab,22AWG,Red,3pos. Connector: wire-board; MTA-100; plug; female; PIN:3; tinned; 2.54mm Cable socket, straight 3P, 3-640440-3, TE Connectivity TE Connectivity MTA-156 系列 3路 2.54mm节距 直角 电缆安装 母 IDC 连接器 03P MTA100 CONN ASSY 22AWG RED
3-644578-3
te connectivity / amp
Conn IDC Connector F 3 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 3POS 22AWG MTA-100 Headers & Wire Housings 03P MTA100 CONN ASSY BLK LF 03P MTA100 CONN ASSY BLK LF

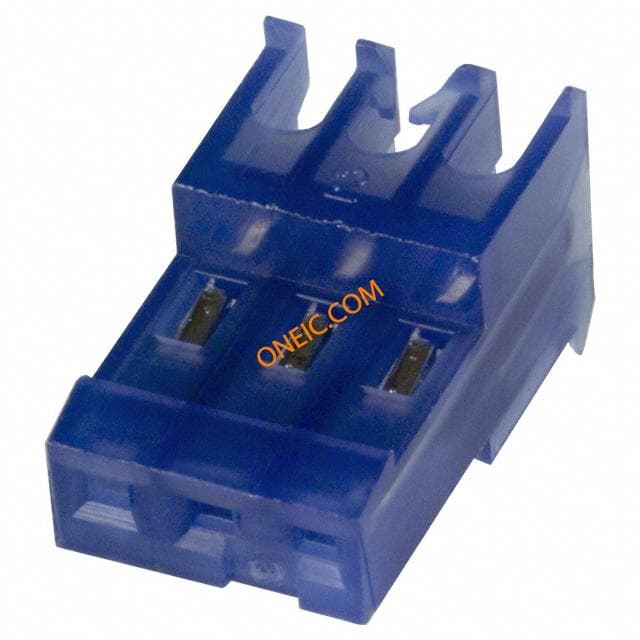

3-641655-3
