3-641237-6
| Manufacturer | |
| Description | Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 6POS 22AWG .100 RED Headers & Wire Housings REC 06P C/E 22AWG W/O TABS Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 6Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 06P MTA100 CONN ASSY RED 30AU |
| Category |
Business
| Other Names | 36412376 | Product Category | Headers & Wire Housings |
| Standard Package | Trays | Factory Pack Quantity | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | UL Rating | 获得认可 |
| Leadfree Defin | Not relevant for lead free process | UL File Number | E28476 |
| CSA File Number | LR7189 | Standard Number | CSA, UL |
| CSA Certification | Certified | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-2 | ||
Electrical
| Voltage Rating | 250 VAC | Switch Function | Ramp Lock |
| Voltage - Supply | 250 | Voltage - Rated AC | 250 |
| Connector Impedance | IDC | Current Rating (Max) | 5 A |
Mechanical
| Color | Red | Pitch | 2.54 mm |
| Length | 15.24 | Packaging | Bulk |
| Shrouding | No | Wire Type | Discrete or Ribbon Cable |
| Body Color | 白色 | Cable Exit | 90° |
| Cable Type | 分离式导线, 绞线 | Wire Gauge | 22 AWG |
| Termination | IDT | Contact Type | Female Socket |
| 2nd Connector | With | Housing Color | Red |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Closed End |
| Contact Finish | Gold Over Nickel | Contact Timing | Without |
| Fastening Type | Locking Ramp | Mounting Style | Wire |
| Number of Rows | 1 | Plating - Body | Nickel |
| Shell Material | 标准 | Connector Usage | Receptacle |
| Height (Inches) | 6.99 | Insert Material | 铜合金 |
| Contact Material | Copper Alloy | Housing Material | Nylon |
| Mounting Feature | Without | Package Quantity | Loose Piece |
| Panel Mount Type | Without | Cable Termination | IDC |
| Termination Style | IDC | 1st Contact Gender | Socket (Female) |
| Mating Orientation | Without | Number of Contacts | 6 |
| Termination Finish | 带有 | Contact Termination | Locking Lance |
| Insulation Diameter | 1.52 mm [ .06 in ] | Number of Positions | 6 |
| Compatible Shell Size | MTA .100 头和 MTA .100 IDC 柱形连接器 | Contact Length - Post | 电源 |
| Mounting Hole Diameter | 带有 | Contact Finish - Mating | 锡 |
| Contact Layout, Typical | 2.54 [0.100] | Surface Mount Land Size | Without |
| Contact Finish Thickness | 3µin (0.08µm) | Small Diameter Recovered | No |
| Wire Gauge or Range - mm2 | 0.3-0.4² [22] | Static Discharge Shielding | 带有 |
| Jacket (Insulation) Thickness | 1.27 – 1.77 µm, 50 – 69.685 µin | ||
Product Info
| Note | 肋之间的条纹可能会减少 | Type | IDC Connector |
| Gender | F | Series | MTA-100 |
| Features | Closed End | Sealable | 否 |
| Manufacturer | AMP | Product Type | MTA-100 Connectors |
| Connection Type | Wire | Number of Positions Omitted | None |
Environmental
| Operating Temperature | -55 – 105 °C [ -67 – 221 °F ] | ||
Documents & Media
Similar Parts
2-644486-6
te connectivity / amp
Conn Shrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 6POS .100 TIN Header straight 6 way Pin MTA-100 Headers & Wire Housings SHROUDED HEADER 6P Straight Post tin Conn Shrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector6 PositionsConnector Type = Header - PinMTA-100 Product LineWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR HEADER 6POS, 2.54MM MTA-100SHROUDEDHDR,06PMTA100SHRDEDHDRASSYSN TE Connectivity MTA-100 系列 6路 2.54mm节距 直角 公 IDC 连接器 , 通孔 06P MTA100 SHRDED HDR ASSY SN
2-644488-6
te connectivity / amp
Conn Shrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 6POS .100 TIN Conn Shrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole Product Highlights:Header6 PositionsConnector Style = PlugContact Type = PinMTA-100 Product LineSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP Connector: wire-board; MTA-100; socket; male; PIN:6; shrouded; THT 06P MTA100 SHRD HDR F/L R/A SN
644486-6
TE Connectivity / AMP
Headers & Wire Housings SHROUDED HEADER 6P Straight Post tin MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT .100 6POS TIN Conn Shrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Conn Shrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
3-644456-6
te connectivity / amp
Conn Unshrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 6POS .100 TIN Header 6 way pin 2.54mm MTA-100 Headers & Wire Housings NARROW FLT HDR 6P Straight Post Conn Unshrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 6Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR HEADER, 6WAY, 0.1IN MTA-100HEADER-TIN,06PMTA100HDRASSY(NARROW) TE Connectivity MTA-100 系列 2.54mm节距 6路 (1排) 直 引脚管座, 焊接端接, 5A , 通孔 06P MTA100 HDR ASSY (NARROW)
641124-6
te connectivity / amp
Conn Wire to Board HDR 6 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 6POS STR .100 15GOLD Headers & Wire Housings 06P MTA100 HDR ASSY P/STR 15AU 06P MTA100 HDR ASSY P/STR 15AU 06P MTA100 HDR ASSY P/STR 15AU Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
640455-6
te connectivity / amp
Conn Wire to Board HDR 6 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 6POS .100 TIN Headers & Wire Housings POLARIZED HEADER 6P Right Angle Post tin Conn Wire to Board HDR 6 POS 2.54mm Solder RA Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 6Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP MTA-100HEADER-TIN,06PMTA100HDRASSYSQR/APOL 06P MTA100 HDR ASSY SQ R/A POL
644803-6
te connectivity / amp
Conn Shrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG .100 6POS TIN Conn Shrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

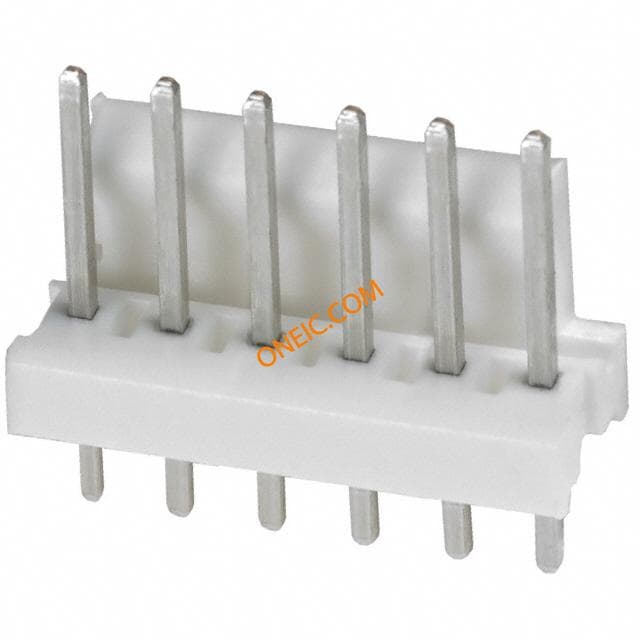

640454-6
te connectivity / amp
Conn Wire to Board HDR 6 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 6POS .100 TIN TE Connectivity MTA-100 Series 2.54mm Pitch 6 Way 1 Row Straight PCB Header, Solder Termination, 5A Headers & Wire Housings POLARIZED HEADER 6P Straight Post tin Conn Wire to Board HDR 6 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 6Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HEADER, VERTICAL, 0.1", 6WAY Header,Polarized;MTA-100;6;250VAC;Polyester;Tin;CopperAlloy;0.100in. TE Connectivity MTA-100 系列 2.54mm节距 6路 (1排) 直 PCB 针座, 焊接端接, 5A , 通孔 06P MTA100 HDR ASSY SQ STR POL
2-644861-6
te connectivity / amp
Conn Shrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 6POS .100 TIN Headers & Wire Housings HDR 06P VRT SHROUD Conn Shrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 6Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR HEADER 6POS, 2.54MM TE Connectivity MTA-100 系列 2.54mm节距 6路 (1排) 直 PCB 针座, 焊接端接, 5A , 通孔 06P MTA100 SHRD HDR,W/O PEG SN
3-641213-6
te connectivity / amp
Conn Wire to Board HDR 6 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 6POS .100 30AU Headers & Wire Housings POLARIZED HEADER 6P Straight Post gold Conn Wire to Board HDR 6 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 6Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 06P MTA100 HDR ASSY PO/ST LF
3-644457-6
te connectivity / amp
Conn Unshrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RT/A 6POS .100 TIN Headers & Wire Housings NARROW FLT HDR 6P Right Angle Post Conn Unshrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR HEADER, 6WAY, 0.1IN 06P MTA100 HDR ASSY R/A NARROW
644877-6
te connectivity / amp
Conn Wire to Board HDR 6 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 6POS R/A .100 TIN Headers & Wire Housings 06P MTA100 HDR ASSY POL RET BND Conn Wire to Board HDR 6 POS 2.54mm Solder RA Thru-Hole Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 06P MTA100 HDR ASY POL,RET BND

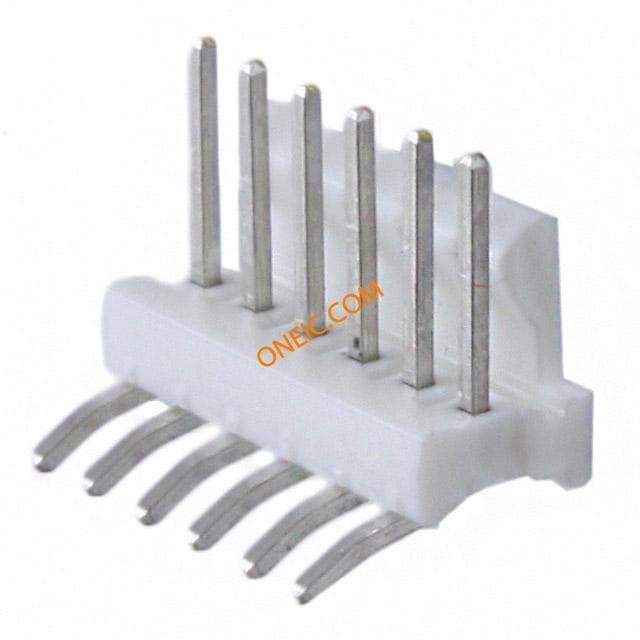

644875-6
