3-641215-6
| Manufacturer | |
| Description | Conn Wire to Board HDR 6 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 6POS .100 30AU TE Connectivity MTA-100 Series 2.54mm Pitch 6 Way 1 Row Straight PCB Header, Solder Termination, 5A Headers & Wire Housings FRICTION LCK HDR 6P Straight Post gold Conn Wire to Board HDR 6 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 6Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR HEADER 6POS, 2.54MM MTA-100HEADERGOLD,06PMTA100HDRASSYFL/ST30AU TE Connectivity MTA-100 系列 2.54mm节距 6路 (1排) 直 PCB 针座, 焊接端接, 5A , 通孔 06P MTA100 HDR ASSY FL/ST 30AU |
| Category |
Business
| Product Category | Headers & Wire Housings | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85366910 |
| Leadfree Defin | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Range deg/s | :TE - MTA-100 Series | Voltage Rating | 250 V ac |
| Switch Function | Friction Lock | Contact Resistance | 6 mohm |
| Voltage - Rated AC | 250 | Current Rating (Max) | 5A |
| Voltage - Supply (Min) | 250VAC | ||
Mechanical
| Color | Natural | Depth | 5.71 mm |
| Pitch | 2.54 mm | Height | 10.03 mm |
| Weight | 0.00068 | Packaging | Bulk |
| Shrouding | No | Termination | Solder |
| Contact Type | Male Pin | 2nd Connector | With |
| Contact Shape | Square | Housing Color | White |
| Mounting Type | Vertical | Connector Type | Header, Unshrouded |
| Contact Finish | Gold Over Nickel | Fastening Type | Friction Lock |
| Mounting Style | Through Hole | Number of Rows | 1 |
| Connector Usage | Header | Locking Feature | Friction Lock |
| Contact Material | Copper Alloy | Housing Material | Polyester |
| Length - Overall | 15.24 mm | Mounting Feature | Without |
| Panel Mount Type | Without | Primary Material | InterconnectSystem |
| Size / Dimension | 0.64 [.025] | Termination Style | Through Hole |
| 1st Contact Gender | Pin (Male) | Mating Orientation | Without |
| Number of Contacts | 6 | Contact Termination | :Through Hole Vertical |
| Number of Positions | 6 | Backshell Interrupts | Without |
| Contact Length - Mating | 0.295" (7.49mm) | Contact Material - Post | Copper Alloy |
| Termination Post Length | 3.56 [0.140] | Contact Finish Thickness | 30µin (0.76µm) |
| Small Diameter Recovered | No | ||
Product Info
| Type | Wire to Board | Gender | HDR |
| Series | MTA-100 | Manufacturer | AMP |
| Product Type | MTA-100 Connectors | Connection Type | Printed Circuit Board |
| Application Specifics | Wire-to-Board | Number of Positions Loaded | All |
| Number of Positions Omitted | None | ||
Environmental
| Operating Temperature | -55C to 105C | ||
Similar Parts
3-641243-6
te connectivity / amp
Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece Headers & Wire Housings 06 CIR MTA-100 CONN BLUE LF MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 6POS 26AWG .100 BLUE 06 CIR MTA-100 CONN BLUE LF
3-644702-6
te connectivity / amp
Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece Headers & Wire Housings 06P MTA100 CONN ASSY F/T LF MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 6POS 22AWG .100 RED 06P MTA100 CONN ASSY F/T LF 06P MTA100 CONN ASSY F/T LF Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
3-643814-6
te connectivity / amp
Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 6POS 24AWG MTA100 6w IDC closed end connector MTA-100 Headers & Wire Housings CLOSED WITH TABS 6P white tin 24 AWG Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 6Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR RECEPTACLE, 6POS, 2.54MM CONNECTOR,RECEPTACLE,MTA-100,6POSITION,CLOSEDEND,POLARIZED,WHITE Connector: wire-board; MTA-100; plug; female; PIN:6; polarized Cable socket, straight 6P, 3-643814-6, TE Connectivity TE Connectivity MTA-100 系列 6路 2.54mm节距 直角 母 IDC 连接器 , 电缆安装 06P MTA100 CONN ASSY POL RIB
3-644540-6
te connectivity / amp
Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 6POS 22AWG MTA100 Headers & Wire Housings FEED THRU W/TAB 6P red tin 22 AWG Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 6Mating Type = ReceptacleConnector Type = Feed ThruWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR RECEPTACLE, 6POS, 2.54MM TE Connectivity MTA-100 系列 6路 2.54mm节距 母 IDC 连接器 , 电缆安装 06P MTA100 CONN ASSY F/T POL
3-641192-6
te connectivity / amp
Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 6POS 26AWG .100 BLUE Headers & Wire Housings REC 06P C/E 26AWG W/O TABS Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:Connector Assembly6 PositionsConnector Style = ReceptacleContact Type = ReceptacleConnector Design = Closed EndSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 06P MTA100 CONN ASSY BLU LF
3-640440-6
te connectivity / amp
Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 6POS 22AWG MTA100 6 way MTA cable mount skt,2.54mm 22awg Headers & Wire Housings CLOSED W/O TABS 6P red tin 22 AWG Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 6Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board Application, Wire-to-Wire ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HOUSING, 22AWG, 6WAY WIRE-BOARD CONNECTOR RECEPTACLE, 6POS, 2.54MM IDCReceptacle,Closed-EndWithoutPolarizingTab,22AWG,Red,6pos. Connector: wire-board; MTA-100; plug; female; PIN:6; tinned; 2.54mm Cable socket, straight 6P, 3-640440-6, TE Connectivity TE Connectivity MTA-156 系列 6路 2.54mm节距 直角 电缆安装 母 IDC 连接器 06P MTA100 CONN ASSY 22AWG RED
3-643828-6
te connectivity / amp
Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 6POS 26AWG MTA-100 Headers & Wire Housings 06P MTA100 CONN ASSY LF 06P MTA100 CONN ASSY LF 06P MTA100 CONN ASSY LF Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
3-640471-6
te connectivity / amp
Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount T/R MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 6POS 28AWG .100 GREEN Headers & Wire Housings 06P MTA100 CONN ASSY 06P MTA100 CONN ASSY TAPE LF
3-641239-6
te connectivity / amp
Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 6POS 26AWG .100 BLUE Headers & Wire Housings 06P MTA100 CONN ASSY BLU LF MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:MTA-100 Connectors6 PositionsMating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 06P MTA100 CONN ASSY BLU LF
3-641244-6
te connectivity / amp
Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 6POS 28AWG .100 GREEN Headers & Wire Housings 06P MTA100 CONN ASSY GREN LF 06P MTA100 CONN ASSY GREN LF
3-641535-6
te connectivity / amp
Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Headers & Wire Housings 6 POS RECPT 24 AWG CONN RECEPT 6POS 24AWG MTA100
3-644497-6
te connectivity / amp
Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 6POS 26AWG MTA-100 Headers & Wire Housings 06P MTA100 CONN ASSY BLK LF 06P MTA100 CONN ASSY BLK LF
3-641190-6
te connectivity / amp
Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 6POS 22AWG .100 RED Headers & Wire Housings REC 06P C/E 22AWG W/O TABS Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 6Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 06P MTA100 CONN ASSY RED LF
643815-6
te connectivity / amp
Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 6POS 26AWG MTA100 Headers & Wire Housings CLOSED WITH TABS 6P blue tin 26 AWG Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:Connector6 PositionsConnector Type = ReceptacleConnector Style = Closed EndMTA-100 Product LineSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 06P MTA100 CONN ASSY POL RIB

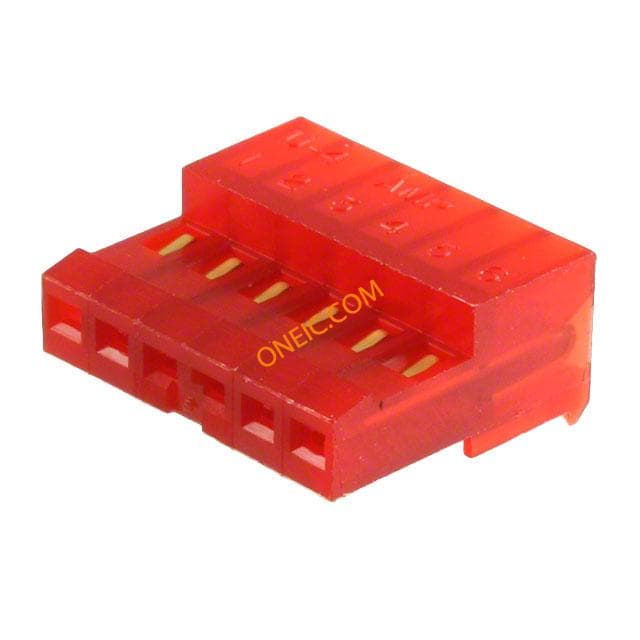

3-641237-6
