284065-6
| Manufacturer | |
| Description | Conn Shrouded Header HDR 12 POS 5.08mm Solder ST Thru-Hole Pluggable Terminal Blocks HDR 6P STR 5.08mm Terminal Block Connectors TERM BLOCK HDR 12POS VERT 5.08MM Terminal Block Connectors Product Highlights:ConnectorConnector Type = HeaderShroudedHousing Color = GreenNot Side StackableSearch Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end TERMI-BLOK HDR 180, 5MM P.MULT |
| Category |
Business
| Product | Pluggable Terminal Blocks | Other Names | A98150 |
| Standard Pack | 100 | Product Category | Pluggable Terminal Blocks |
| Standard Package | Bulk | Factory Pack Quantity | 100 |
Compliance
| RoHS | RoHS Compliant | Material Flammability Rating | UL 94 V-0 |
Electrical
| Current | 12A | Voltage | 300V |
| Voltage Rating | 300 VAC | Voltage - Rated AC | 300 |
| Current - Trip (It) | 15 | Current Rating (Max) | 15 A |
Mechanical
| Color | Green | Pitch | 5.08 mm |
| End Style | 带有 | Packaging | Bulk |
| Body Color | 绿色 | Termination | Solder |
| Length - Pin | 3.5 mm [ .138 in ] | 2nd Connector | 是 |
| Mounting Type | Vertical | Connector Type | 印刷电路板 |
| Contact Finish | Tin | Flange Feature | 是 |
| Number of Rows | 2 | Insert Material | 磷青铜 |
| Contact Material | Phosphor Bronze | Housing Material | Polyamide (PA) |
| Header Orientation | Vertical | Number of Contacts | 12 |
| Number of Positions | 12 | Terminal Block Type | Header, Male Pins, Shrouded (4 Side) |
| Thread/Screw/Hole Size | 不带 | ||
Product Info
| Type | Shrouded Header | Gender | HDR |
| Features | Side Stacking (Interlocking) | Number of Levels | 2 |
| Interconnect System | 带有 | Positions Per Level | 6 |
| Side-by-Side Stacking | 否 | ||
Documents & Media
Similar Parts
284041-6
te connectivity / amp
Conn Terminal Block F 6 POS 5.08mm Screw ST Cable Mount 15A/Contact Pluggable Terminal Blocks PLUG 6P VERT 5.08mm Terminal Block Connectors TERM BLOCK PLUG 6POS 5.08MM Conn Terminal Block F 6 POS 5.08mm Screw ST Cable Mount 15A/Contact Product Highlights:ConnectorConnector Type = Plug (left-hand)Housing Color = GreenSide StackableWithout Screw FlangeSearch Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end TERMINAL BLOCK VERTICAL PLUG S

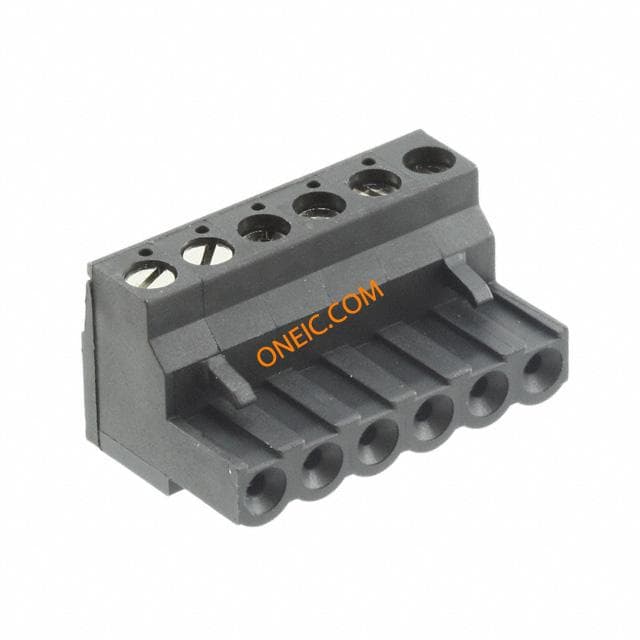

796635-6
te connectivity / amp
Conn Terminal Block F 6 POS 5.08mm Screw RA Cable Mount 15A/Contact TERM BLOCK PLUG 6POS STR 5.08MM Pluggable Terminal Blocks 0508 PLG 06P STR BLK 30-12 Conn Terminal Block F 6 POS 5.08mm Screw RA Cable Mount 15A/Contact Product Highlights:ConnectorConnector Type = PlugNot ShroudedHousing Color = BlackSide StackableSearch Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end TE Connectivity Buchanan 系列 5.08mm 节距 6 路 公 黑色 直 插头, 印刷电路板安装, 夹紧螺钉端接 6 POS 5.08MM R/A PLUG,TRM BLK
1986160-6
te connectivity / amp
Conn Housing PL 6 POS 5.08mm Crimp ST Cable Mount Pluggable Terminal Blocks Crimp Style housing 5.08 Gre Eurostyle Terminal Blocks TERM BLOCK PLUG 6POS STR 5.08MM Crimp Style housing, 5.08, Green, 6 posn Crimp Style housing, 5.08, Green, 6 posn Search Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end
1-1986160-6
te connectivity / amp
CRIMP STYLE HOUSING, 5.08, GRA Pluggable Terminal Blocks CRIMP STYLE HOUSING 5.08 GRAY 6 POSN TERM BLOCK PLUG 6POS STR 5.08MM
284047-6
te connectivity / amp
Conn Terminal Block F 6 POS 5.08mm Screw ST Cable Mount 15A/Contact Pluggable Terminal Blocks 6P 12-30 AWG TIN Terminal Block Connectors TERM BLOCK PLUG 6POS 5.08MM TERMI-BLOK VERTICAL PLUG STACK TERMI-BLOK VERTICAL PLUG STACK Search Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end

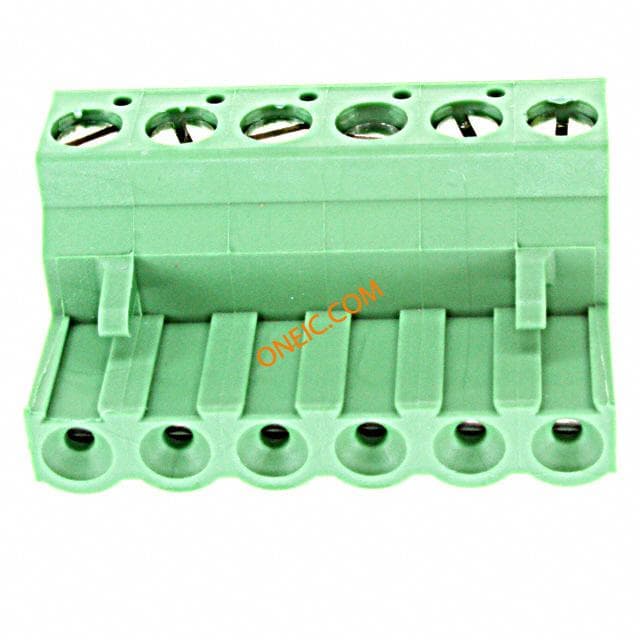

796634-6
