284047-6
| Manufacturer | |
| Description | Conn Terminal Block F 6 POS 5.08mm Screw ST Cable Mount 15A/Contact Pluggable Terminal Blocks 6P 12-30 AWG TIN Terminal Block Connectors TERM BLOCK PLUG 6POS 5.08MM TERMI-BLOK VERTICAL PLUG STACK TERMI-BLOK VERTICAL PLUG STACK Search Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end |
| Category |
Business
| Product | Pluggable Terminal Blocks | Standard Pack | 200 |
| Product Category | Pluggable Terminal Blocks | Standard Package | Bulk |
| Factory Pack Quantity | 200 | ||
Compliance
| RoHS | RoHS Compliant | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94 V-0 |
Electrical
| Current | 15A | Voltage | 300V |
| Voltage Rating | 300 VAC | Voltage - Supply | 300 |
| Voltage - Rated AC | 300 | Current - Trip (It) | 15 |
| Current Rating (Max) | 15 A | ||
Mechanical
| Color | Green | Pitch | 5.08 mm |
| Packaging | Bulk | Body Color | 绿色 |
| Cable Exit | 侧 | Lead Style | Side |
| Screw Size | M3 | Wire Gauge | 12-30 AWG |
| Termination | Screw | 2nd Connector | 否 |
| Housing Color | Green | Mounting Type | Cable Mount |
| Connector Type | Plug (right-hand) | Contact Finish | Tin |
| Flange Feature | Without | Number of Rows | 1 |
| Screw Material | Brass | Insert Material | 磷青铜 |
| Plug Wire Entry | 90° | Contact Material | Phosphor Bronze |
| Housing Material | Polyamide (PA) | Package Quantity | 200 |
| Pitch - Connector | Side | Number of Contacts | 6 |
| Number of Positions | 6 | Terminal Block Type | Plug, Female Sockets |
| Terminal Screw Finish | 镍 | Thread/Screw/Hole Size | 黄铜 |
| Center Contact Material | 5.08 [0.200] | Screw Material - Plating | Nickel |
| Wire Gauge or Range - AWG | 30-12 | Wire Gauge or Range - mm2 | 12 |
Product Info
| Type | Terminal Block | Gender | F |
| Features | Retention Latches (Wire Side) | Manufacturer | Buchanan |
| Product Type | Connector | Side Stackable | Yes |
| Number of Levels | 1 | Number of Stages | 不带 |
| Interconnect System | Without | Positions Per Level | 6 |
| Side-by-Side Stacking | 是 | ||
Similar Parts

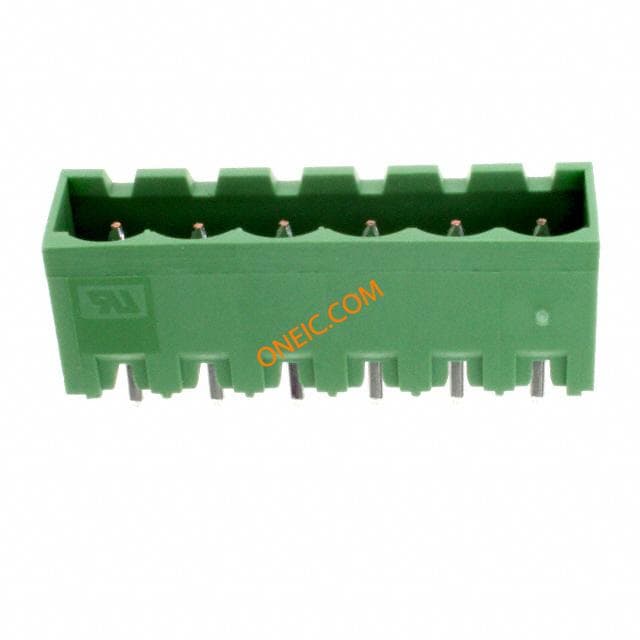

796636-6
te connectivity / amp
Conn Shrouded Header HDR 6 POS 5.08mm Solder ST Thru-Hole TERM BLOCK HDR 6POS VERT 5.08MM Pluggable Terminal Blocks 0508 HDR 06P VRT GRN C/E Conn Shrouded Header HDR 6 POS 5.08mm Solder ST Thru-Hole Product Highlights:ConnectorConnector Type = HeaderShroudedHousing Color = GreenNot StackedSearch Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end Conn;TermBlk;PCB;Header;SnglLvl;ClosedEnd;Sldr;6Pole;5.08mmPitch;Buchanan 6POS 5.08MM CE VRT HDR,TRM BLK

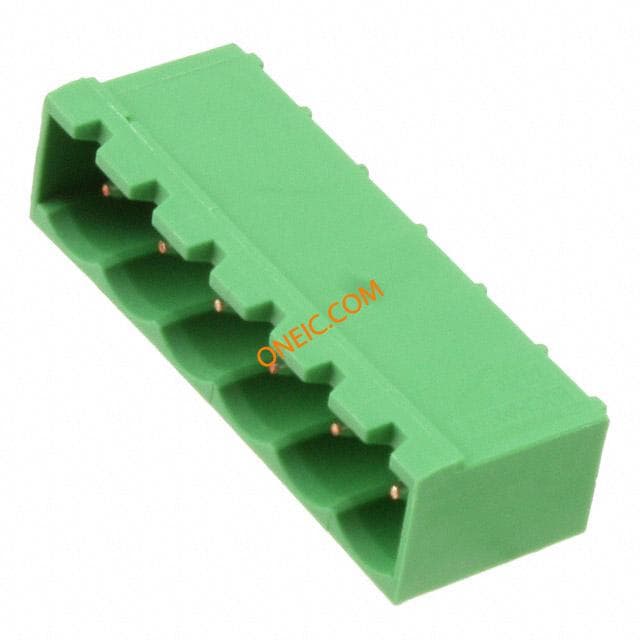

796638-6
