280377-2
| Manufacturer | |
| Description | Conn Wire to Board HDR 2 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER 2POS R/A GOLD T/H TE Connectivity AMPMODU Series 2.54mm Pitch 2 Way 1 Row Right Angle PCB Header, Solder Termination Headers & Wire Housings 2P HDR SHROUDED 15AU Conn Wire to Board HDR 2 POS 2.54mm Solder RA Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = SingleNumber of Positions = 2Mating Post Length = 6.60 mmSearch Keywords:board to board, AMPMODU, pcb connectors, HEADER, SHROUDED, RIGHT ANGLE, 2WAY 2WAYSINGLEROWR/A Socket; wire-board; male; PIN:2; 2.54mm; THT; AMPMODU MOD II PCB header 1 x 2P, 280377-2, TE Connectivity TE Connectivity AMPMODU Mod II 系列 2.54mm节距 2路 (1排) 直角 PCB 针座, 焊接端接 , 通孔 2P MODU II SHRD HDR,RT ANG, 0.38AU |
| Category |
Business
| Tradename | AMPMODU | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 1500 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Range deg/s | :TE - AMPMODU Mod II Series | Switch Function | Detent Windows |
Mechanical
| Color | Black | Depth | 14.9 mm |
| Pitch | 2.54 mm | Height | 5 mm |
| Weight | 0.002 | Packaging | Bulk |
| Orientation | angled 90° | Row Spacing | 2.54 mm |
| Termination | Solder | Contact Type | Male Pin |
| Lead Spacing | :2.54mm | Pitch - Post | 2.54 [.100] |
| 1st Connector | No | 2nd Connector | With |
| Housing Color | Black | Mounting Type | Right Angle |
| Connector Type | Shrouded | Contact Finish | Gold |
| Mounting Style | Through Hole | Number of Rows | 1 |
| Package / Case | 3-Sided | Locking Feature | Detent Windows |
| Profile (W x H) | Standard | Contact Material | Brass |
| Housing Material | Thermoplastic Glass Reinforced | Length - Overall | 7.7 mm |
| Mounting Feature | Without | Package Quantity | 1,000 |
| Panel Mount Type | Without | Connector - Cable | socket |
| Termination Style | Through Hole | 1st Contact Gender | Pin (Male) |
| Color - Connectors | :Black | Number of Contacts | 2 |
| Contact Termination | :Through Hole Right Angle | Number of Positions | 2 |
| Length - Post (Mating) | 6.6 mm | Contact Length - Mating | 6.60 [0.260] |
| Surface Mount Land Size | No | Termination Post Length | 3.50 [0.138] |
| Contact Finish Thickness | 15µin (0.38µm) | Contact Material - Plating | gold plated |
| 1st Connector Mounting Feature | 1x2 | ||
Product Info
| Type | Wire to Board | Gender | HDR |
| Series | AMPMODU | CAD Drawing | 3D CAD Model |
| Manufacturer | AMP | Product Type | Header |
| Adapter Series | AMPMODU MOD II | Number of Units | 1 |
| Selectively Loaded | No | Number of Positions Loaded | All |
Environmental
| Temperature | No | Operating Temperature | -55 â +105 |
Documents & Media
Similar Parts

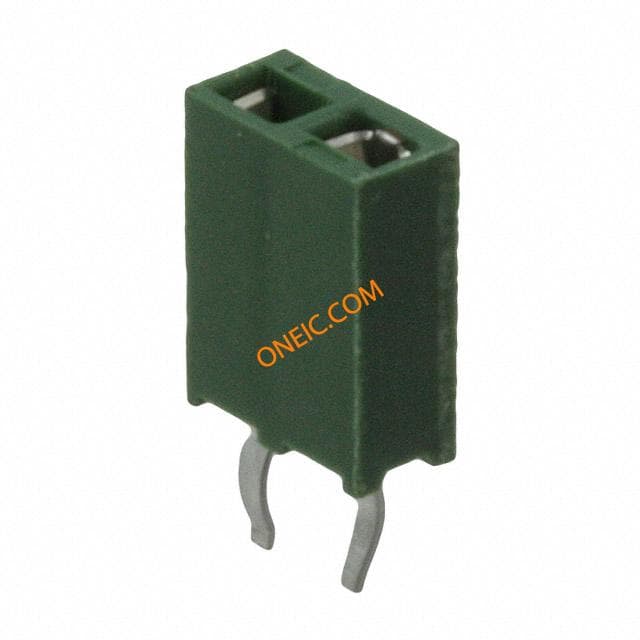

215297-2
