925369-2
| Manufacturer | |
| Description | Conn Housing RCP 2 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RCPT HOUSING 2POS CRIMP AMP MODU 2-economy socket housing 2W Headers & Wire Housings HSG RECPT 1X02P Conn Housing RCP 2 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingHousing Type = Housing - ReceptacleHousing Accepts Contact Type = Receptacle2.54 mm CenterlineRow-to-Row Spacing = 2.54 mmSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE HOUSING, 1ROW, 2WAY Crimp housing Pitch2.54 mm Poles 2 Single row / straight / with strain relief AMPMODU MOD IV, 925369-2, TE Connectivity TE Connectivity AMPMODU Mod IV 系列 2.54mm 节距 2 路 直 母 电缆安装 PCB 壳体 MOD 4 REC.HSG 1X02P |
| Category |
Business
| Tradename | AMPMODU | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 1000 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | Not relevant for lead free process | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94-HB | ||
Electrical
| Range deg/s | :TE - AMPMODU Mod IV Series | Current Rating (Max) | :3A |
Mechanical
| Color | Green | Depth | 16.7mm |
| Pitch | 2.54 mm | Length | 5.08mm |
| Weight | 0.0015 | Packaging | Bulk |
| Cable Exit | With | Row Spacing | 2.54 mm |
| Termination | :Crimp | Contact Type | Female Socket |
| Pitch - Post | :2.54mm | 2nd Connector | Without |
| Housing Color | Green | Mounting Type | Straight |
| Connector Type | Crimp | Contact Finish | :- |
| Number of Rows | 1 | Package / Case | Receptacle |
| Contact Material | :- | Housing Material | Nylon |
| Length - Overall | 5.08 mm | Package Quantity | 100 |
| Termination Style | Crimp | 1st Contact Gender | Socket (Female) |
| Mating Orientation | Without | Number of Contacts | 2 |
| Contact Termination | Crimp | Number of Positions | 2 |
| Center Contact Material | 2.54 [.100] | 1st Connector Mounting Type | :Cable |
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | RCP | Series | Mod IV |
| Preloaded | No | Coded, Keyed | No |
| Product Type | Housing | For Use With/Related Products | Centerline Mod IV Connector |
Documents & Media
Similar Parts
141603-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Headers & Wire Housings MOD-4 REC.CONTACT .100 AMPMODU Headers, Housings & Contacts CONN SOCKET 26AWG 30GOLD CRIMP 141603-3 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Type = ReceptacleTerminate To WireWire Insulation Diameter = 1.40 mmWire Range = 0.12-0.15; [26] mm [AWG]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE MOD-4 REC.CONTACT
167021-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Reel Headers & Wire Housings RECPT 0.032-0.09 AU AMPMODU Mod IV, V CONN SOCKET 28-32AWG GOLD CRIMP Crimp contact 32-28 awg ICP gold Mod IV Contact SKT Crimp ST Cable Mount Reel Product Highlights:ContactContact Type = ReceptacleTerminate To WireWire Insulation Diameter = 1.20 mmWire Range = 0.03-0.09² [32-28] mm [AWG]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CRIMP SOCKET, GOLD CONTACT, CRIMP, SOCKET, 32-28AWG, REEL CRIMPCNTACT32-28AWGAU TE Connectivity AMPMODU Mod IV 系列 母 压接接线端子, 压接, 镀金镀镍触点 MOD-4 REC.CONT.SCP.
2-167301-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Reel .100 AMPMODU Headers, Housings & Contacts CONN SOCKET 26-20AWG CRIMP TIN Crimp contact 24-20 awg ICP tin Mod IV Headers & Wire Housings CONTACT 24-20AWG Contact SKT Crimp ST Cable Mount Reel Product Highlights:Receptacle ContactWire Termination Type = CrimpTerminate To WireWire Insulation Diameter = 1.40 mmWire Range = 0.20-0.60² [24-20] mm [AWG]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CONTACT, CRIMP, RECEPTACLE, 24-20AWG CONTACT, CRIMP, SOCKET, 24-20AWG, REEL Crimpcontact24-20awgICPtinModIV Contact; female; 0.2÷0.6mm2; AMPMODU MOD IV; tinned; crimped TE Connectivity AMPMODU Mod IV 系列 母 压接接线端子, 压接, 镀锡触点 MOD-4 REC.CONT.SCP

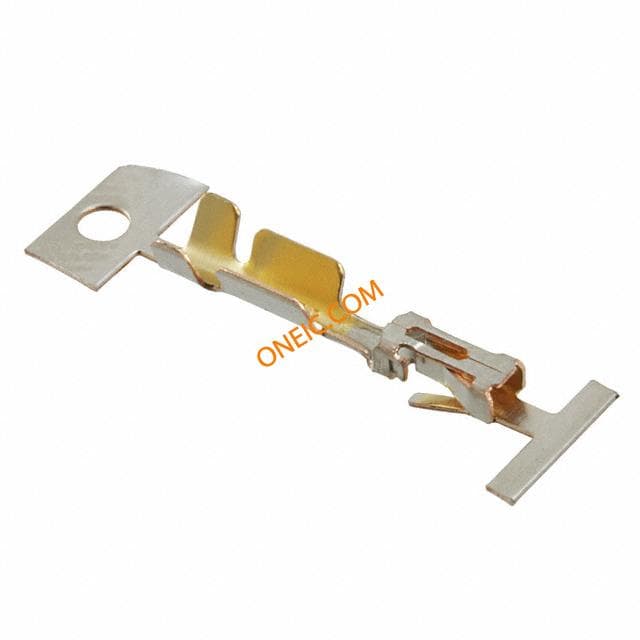

2-167301-4
