点击放大查看
213522-2
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Pack | 1 | Product Category | Pin & Socket Connectors |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | RoHS compliant, ELV compliant | UL Flammability Rating | UL 94V-0 |
Electrical
| Voltage - I/O High | No | ||
Mechanical
| Size | Short | Color | Black |
| Width | 21.03 mm [ .828 in ] | Height | 52.07 mm [ 2.05 in ] |
| Packaging | Bulk | Body Color | 黑色 |
| Shield Type | One-piece | Contact Form | No |
| Housing Color | Black | Mounting Type | Without |
| Cable Diameter | 7.62 â 11.43 [0.300 â 0.450] | Cable Material | Steel |
| Connector Type | V.35 | Number of Rows | 4 |
| Screw Material | Steel | Shell Material | 母端, 母端 |
| Connector Usage | Receptacle | Shield Material | Anodized Aluminum |
| Housing Material | Phenolic | Mounting Feature | None |
| Package Quantity | Loose Piece | Panel Mount Type | 不带 |
| Pin Hole Diameter | Without | Termination Style | 插座 |
| Diameter - Outside | 11.43 mm [ .45 in ] | Number of Positions | 34 |
| Compatible Shell Size | 插头连接器套件 | Thread/Screw/Hole Size | Turnable |
| Clamp Material - Plating | Nickel | Screw Material - Plating | Zinc |
| Jacket (Insulation) Material | Stainless Steel | ||
Product Info
| Note | Housings are keyed to assure proper location of the male and female jackscrews | Type | Kit |
| Style | One-Piece | Gender | Receptacle |
| Features | Jackscrew | Product Type | Cable Connector Kit |
| Hardware Type | Jackscrew | RF Family/Standard | 213522 |
| Assembly Configuration | Kit | ||
Environmental
| Operating Range | 不密封 | Operating Temperature | -55 – 150 °C [ -67 – 302 °F ] |
Documents & Media
Online Document
Similar Parts
66103-4
te connectivity / amp
$6.8286
Details
66428-4
te connectivity / amp
$13.9998
Details
1-66106-5
te connectivity / amp
$2.7397
Details
66360-4
te connectivity / amp
$9.6002
Details
66332-7
te connectivity / amp
$4.0079
Details
1-66098-9
te connectivity / amp
$2.4521
Details
66106-8
te connectivity / amp
$5.2839
Details
66098-6
te connectivity / amp
$8.2297
Details
66099-3
te connectivity / amp
$6.3471
Details
1-66360-2
te connectivity / amp
$4.6376
Details
1-66331-4
te connectivity / amp
$4.1283
Details
66100-8
te connectivity / amp
$4.3581
Details
66099-4
te connectivity / amp
$4.0800
Details
66108-7
te connectivity / amp
$2.4276
Details

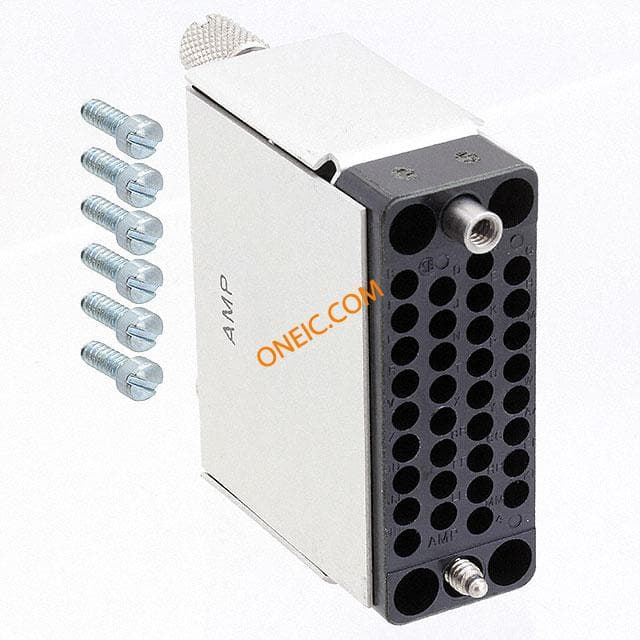

213300-2
