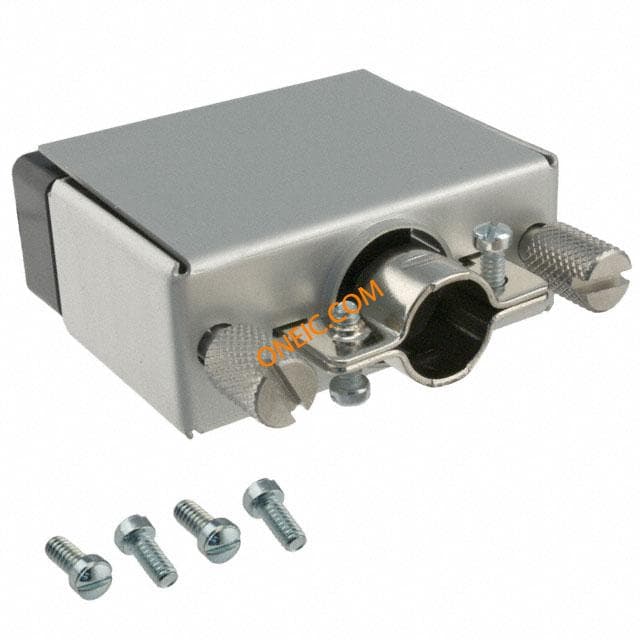

213522-1
| Manufacturer | |
| Description | Connector Accessories Kit Assembly Receptacle 34 POS Loose Piece M Series Connectors M-SERIES KIT 34P V.35 Connector,M series hsng ass,rcp,cble,34W Pin & Socket Connectors V.35 FEMALE CONNECT Connector Accessories Kit Assembly Receptacle 34 POS Loose Piece Product Highlights:Cable Connector KitHardware Type = JackscrewNumber of Positions = 34Phenolic Housing MaterialReceptacleSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, RECEPTACLE KIT, SERIES M, 34WAY CableConnectorKit,Receptacle Connector: V35; plug; female; PIN:34; w/o terminals; for cable
sale Female cable connector V35 34, 213522-1, TE Connectivity |
| Category |
Business
| Product Category | Pin & Socket Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | Not relevant for lead free process | Approval Agency | :CSA, UL |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL94V-0 |
Electrical
| Voltage Rating | 600 V | Voltage - I/O High | No |
| Connector - Voltage Input | w/o terminals | ||
Mechanical
| Size | Short | Color | Black |
| Depth | 21mm | Width | 41.15mm |
| Length | 52mm | Weight | 0.056 |
| Packaging | Bulk | Shield Type | One-piece |
| Size - Body | 50 x 40 x 26mm | Termination | Screw |
| Contact Form | No | Contact Type | Socket |
| Housing Color | Black | Mounting Type | Without |
| Angle of Throw | Straight | Cable Diameter | 11.05 â 13.83 [0.435 â 0.545] |
| Cable Material | Steel | Connector Type | V.35 |
| Contact Finish | BrightTin-LeadOrated(50Cycles),Gold(500Cycles) | Mounting Style | for cable |
| Number of Rows | 4 | Screw Material | Steel |
| Connector Usage | Receptacle | Locking Feature | knurled screws |
| Shield Material | Anodized Aluminum | Housing Material | Phenolic |
| Length - Overall | 2.05" | Mounting Feature | None |
| Package Quantity | Loose Piece | Primary Material | InterconnectSystem |
| Size / Dimension | 52 x 41.15 x 21mm | Connector - Cable | plug |
| Pin Hole Diameter | Without | Number of Contacts | 34 |
| Number of Positions | 34 | Thread/Screw/Hole Size | Turnable |
| Clamp Material - Plating | Nickel | Screw Material - Plating | Zinc |
| Jacket (Insulation) Material | Stainless Steel | ||
Product Info
| Note | Housings are keyed to assure proper location of the male and female jackscrews | Type | Kit |
| Style | One-Piece | Gender | Receptacle |
| Series | M | Features | Jackscrew |
| Manufacturer | MSeries | Product Type | Cable Connector Kit |
| Hardware Type | Jackscrew | Number of Units | 1 |
| RF Family/Standard | 213522 | ||
Environmental
| Operating Temperature | :150°C | ||
Documents & Media
