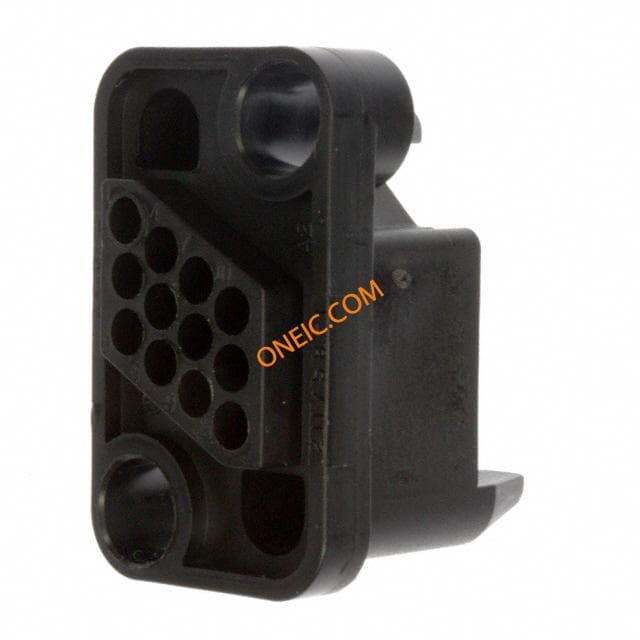

211759-1
| Manufacturer | |
| Description | Conn Housing RCP 12 POS 5.08mm ST Metrimate Connectors CONN RECEPT 12 POS METRIMATE Housing,recp,Metrimate,4 row,12Way,panel Pin & Socket Connectors 12 POS RECEPTACLE Conn Housing RCP 12 POS 5.08mm ST Product Highlights:HousingDrawer Connector ConfigurationDrawer Style = StandardNumber of Positions = 12ReceptacleSearch Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp, HOUSING, RECEPTACLE, 12WAY METRIMATEDRAWERCONN,RECEPTHSG,12POSN,METRIMATE TE Connectivity Metrimate 系列 4 行 5.08mm 节距 12 路 直 母 压接连接器外壳 RECEPT HSG,12 POSN,METRIMATE |
| Category |
Business
| Other Names | 2117591 | Product Category | Pin & Socket Connectors |
| Standard Package | Bulk | Factory Pack Quantity | 150 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | Wave solder capable to 240°C / Wave solder capable to 260°C / Wave solder capabl | RoHSELV Compliance | RoHS compliant / ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage | 600.0 | Current Rating (Max) | 13 A |
| Voltage - Supply (Min) | 600VAC | ||
Mechanical
| Color | Black | Depth | 40.77mm |
| Pitch | 5.08 mm | Width | 30.23mm |
| Height | 40.77 mm | Length | 49.33mm |
| Weight | 0.002 | Packaging | Bulk |
| 2nd Connector | Without | Housing Color | Black |
| Mounting Type | Straight | Connector Type | Housing |
| Contact Finish | Gold | Mounting Style | PCB |
| Number of Rows | 4 | Connector Style | Drawer |
| Connector Usage | Drawer | Contact Material | Brass |
| Housing Material | Thermoplastic - GF | Length - Overall | 49.33 mm |
| Mounting Feature | Without | Primary Material | InterconnectSystem |
| Termination Style | Solder | 1st Contact Gender | Socket (Female) |
| Color - Connectors | :Black | Connector - Sensor | Without |
| Number of Contacts | 12 | Number of Positions | 12 |
| Center Contact Finish | 5.08 | ||
Product Info
| Note | Positions 1 & 12 should not be used with ground pin. | Type | Housing |
| Gender | RCP | Series | AMP Metrimate |
| Features | Mating Guide | CAD Drawing | 3D CAD Model |
| Coded, Keyed | No | Manufacturer | AMP |
| Product Type | Housing | Drawer Quantity | Standard |
| Other Specifications | No | For Use With/Related Products | Drawer Pin & Socket Connector |
Environmental
| Operating Temperature | -55C to 130C | ||
Documents & Media
