208459-1
| Manufacturer | |
| Description | Conn Metal Shell CPC PIN 24 POS Crimp ST Panel Mount 24 Terminal 1 Port Circular Plastic Connectors CONN RECEPT CMC 24POS STD SER 1 24 Pole Female Straight Panel Mount Industrial & Automation Circular Connector, Shell Size 28 with Male Contacts Standard Circular Connector REC SQUARE STD 28-24 Conn Metal Shell CPC PIN 24 POS Crimp ST Panel Mount 24 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 24ReceptacleFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC RECEPTACLE, STD CPC1, 24WAY Connector;MetalShellCPC;Recept.Assy;24Pos.;Sz.28;Series1;PanelMount Receptacle CPC1 Poles=24, accepts male contacts / with flange, 208459-1, TE Connectivity TE Connectivity 24路 面板安装 直向 连接器 插座 , 公触点 CMC RECPT ASSEMBLY SIZE 28 |
| Category |
Business
| Lead Time | 28 Days | Tradename | CPC Series 1 |
| Subcategory | Connector Circular | Product Category | Standard Circular Connector |
| Standard Package | Bulk | Factory Pack Quantity | 10 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Compliance | No | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | RoHS compliant / ELV compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Resistance | None | Voltage Rating | :250V |
| Voltage - Working | :250V | Number of Channels | 24.0 |
| Current Rating (Max) | :13A | ||
Mechanical
| Color | Black | Sealed | No |
| Weight | 0.098 | Packaging | Bulk |
| Shell Size | 28 | Orientation | Keyed |
| Shell Style | Receptacle | Termination | Crimp |
| Thread Size | 1-3/8 - 18 UNEF-2A | Contact Size | 16 |
| Contact Type | Pin | Housing Color | Black |
| Mounting Type | Panel Mount | Angle of Throw | Straight |
| Connector Type | Housing | Fastening Type | Threaded Coupling |
| Housing Finish | Nickel | Mounting Style | Flange with Threaded Inserts |
| Package / Case | :Zinc Alloy | Connector Style | Receptacle |
| Insertion Angle | :28-24 | Material - Body | :Thermoplastic |
| Housing Material | Thermoplastic - GF | Primary Material | CircularPlasticConnector |
| 1st Contact Gender | Male | Color - Connectors | :Nickel |
| Mating Orientation | Keyed | Number of Contacts | 24 |
| Insulation Diameter | 3.81 | Number of Positions | 0.0 |
| Shell Size - Insert | Metal | Mounting Hole Diameter | 0.145" |
| Shell Material, Finish | Zinc, Nickel Plated | 1st Connector Mounting Type | :Panel |
| 2nd Connector Mounting Feature | Standard | ||
Product Info
| Note | Contacts Not Provided | Type | Metal Shell CPC |
| Gender | RCP | Series | Series 1 |
| Arrangement | 28-24 | CAD Drawing | 3D CAD Model |
| Manufacturer | AMP | Product Type | Housings |
| Other Specifications | Without | Application Specifics | Commercial |
Environmental
| Ingress Protection | Without | Operating Temperature | +125°C |
Documents & Media
Similar Parts
208945-8
te connectivity / amp

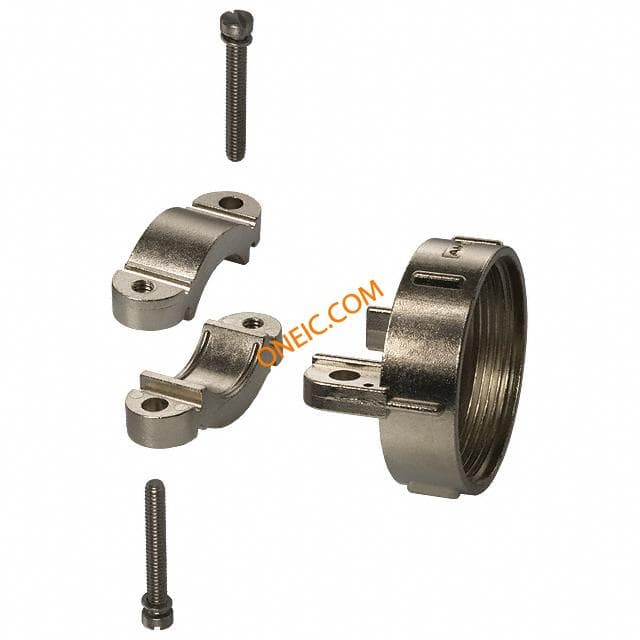

Connector Accessories Clamp Zinc Alloy Nickel Finish Black CPC Accessories CONN CABLE CLAMP SIZE 28 METAL Cable clamp shell,Size 28 Standard Circular Connector CABLE CLAMP SIZE 28 Connector Accessories Clamp Zinc Alloy Nickel Finish Black Product Highlights:Cable ClampShell Size = 28Body Style = StraightCable Diameter (Max.) = 11.43 - 23.83 mmZinc Alloy Cable Clamp MaterialSearch Keywords:Circular Plastic, Metal Shell CPC, cabled power, Lighting Interconnection, input/output, box to box, CABLE CLAMP, CPC, SIZE 28 Clamp,Cable;CPCConnectors;28;0.450in.to0.938in.(Max.) CPC Series 28 Shell Size Black Color Straight Cable Clamp Accessories Cable Clamp Standard,Housing size 28, Size 1-7/16-18, 208945-8, TE Connectivity TE Connectivity 黑色 电缆夹, 19.05mm 捆束直径 SZ 28 UNASSM KIT,CMC
