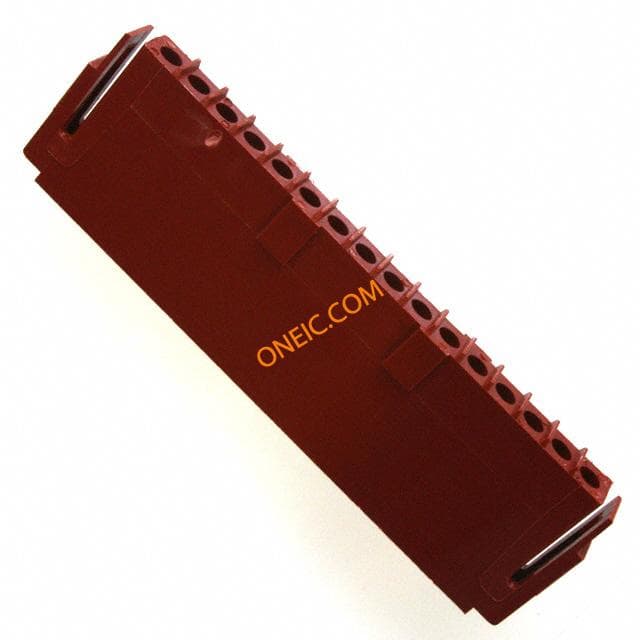

207543-1
| Manufacturer | |
| Description | Conn Housing RCP 16 POS 5mm ST Metrimate Connectors CONN RECEPT 16 POS METRIMATE Housing 16 way pin In-line Metrimate Pin & Socket Connectors METRIMATE RECP HSG Conn Housing RCP 16 POS 5mm ST Product Highlights:HousingIn-Line Connector ConfigurationNumber of Positions = 16ReceptacleWithout Coaxial SocketSearch Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp, Housing16waypinIn-lineMetrimate HSG,RECEPT 16 POSN,METRIMATE |
| Category |
Business
| Product Category | Pin & Socket Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 75 | ||
Compliance
| RoHS | Not applicable / RoHS Compliant | UL Rating | 已认证, 获得认可 |
| Leadfree Defin | Not relevant for lead free process | UL File Number | E28476 |
| CSA File Number | LR16455 | Standard Number | CSA, UL |
| RoHSELV Compliance | RoHS compliant / ELV compliant | Approval Agency Marking | 是 |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage | 600.0 | Voltage Rating | 600 V |
| Voltage - Supply | 600 | Current Rating (Max) | 14 A |
| Voltage - Supply (Min) | 600VAC | ||
Mechanical
| Color | Red | Depth | 33.7mm |
| Pitch | 5 mm | Width | 11.65mm |
| Height | 11.65 mm | Length | 86.7mm |
| Packaging | Bulk | Body Color | 红色 |
| Cable Type | 绞线 | Contact Type | Male Pin |
| 2nd Connector | With | Housing Color | Red |
| Mounting Type | Straight | Connector Type | Housing |
| Contact Finish | Gold | Fastening Type | Latch Lock |
| Mounting Style | Free Hanging | Number of Rows | 1 |
| Shaft Diameter | Without | Connector Usage | In-Line |
| Locking Feature | Locking Tab | Contact Material | Copper Alloy |
| Housing Material | Thermoplastic - GF | Length - Overall | 86.7 mm |
| Mounting Feature | Without | Package Quantity | 150 |
| Panel Mount Type | 不带 | Termination Style | Crimp |
| 1st Contact Gender | Socket (Female) | Connector - Sensor | Without |
| Number of Contacts | 16 | Contact Termination | Crimp and Solder |
| Number of Positions | 16 | Center Contact Finish | 5.0 |
| Compatible Shell Size | 插头外壳 | Contact Layout, Typical | 同轴 |
Product Info
| Note | A Dimension is Maximum for 16-position housing. | Type | Housing |
| Gender | RCP | Coded, Keyed | No |
| Manufacturer | AMP | Product Type | Housing |
| Other Specifications | No | For Use With/Related Products | PCB Connector |
Environmental
| Operating Temperature | -55C to 130C | ||
