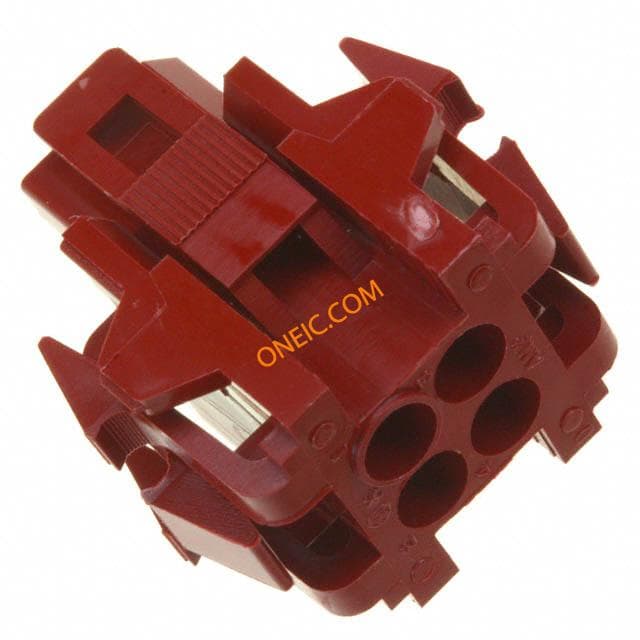

207119-2
| Manufacturer | |
| Description | Conn Power PIN 4 POS 5mm Solder ST Thru-Hole 4 Terminal 1 Port Metrimate Connectors CONN HDR PIN 4 POS METRIMATE TIN Pin & Socket Connectors 4 POS SQ GRID CONN 180 METRIMATE PIN HEADER ASSY,4P |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 2071192 | Product Category | Pin & Socket Connectors |
| Standard Package | Bulk | Factory Pack Quantity | 180 |
Compliance
| RoHS | Contains lead / RoHS non-compliant | UL Rating | 已认证, 获得认可 |
| Leadfree Defin | Wave solder capable to 240°C | UL File Number | E28476 |
| CSA File Number | LR16455 | Standard Number | CSA, UL |
| RoHSELV Compliance | Not ELV/RoHS compliant | Approval Agency Marking | 是 |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage | 600.0 | Voltage Rating | 600 V |
| Voltage - Supply | 600 | Current Rating (Max) | 14 |
Mechanical
| Color | Red | Pitch | 5 mm |
| Width | 18.16 | Length | 22.61 |
| Packaging | Bulk | Body Color | 红色 |
| Row Spacing | 0.196" (4.98mm) | Termination | Solder |
| Contact Type | Solder Post | Pitch - Post | .196 |
| 2nd Connector | With | Housing Color | Red |
| Mounting Type | Through Hole | Connector Type | Header |
| Contact Finish | Tin | Fastening Type | Latch Lock |
| Mounting Style | PCB | Number of Rows | 2 |
| Shaft Diameter | Without | Connector Usage | Square Grid |
| Height (Inches) | 11.79 | Locking Feature | Locking Tab |
| Contact Material | Copper Alloy | Housing Material | Thermoplastic - GF |
| Mounting Feature | Without | Package Quantity | 180 |
| Panel Mount Type | 通孔 - 焊接 | Primary Material | Copper Alloy |
| Termination Style | Solder | 1st Contact Gender | Pin (Male) |
| Connector - Sensor | Without | Number of Contacts | 48 |
| Number of Positions | 4 | Center Contact Finish | 5.0 |
| Compatible Shell Size | 插头外壳 | Contact Length - Post | 信号（数据） |
| Mounting Hole Diameter | 带有 | Contact Layout, Typical | 网络 |
| Termination Post Length | 4.6 | Contact Finish Thickness | 150µin (3.81µm) |
| Contact Material - Mating | Tin | ||
Product Info
| Note | Pin and socket headers do not mate. | Type | Power |
| Gender | PIN | Series | Metrimate |
| Coded, Keyed | No | Manufacturer | AMP |
| Product Type | Connector | Other Specifications | No |
| Number of Positions Loaded | All | ||
Environmental
| Operating Temperature | -55 – 130 °C [ -67 – 221 °F ] | Thermal Resistance of Package | 1.6 mm [ .063 in ] |
