207015-1
| Manufacturer | |
| Description | Conn Housing PL 4 POS 5mm ST Metrimate Connectors CONN PLUG 4 POS METRIMATE Housing,plug,Metrimate,sq grid,4 Way Pin & Socket Connectors HSGPLUG4PSM METRIC Conn Housing PL 4 POS 5mm ST Product Highlights:HousingSquare Grid Connector ConfigurationNumber of Positions = 4PlugWithout Coaxial SocketSearch Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp, CONN, INLINE PLUG & SOCKET Connector,SoftShell;Plug;4;14A(Max.);600;Thermoplastic;Red;0.197in. Crimp housing 5 mm Poles 4 Contact DesignFemale Metrimate, 207015-1, TE Connectivity TE Connectivity Metrimate 系列 2 行 5mm 节距 4 路 直 公 压接连接器外壳 HSG,PLUG,4 POSN,SM METRIC |
| Category |
Business
| Product Category | Pin & Socket Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 800 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Standards | IEC |
| Tariff No | 85369010 | Leadfree Defin | Not relevant for lead free process |
| Approval Agency | CSA,UL,VDE | RoHSELV Compliance | RoHS compliant / ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage | 600.0 | Voltage Rating | 600 V |
| Current Rating (Max) | 14 A | Voltage - Supply (Min) | 600VAC |
Mechanical
| Color | Red | Depth | 27.15mm |
| Pitch | 5 mm | Height | 27.15 mm |
| Length | 17.86mm | Weight | 0.00455 |
| Packaging | Bulk | Row Spacing | 0.197" (5.00mm) |
| Contact Type | Female Socket | Polarization | PolarizingTab |
| 2nd Connector | With | Housing Color | Red |
| Mounting Type | Straight | Angle of Throw | Straight |
| Connector Type | Housing | Contact Finish | :- |
| Fastening Type | Locking Ramp | Mounting Style | Panel |
| Number of Rows | 2 | Shaft Diameter | Without |
| Connector Usage | Square Grid | Locking Feature | Locking Latch |
| Contact Material | :- | Housing Material | Thermoplastic - GF |
| Length - Overall | 21.06 mm | Mounting Feature | Without |
| Package Quantity | 1,200 | Primary Material | InterconnectSystem |
| Pin Hole Diameter | 0.197" | 1st Contact Gender | Pin (Male) |
| Color - Connectors | :Red | Connector - Sensor | Without |
| Mating Orientation | Polarizing Tab | Number of Contacts | 4 |
| Contact Termination | Crimp and Solder | Number of Positions | 4 |
| Shell Size - Insert | :- | Center Contact Finish | 5.0 |
| 1st Connector Mounting Type | :Cable | ||
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | PL | Series | AMP Metrimate |
| CAD Drawing | 3D CAD Model | Coded, Keyed | No |
| Manufacturer | AMP | Product Type | Housing |
| Configuration | SquareGrid | Other Specifications | No |
| For Use With/Related Products | Square Grid Pin & Socket Connector | ||
Environmental
| Operating Temperature | -55C to 130C | ||
Documents & Media
Similar Parts
66601-1
te connectivity / amp
III+ SKT,18-14,TIN-LEAD,LP Multimate CONN SOCKET 14-18AWG TIN CRIMP Contact SKT Crimp ST Cable Mount Loose Piece Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketTin-Lead over Nickel (30) Contact Mating Area Plating MaterialWire Range = 0.80-2.00² [18-14] mm [AWG]Insulation Diameter = 2.79 - 3.81 mmBrass Contact Base MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts TYPEIIICONTACTSLP,III+SKT,18-14,TIN-LEAD,LP
66183-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Multimate CONN SOCKET 20-26AWG GOLD SOLDER Contact Solder Socket 26-20AWG Multimate Pin & Socket Connectors CONTACT PINS .062 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketGold (30) over Nickel (30) Contact Mating Area PlatingWire Range = 0.12-0.50² [26-20] mm [AWG]Copper Alloy Contact MaterialGold Termination End PlatingSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, SOCKET, 26-20AWG, SOLDER Contact,Multimate;Socket;16;CopperAlloy;Signal;GoldoverNickel;Solder;26-20AWG MULTIMATE Type III+ Series 26-20 AWG Discrete Wire Solder Signal Socket Assembly Solder contact female, 66183-1, TE Connectivity TE Connectivity Type III+ 系列 母 压接接线端子, 焊接, 镀金镀镍触点 III+ SKT,SOLDER,30AU,10AU FLAS
66109-4
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Multimate CONN SOCKET 24-26AWG GOLD CRIMP Contact,female,26-24 awg,crimp Standard Circular Contacts GOLD SOCKET 26-24 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketGold (30) over Nickel (30) Contact Mating Area PlatingWire Range = 0.12-0.24² [26-24] mm [AWG]Insulation Diameter = .89 - 1.40 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts Contact;Socket;16;Brass;Signal;Gold(30)overNickel(30);26-24AWG MULTIMATE Type III+ Series 26-24 AWG Discrete Wire Crimp Signal Socket Assembly TE Connectivity Type III 系列 13A 母 压接端接 圆形 连接器 触芯, 使用于CPC 连接器、G 系列连接器、M 系列连接器, 26 → 24 AWG 线规格 III+ SKT,26-24,30AU/FL,LP
66424-6
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Multimate CONN SOCKET AWG 26-30 TIN CRIMP CONN SOCKET 26-30AWG TIN CRIMP Pin & Socket Connectors III+ SKT30-26 4000 66424-6 Contact SKT Crimp ST Cable Mount Strip Product Highlights:SocketBright Tin-Lead Contact Mating Area Plating MaterialWire Range = 0.05-0.15 [30-26] mm [AWG]Insulation Diameter = 1.02 - 1.52 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts III+ SKT,30-26,TIN-LEAD,STRIP
1-207119-0
te connectivity / amp
Conn Power PIN 4 POS 5mm Solder ST Thru-Hole 4 Terminal 1 Port Metrimate Connectors CONN HEADER PIN 4POS VERT GOLD Header vert 4 way Pin Metimate Pin & Socket Connectors 4P PIN HEADER GOLD METRIMATE Conn Power PIN 4 POS 5mm Solder ST Thru-Hole 4 Terminal 1 Port Product Highlights:HeaderSquare Grid Connector ConfigurationNumber of Positions = 4PinWithout Coaxial SocketSearch Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp, CONNECTOR, HEADER, 4WAY Headervert4wayPinMetimate TE Connectivity Metrimate 系列 工业电源 通孔 插头 , 14A额定电流, 600 V 交流/直流 METRIMATE PIN HDR ASY,4P LF
1-207119-1
te connectivity / amp
Conn Wire to Board PIN 4 POS 5mm Solder ST Thru-Hole Metrimate Connectors CONN HEADER PIN 4POS VERT GOLD Pin & Socket Connectors METRIMATE PIN HDR ASY,4P LF Conn Wire to Board PIN 4 POS 5mm Solder ST Thru-Hole Product Highlights:HeaderSquare Grid Connector ConfigurationNumber of Positions = 4PinWithout Coaxial SocketSearch Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp,
202237-5
te connectivity / amp
Contact SKT Solder ST Cable Mount Loose Piece Multimate CONN SKT .062 SLD POST TIN Contact Socket solder Multimate Pin & Socket Connectors TIN SOCKET SOLDER Contact SKT Solder ST Cable Mount Loose Piece Product Highlights:Socket with Solder TabBright Tin Contact Mating Area PlatingBrass Contact MaterialBright Tin Termination End PlatingType III+Search Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, SOCKET, SOLDER MULTIMATETypeIII+Contact,Socketw/SolderTab,Size16Contact,Tin MultiMate Connector Type III+ Tin Termination End Plating Pin Solder Tab TE Connectivity Type III+ 系列 13A 母 焊接端接 圆形 连接器 触芯, 使用于CPC 连接器、M 系列连接器, 16 AWG 线规格 III+ SOC,SOLTAB,TIN,LP
207119-3
te connectivity / amp

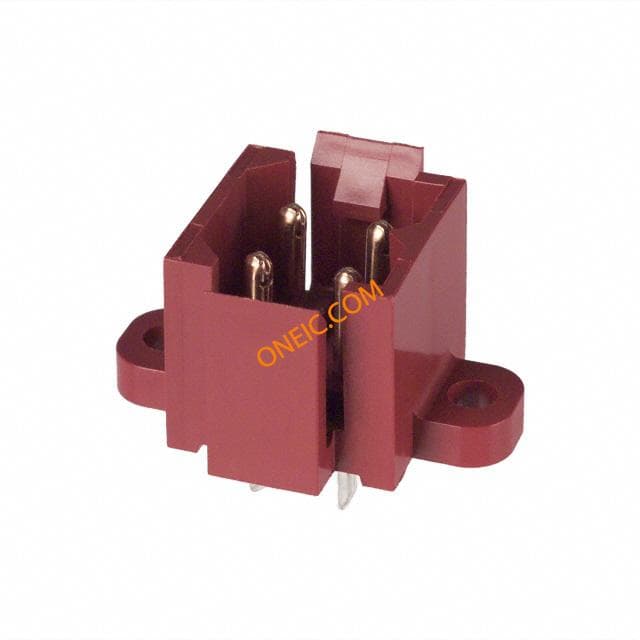

Conn Power PIN 4 POS 5mm Solder ST Thru-Hole 4 Terminal 1 Port Metrimate Connectors CONN HEADER PIN 4POS VERT GOLD Power to the Board METRIMATE PIN HDR 4P 126 Conn Power PIN 4 POS 5mm Solder ST Thru-Hole 4 Terminal 1 Port Product Highlights:HeaderSquare Grid Connector ConfigurationNumber of Positions = 4PinWithout Coaxial SocketSearch Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp, METRIMATE PIN HEADER ASSY,4P
1-66360-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Multimate Contacts CONN SOCKET 14-18AWG TIN CRIMP Type III Series Size 16 Female Circular Connector Contact, Crimp,Wire size 18 to 14AWG Pin & Socket Connectors TIN SOCKET 18-14 AWG Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketBright Tin Contact Mating Area Plating MaterialWire Range = 0.80-2.00² [18-14] mm [AWG]Insulation Diameter = 2.03 - 2.54 mmBrass Contact Base MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT SOCKET, TIN, 1.5-2.0MM MULTIMATETypeIII+Contact,Socket,18-14AWG,Crimp,Tin Contact; female; 0.8÷2mm2; 14÷18AWG; Type III+; tinned; crimped TE Connectivity Type III 系列 母 压接端接 圆形 连接器 触芯, 18 → 14 AWG 线规格 III+ SKT,18-14,TIN ,LP
1-66399-0
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Multimate CONN SOCKET 20-24AWG TIN CRIMP Multimate III Socket Contact 24-20 AWG Pin & Socket Connectors TIN SOCKET 24-20 AWG Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketGold (30) over Nickel (30) Contact Mating Area Plating MaterialWire Range = 0.20-0.60² [24-20] mm [AWG]Insulation Diameter = 2.03 - 2.54 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, SOCKET, 24-20AWG, CRIMP Contact;Socket;16;Brass;Signal;Gold(30)overNickel(30);Commercial;AMP Contact; female; 0.2÷0.6mm2; 20÷24AWG; Type III+; tinned; crimped III+ SKT,24-20,TIN ,LP
207119-2
te connectivity / amp

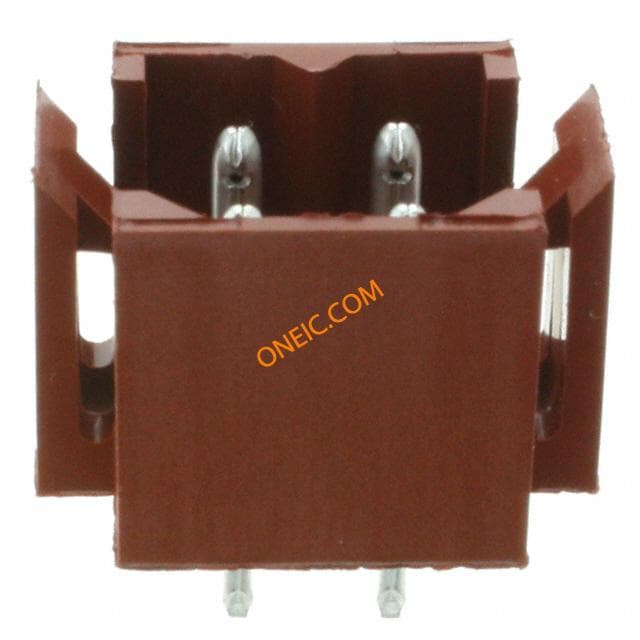

Conn Power PIN 4 POS 5mm Solder ST Thru-Hole 4 Terminal 1 Port Metrimate Connectors CONN HDR PIN 4 POS METRIMATE TIN Pin & Socket Connectors 4 POS SQ GRID CONN 180 METRIMATE PIN HEADER ASSY,4P
207119-8
te connectivity / amp

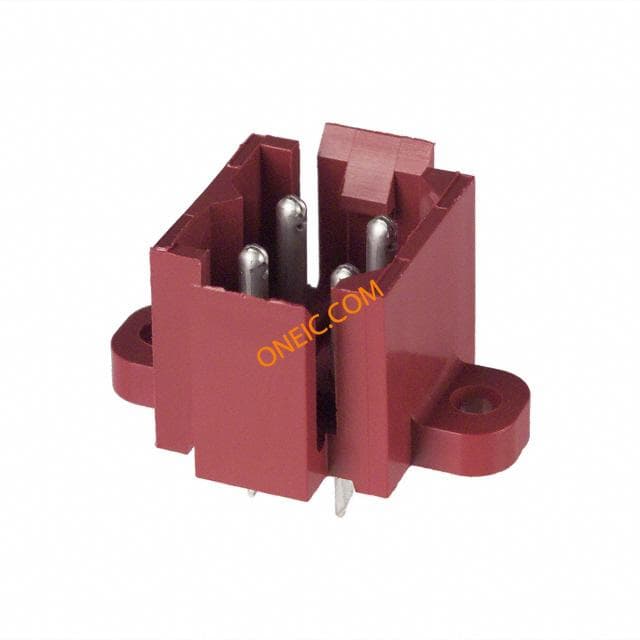

Conn Power PIN 4 POS 5mm Solder ST Thru-Hole 4 Terminal 1 Port Metrimate Connectors CONN HEADER PIN 4POS VERT TIN Header 4 way pin square grid Metrimate Pin & Socket Connectors 4P PIN HEADER TIN METRIMATE Conn Power PIN 4 POS 5mm Solder ST Thru-Hole 4 Terminal 1 Port Product Highlights:ConnectorConnector Type = HeaderSquare Grid Connector Configuration4 PositionsPinSearch Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp, METRIMATE PIN HDR ASY,4P LF
