206552-1
| Manufacturer | |
| Description | Conn CPC PIN 16 POS Crimp ST Panel Mount 16 Terminal 1 Port CPC Connectors CONN RECEPT CPC 16POS STD SER 1 ConnectorHousing,CPCRecept.Assy,16Pos Standard Circular Connector CPC RECPT SIZE 17-16 Conn CPC PIN 16 POS Crimp ST Panel Mount 16 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 16ReceptaclePinPreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC ConnectorHousing;CPCRecept.Assy;16Pos;Sz17;Series1;PanelMnt;StdSex TE Connectivity Series 1 系列 16路 法兰安装 直向 连接器 插座 , 公触点, 螺纹接合 CPC RECPT ASSEMBLY SIZE 17-16 |
| Category |
Business
| Lead Time | 28 Days | Tradename | CPC Series 1 |
| Subcategory | Connector Circular | Product Category | Standard Circular Connector |
| Standard Package | Trays | Factory Pack Quantity | 24 |
Compliance
| RoHS | Lead free / RoHS Compliant | Compliance | No |
| Rad Hardened | No | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | RoHS compliant, ELV compliant | UL Flammability Rating | UL 94V-0 |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Input | 1.209 | Fluid Resistance | 无 |
| Number of Channels | 16 | Connector - Voltage Input | 是 |
Mechanical
| Color | Black | Depth | 36.45 mm |
| Height | 36.45 mm | Sealed | No |
| Outline | 17 | Cable Exit | No |
| Shell Size | 17 | Orientation | 直 |
| Shell Style | Receptacle | Termination | Crimp |
| Thread Size | 15/16-20 UNEF-2A | Contact Form | 16Signal |
| Contact Type | Pin | Housing Color | Black |
| Mounting Type | Panel Mount | Pin or Socket | Pin |
| Angle of Throw | Straight | Connector Type | 母座 |
| Contact Finish | Gold | Mounting Style | Panel |
| Number of Pins | 0 | Shell Material | 母端, 母端 |
| Connector Style | Receptacle | Connector Usage | Threaded |
| Panel Thickness | 0.125" | Contact Material | Copper Alloy |
| Housing Material | Thermoplastic | Length - Overall | 30.71 mm |
| Package Quantity | 24 | Panel Mount Type | Square Flange |
| Primary Material | CircularPlasticConnector | Termination Style | Wire |
| 1st Contact Gender | Male | Mating Orientation | Keyed |
| Number of Contacts | 16 | Number of Positions | 16 |
| Shell Size - Insert | All Plastic | Mounting Hole Diameter | 3.81 [.150] |
| 1st Connector Mounting Type | Panel | 2nd Connector Mounting Feature | Standard |
| Shell Size - Insert (Convert To) | 17-16 | ||
Product Info
| Type | CPC | Gender | RCP |
| Series | Series 1 | Features | ReverseGender |
| Preloaded | Yes | Arrangement | 17-16 |
| Manufacturer | Series1 | Product Type | Connector |
| RF Family/Standard | 206552 | Other Specifications | Without |
| Application Specifics | Commercial | Convert To (Adapter End) | Circular, Male Pins, 16 Pos, 17 Shell Size |
| Convert From (Adapter End) | Circular, Male Pins, 16 Pos, 17 Shell Size | ||
Environmental
| Seal Rating | IP65 | Operating Range | 不密封 |
| Ingress Protection | IP65 | Operating Temperature | -55C to 105C |
Documents & Media
Similar Parts

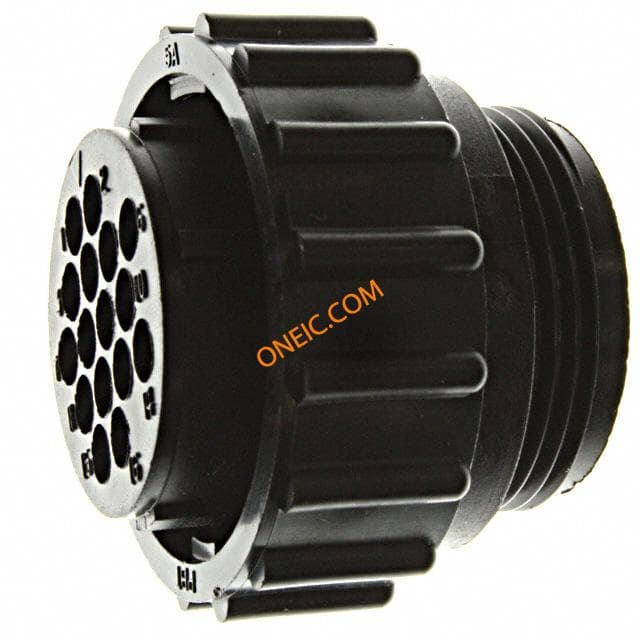

206554-1
