206485-1
| Manufacturer | |
| Description | Conn CPC SKT 9 POS ST Cable Mount 9 Terminal 1 Port CPC Connectors CONN PLUG CPC 9POS STD SER 2 9 Pole Male Straight Cable Mount Industrial & Automation Circular Connector, Shell Size 11 with Female Contacts Standard Circular Connector PLUG STANDARD 11-9 Conn CPC SKT 9 POS ST Cable Mount 9 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 9PlugFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC PLUG, SOCKET CONTACT, 9WAY CIR CONNECTOR PLUG SIZE 11, 9POS FREE HANGING ConnectorHousing;CPCPlugAssy;9Pos.;Sz.11;Series2;FreeHang;StdSex Connector: circular; Series: CPC Series 2; plug; female; PIN:9 Plug CPC2 Poles=9, accepts female contacts / Free hanging/cable mount, 206485-1, TE Connectivity TE Connectivity 9路 电缆安装 直向 连接器 插座 CPC PLUG ASSEMBLY SIZE 11-9 |
| Category |
Business
| Lead Time | 28 Days | Tradename | CPC Series 2 |
| Subcategory | Connector Circular | Product Category | Standard Circular Connector |
| Standard Package | Bulk | Factory Pack Quantity | 100 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Compliance | No | Rad Hardened | No |
| Leadfree Defin | Not relevant for lead free process | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage Rating | 600 V ac | Voltage - Working | :250V |
| Number of Channels | 9 | Current Rating (Max) | :7.5A |
| Insulation Resistance | :5000Mohm | Connector - Voltage Input | w/o terminals |
Mechanical
| Color | Black | Sealed | No |
| Weight | 0.51 | Diameter | 24.76 mm |
| Packaging | Bulk | Cable Exit | No |
| Shell Size | 11 | Orientation | Keyed |
| Shell Style | Plug | Thread Size | 5/8 - 24 UNEF-2A |
| Contact Form | 9Signal | Contact Size | 20 |
| Contact Type | Crimp | Housing Color | Black |
| Mounting Type | Cable Mount | Angle of Throw | Straight |
| Connector Type | Plug for Female Contacts | Fastening Type | Threaded |
| Mounting Style | Free Hanging | Package / Case | :Glass filled nylon 6.6 |
| Connector Style | Plug | Insertion Angle | :11-9 |
| Locking Feature | threaded joint, internal thread | Material - Body | :Thermoplastic |
| Housing Material | Thermoplastic | Length - Overall | 20.32 mm |
| Package Quantity | 10 | Primary Material | CircularPlasticConnector |
| Connector - Cable | plug | Termination Style | Wire |
| 1st Contact Gender | Female | Color - Connectors | :Black |
| Mating Orientation | Keyed | Number of Contacts | 9 |
| Contact Tail Length | 20D | Insulation Diameter | 1.73 [0.068] |
| Number of Positions | 9 | Shell Size - Insert | All Plastic |
| Shell Material, Finish | Thermoplastic | 1st Connector Mounting Type | :Cable |
| 2nd Connector Mounting Feature | Standard | Shell Size - Insert (Convert To) | 11-9 |
Product Info
| Spg | 10 | Note | Contacts Not Provided |
| Type | CPC | Gender | PL |
| Series | Series 2 | Preloaded | No |
| Arrangement | 11-9 | Manufacturer | Series2 |
| Product Type | Connector | Adapter Series | CPC Series 2 |
| Number of Units | 1 | RF Family/Standard | 206485 |
| Other Specifications | Without | Application Specifics | Commercial |
| For Use With/Related Products | Socket Contacts | ||
Environmental
| Operating Temperature | :105°C | ||
Similar Parts
1658537-5
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip D-Sub Contacts SKT 24-20 PHBZ/SN Standard Cable Connectors CONN SOCKET 20-24AWG GOLD CRIMP 1658537-5 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)SocketWire Termination Type = CrimpWire Insulation Diameter = 1.27 - 1.52 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CONT,SOCKET,PLATED,20DF,STRIP,#20-24
206486-1
te connectivity / amp
Conn CPC PIN 9 POS Crimp ST Panel Mount 9 Terminal 1 Port CPC Connectors CONN RECEPT CPC 9POS STD SER 2 9 Pole Female Straight Panel Mount Industrial & Automation Circular Connector, Shell Size 11 with Male Contacts Standard Circular Connector RECP SQUARE STD 11-9 Conn CPC PIN 9 POS Crimp ST Panel Mount 9 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 9ReceptacleFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIRCULAR CONNECTOR, RCPT, 11-9, PANEL ConnectorHousing;CPCRecept.Assy;9Pos.;Sz11;Series2;PanelMnt;StdSex Connector: circular; Series: CPC Series 2; socket; male; PIN:9 Receptacle CPC2 Poles=9, accepts male contacts / with flange, 206486-1, TE Connectivity TE Connectivity 9路 面板安装 直向 连接器 插座 , 公触点 CPC RECPT ASSEMBLY SIZE 11-9
66504-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip D-Sub Contacts CRIMP SOCKET 24-20 Standard Cable Connectors CONN SOCKET 20-24AWG GOLD CRIMP AMPLIMITE HDP-20 socket crimp contact Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)SocketWire Termination Type = CrimpWire Insulation Diameter = 1.52 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CONTACT, SOCKET, 24-20AWG, CRIMP CRIMP SOCKET, 24-20AWG CONTACT, SOCKET, 24-20AWG, CRIMP, FULL REEL CONTACT,SOCKET,HDP-20,CRIMP,1.27-1.52MM HDP20 Series 20-24 AWG Gold Flash Crimp Socket D-Sub Contact TE Connectivity AMPLIMITE HDP-20系列 尺寸20触点 母 压接 信号 D-sub 连接器触点, 镀金镀镍 触点, 24 → 20 AWG 20 DF SCKT CONT
206486-2
te connectivity / amp
Conn CPC PIN 9 POS Crimp ST Cable Mount 9 Terminal 1 Port CPC Connectors CONN RECEPT CPC 9POS STD SER 2 9 Pole Female Straight Cable Mount Industrial & Automation Circular Connector, Shell Size 11 with Male Contacts Standard Circular Connector RECPT STD F.H. 11-9 Conn CPC PIN 9 POS Crimp ST Cable Mount 9 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 9ReceptacleFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC RECEPTACLE, PIN CONTACT, 9WAY ConnectorHousing;CPCRecept.Assy;9Pos.;Sz11;Series2;FreeHang;StdSex Receptacle CPC2 Poles=9, accepts male contacts / Free hanging/cable mount, 206486-2, TE Connectivity TE Connectivity 2 系列 9路 电缆安装 直向 连接器 插座 , 公触点, 螺钉固定接合 CPC RECPT ASSEMBLY SIZE 11-9
1658538-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip D-Sub Contacts SKT 28-24 BR/AU 20000 Standard Cable Connectors CONN SOCKET 24-28AWG GOLD CRIMP AMPLIMITE HDP-20 socket crimp contact Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)SocketWire Termination Type = CrimpWire Insulation Diameter = .76 - 1.02 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub D SUB CONTACT, SOCKET, 28-24AWG, CRIMP CONTACTFEMALECRIMP TE Connectivity AMPLIMITE HDP-20系列 尺寸20触点 母 压接 信号 D-sub 连接器触点, 镀金镀镍 触点, 28 → 24 AWG SOCKET CONT DUPL PLT STRIP HD-
66504-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Standard Cable Connectors CONTACT SKT 20-24AWG CRIMP GOLD Pin & Socket Connectors SOCKET 24-20AWG 50AU 20000 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)SocketPhosphor Bronze Contact Base MaterialWire Termination Type = CrimpSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub SOCKETCONTACT,20DF,PLATED SocketContact,20DF,Plated SOCKET CONTACT,20DF,PLATED

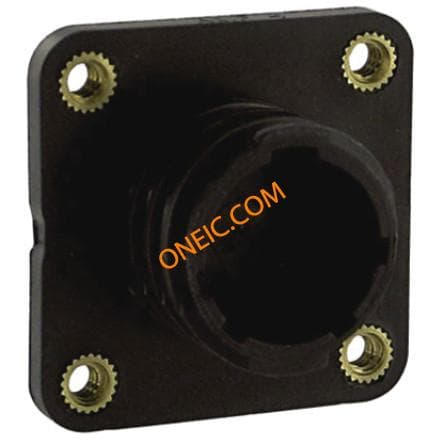

206852-8
