206438-1
| Manufacturer | |
| Description | Conn CPC SKT 57 POS Crimp ST Panel Mount 57 Terminal 1 Port CPC Connectors CONN RECEPT CPC 57POS REV SER 2 57 Pole Female Straight Panel Mount Industrial & Automation Circular Connector, Shell Size 23 with Female Contacts Standard Circular Connector REC SQUARE REV 23-57 Conn CPC SKT 57 POS Crimp ST Panel Mount 57 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 57ReceptacleFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC RECEPTACLE, SOCKET CONTACT, 57WAY ConnectorHousing;CPCRecept.Assy;57Pos;Sz23;Series2;PanelMnt;RevSex TE Connectivity 57路 面板安装 直向 连接器 插座 , 母触点 CPC RECPT ASSEMBLY SIZE 23-57 |
| Category |
Business
| Lead Time | 28 Days | Tradename | CPC Series 2 |
| Subcategory | Connector Circular | Product Category | Standard Circular Connector |
| Standard Package | Bulk | Factory Pack Quantity | 100 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Compliance | No | Rad Hardened | No |
| Leadfree Defin | Not relevant for lead free process | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage Rating | :250V | Voltage - Working | :250V |
| Number of Channels | 57 | Current Rating (Max) | :7.5A |
| Insulation Resistance | :5000Mohm | ||
Mechanical
| Color | Black | Depth | 44.45 mm |
| Height | 44.45 mm | Sealed | No |
| Weight | 0.025 | Packaging | Bulk |
| Cable Exit | No | Shell Size | 23 |
| Orientation | Keyed | Shell Style | Receptacle |
| Termination | Crimp | Thread Size | 1-3/8 - 18 UNEF-2A |
| Contact Form | 57Signal | Contact Size | 20 |
| Contact Type | Crimp | Housing Color | Black |
| Mounting Type | Panel Mount | Angle of Throw | Straight |
| Connector Type | Receptacle for Female Contacts | Fastening Type | Threaded |
| Mounting Style | Panel | Connector Style | Receptacle |
| Insertion Angle | :23-57 | Material - Body | :Thermoplastic |
| Panel Thickness | 0.125" | Housing Material | Thermoplastic |
| Length - Overall | 23.47 mm | Panel Mount Type | Square Flange |
| Primary Material | CircularPlasticConnector | Termination Style | Wire |
| 1st Contact Gender | Female | Color - Connectors | :Black |
| Mating Orientation | Keyed | Number of Contacts | 57 |
| Panel Cutout Shape | :40.9mm | Contact Tail Length | 20D |
| Insulation Diameter | 1.73 [0.068] | Number of Positions | 57 |
| Shell Size - Insert | All Plastic | Mounting Hole Diameter | 0.15" |
| Shell Material, Finish | Thermoplastic | 1st Connector Mounting Type | :Panel |
| 2nd Connector Mounting Feature | Reverse | Shell Size - Insert (Convert To) | 23-57 |
Product Info
| Note | Contacts Not Provided | Type | CPC |
| Gender | RCP | Series | Series 2 |
| Features | ReverseGender | Preloaded | No |
| Arrangement | 23-57 | Manufacturer | Series2 |
| Product Type | Connector | RF Family/Standard | 206438 |
| Other Specifications | Without | Application Specifics | Commercial |
| For Use With/Related Products | Socket Contacts | ||
Environmental
| Operating Temperature | :105°C | ||
Similar Parts
1658537-5
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip D-Sub Contacts SKT 24-20 PHBZ/SN Standard Cable Connectors CONN SOCKET 20-24AWG GOLD CRIMP 1658537-5 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)SocketWire Termination Type = CrimpWire Insulation Diameter = 1.27 - 1.52 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CONT,SOCKET,PLATED,20DF,STRIP,#20-24
66504-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip D-Sub Contacts CRIMP SOCKET 24-20 Standard Cable Connectors CONN SOCKET 20-24AWG GOLD CRIMP AMPLIMITE HDP-20 socket crimp contact Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)SocketWire Termination Type = CrimpWire Insulation Diameter = 1.52 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CONTACT, SOCKET, 24-20AWG, CRIMP CRIMP SOCKET, 24-20AWG CONTACT, SOCKET, 24-20AWG, CRIMP, FULL REEL CONTACT,SOCKET,HDP-20,CRIMP,1.27-1.52MM HDP20 Series 20-24 AWG Gold Flash Crimp Socket D-Sub Contact TE Connectivity AMPLIMITE HDP-20系列 尺寸20触点 母 压接 信号 D-sub 连接器触点, 镀金镀镍 触点, 24 → 20 AWG 20 DF SCKT CONT

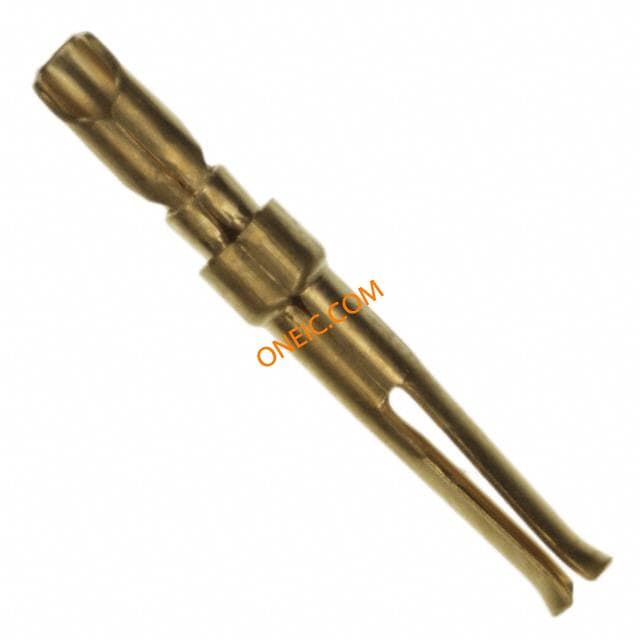

66569-3
