205204-9
| Manufacturer | |
| Description | Conn Housing PL 9 POS Crimp ST D-Sub Standard Connectors 9P PLUG ZINC Standard Cable Connectors CONN D-SUB HOUSING PLUG 9POS AMPLIMITE HDP-20 d-sub cable plug,9 pin Conn Housing PL 9 POS Crimp ST Product Highlights:ConnectorProduct Series = HDP-20 (Crimp Snap)Number of Positions = 9PlugWithout ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CONNECTOR, D-SUB SHELL, PLUG, SIZE 1 Conn;D-Sub;CablePlug;9Pos;STR;HDP-20Series;CrimpSnap;28-24AWG;MetalShell TE Connectivity AMPLIMITE HDP-20系列 9路 直 压接式 D-sub 连接器, 插头 CRIMP SNAP PLUG ASSY,SIZE 1 |
| Category |
Business
| Product Category | D-Sub Standard Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 800 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Standards | Insert,UL94V-0 | Tariff No | 85366990 |
| Leadfree Defin | Not relevant for lead free process | Approval Agency | ULRecognized,ULListedandCSACertified |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Voltage Rating | 250 VAC | Current Rating (Max) | 3.7/Contact A |
| Voltage - Input (Min) | 250VAC | Voltage - Supply (Min) | 250VAC |
Mechanical
| Color | Black | Depth | 17.7mm |
| Width | 12.54mm | Height | 12.54 mm |
| Length | 30.81mm | Weight | 0.005 |
| Packaging | Bulk | Shell Size | 1 |
| Wire Gauge | 18-28 AWG | Termination | Crimp |
| Contact Size | 20 | Contact Type | Signal |
| 2nd Connector | With | Housing Color | Black |
| Mounting Type | Straight | Shell Plating | Tin |
| Angle of Throw | Straight | Connector Type | Crimp Snap |
| Contact Finish | Tin over Copper | Flange Feature | Housing/Shell (Unthreaded) |
| Housing Finish | Zinc | Mounting Style | Wire |
| Number of Rows | 2 | Shell Material | Steel |
| Connector Style | D-Sub | Insert Material | Thermoplastic |
| Locking Feature | Mounting Holes | Material - Body | :Steel |
| Contact Material | Nylon | Housing Material | Nylon |
| Length - Overall | 30.81 mm | Primary Material | D-Subminiature |
| Grounding Indents | Without | Termination Style | Crimp |
| Number of Contacts | 9 | Dielectric Material | Polyamide (PA), Nylon, Glass Filled |
| Number of Positions | 9 | Shell Size - Insert | Full Metal Shell |
| Shell Finish Thickness | 200µin (5.08µm) | Shell Material, Finish | Steel, Yellow Trivalent Chromium Chromate Zinc Plated |
| Shell Size, Connector Layout | 1 (DE, E) | ||
Product Info
| Note | Plugs accept size 20 DF pin contacts. | Type | Housing |
| Grade | Standard | Gender | PL |
| Series | HDP-20 (Crimp Snap) | Manufacturer | HDP-20 |
| Product Type | Connector | Application Specifics | Commercial |
| For Use With/Related Products | :AMPLIMITE HDP-20 Series D Sub Contacts | ||
Environmental
| Operating Temperature | 105°C | ||
Documents & Media
Similar Parts
66506-3
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Standard Cable Connectors CONN PIN 20-24AWG GOLD CRIMP AMPLIMITE HDP-20 pin crimp contact 20 DF Standard Circular Contacts CRIMP PIN 24-20 Reel of 10000 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)PinWire Termination Type = CrimpWire Insulation Diameter = 1.52 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CONTACT, PIN, CRIMP CONTACT, CRIMP, PIN, 24-20AWG, REEL CONTACT,PIN,HDP-20,CRIMP,1.27-1.52MM TE Connectivity AMPLIMITE HDP-20系列 尺寸20触点 公 压接 信号 D-sub 连接器触点, 镀金镀镍 触点, 24 → 20 AWG 20 DF PIN
205203-8
te connectivity / amp
Conn Housing RCP 9 POS Crimp ST D-Sub Standard Connectors 9P SOCKET ZINC Standard Cable Connectors CONN D-SUB HOUSING RECEPT 9POS AMPLIMITE HDP-20 d-sub cable socket,9way Conn Housing RCP 9 POS Crimp ST Product Highlights:ConnectorProduct Series = HDP-20 (Crimp Snap)Number of Positions = 9ReceptacleWithout ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub Conn;D-Sub;CableSocket;9Pos;STR;HDP-20Series;CrimpSnap;28-24AWG;MetalShell TE Connectivity AMPLIMITE HDP-20系列 9路 直 压接式 D-sub 连接器, 插座 CRIMP SNAP RCPT ASSY,SIZE 1
205203-3
te connectivity / amp
Conn Housing RCP 9 POS Crimp ST D-Sub Standard Connectors 9P SOCKET TIN Standard Cable Connectors CONN D-SUB HOUSING RECEPT 9POS AMPLIMITE HDP-20 d-sub cable socket,9way Conn Housing RCP 9 POS Crimp ST Product Highlights:ConnectorProduct Series = HDP-20 (Crimp Snap)Number of Positions = 9ReceptacleWithout ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub HOUSING, D SUB, RECEPTACLE, 9WAY Conn;D-Sub;CableSocket;9Pos;STR;HDP-20Series;CrimpSnap;20AWG;MetalShell D-Sub crimp socket-housing 9P, 205203-3, TE Connectivity TE Connectivity AMPLIMITE HDP-20系列 9路 直 压接式 D-sub 连接器, 插座 CRIMP SNAP RCPT ASSY,SIZE 1
215715-1
te connectivity / amp
Conn Housing RCP 9 POS Crimp ST Cable Mount D-Sub High Density Connectors 09P HDP20 REC ASSY Standard Cable Connectors CONN RCPT 9POS CRIMP SNAP METAL AMPLIMITE HDP-20 d-sub cable socket,9way D-Sub Standard Connectors 09P HDP20 REC ASSY Conn Housing RCP 9 POS Crimp ST Cable Mount Product Highlights:ConnectorProduct Series = HDP-20 (Crimp Snap)Number of Positions = 9ReceptacleWithout ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CONNECTOR, RECEPTACLE, HD 20, 9WAY D-SUBRECEPTACLE9WAY
1658539-4
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece D-Sub Contacts HDP-20 PIN 24-20 Standard Cable Connectors CONN PIN 20-24AWG GOLD CRIMP AMPLIMITE HDP-20 Pin Contact 24-20 AWG Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)PinWire Termination Type = CrimpWire Insulation Diameter = 1.27 - 1.52 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub HDPINCONT.AUPLTD,LP TE Connectivity AMPLIMITE HDP-20系列 尺寸20触点 公 压接 D-sub 连接器触点, 镀锡镀金 触点, 24 → 20 AWG PIN CONT DUPL PLT LP HD-20 AMP
66507-4
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip D-Sub Contacts CRIMP PIN 28-24 Standard Cable Connectors CONN PIN 24-28AWG GOLD CRIMP Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)PinWire Termination Type = CrimpWire Insulation Diameter = .76 - 1.02 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CONTACT, PIN, 28-24AWG, CRIMP CONTACT,PIN,HDP-20,PLATED,CRIMP,.76-1.02MM HDP20 Series 24-28 AWG Insulation Support Crimp Snap Pin Contact TE Connectivity AMPLIMITE HDP-20系列 尺寸20触点 公 压接 针 D-sub 连接器触点, 镀金 触点, 28 → 24 AWG HD 20 DF PIN PLTD
66570-8
te connectivity / amp
Contact PIN Solder Cup ST Cable Mount Loose Piece Standard Circular Connector 20 DF PIN CONT SMALL Standard Cable Connectors CONN PIN 18AWG SLD CUP GOLD Contact PIN Solder Cup ST Cable Mount Loose Piece Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)PinWire Termination Type = SolderWire Range = 0.8 - 0.9 [18] mm² [AWG]Search Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub D SUB CONTACT, PIN, 18AWG, SOLDER CONTACT,PIN,HDP-20,SOLDER,18AWG 20 DF PIN CONT,SMALL PACK

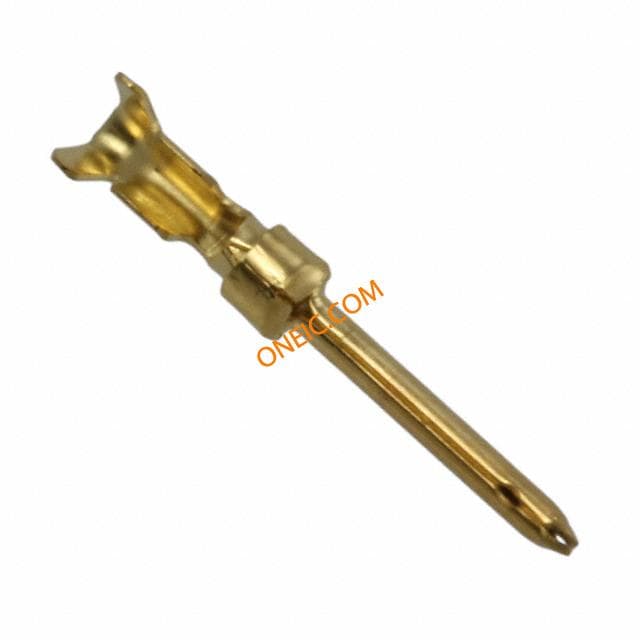

6-66506-1
