点击放大查看
200346-2
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Pack | 203 | Product Category | Pin & Socket Connectors |
| Standard Package | Bulk | Factory Pack Quantity | 203 |
Compliance
| RoHS | Lead free / RoHS Compliant | Leadfree Defin | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHSELV Compliance | RoHS compliant, ELV compliant | UL Flammability Rating | UL 94V-0 |
Mechanical
| Color | Black | Depth | 23.52mm |
| Pitch | 3.81 mm | Width | 11.18mm |
| Height | 39.62 mm [ 1.56 in ] | Length | 39.62mm |
| Packaging | Bulk | Body Color | 黑色 |
| Orientation | 直 | Contact Type | Pin |
| Housing Color | Black | Mounting Type | Straight |
| Connector Type | Standard | Mounting Style | Free Hanging, Panel |
| Number of Rows | 4 | Shell Material | 母端, 母端 |
| Connector Usage | Receptacle | Housing Material | Phenolic |
| Mounting Feature | None | Package Quantity | Loose Piece |
| Panel Mount Type | 带有 | Primary Material | Connector |
| Termination Style | 插座 | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 20 | Number of Positions | 20 |
| Compatible Shell Size | 插针外壳 | Center Contact Material | No |
| 1st Connector Mounting Type | Panel | ||
Product Info
| Note | Housing accepts type II, type III+ and Subminiature Coaxicon contacts.; Pins an | Type | Housing |
| Gender | RCP | Series | AMP M |
| CAD Drawing | 3D CAD Model | Manufacturer | AMPMSeries |
| Product Type | Housing | For Use With/Related Products | Wire-to-Panel Pin & Socket Connector, Wire-to-Wire Pin & Socket Connector |
Environmental
| Operating Range | 不密封 | Operating Temperature | -55 – 150 °C [ -67 – 302 °F ] |
Documents & Media
Online Document
Similar Parts
66103-4
te connectivity / amp
$6.8286
Details
66428-4
te connectivity / amp
$13.9998
Details
201356-3
te connectivity / amp
$126.9560
Details
1-66106-5
te connectivity / amp
$2.7397
Details
66183-1
te connectivity / amp
$2.9417
Details
201827-1
te connectivity / amp
$54.8801
Details
66360-4
te connectivity / amp
$9.6002
Details
66332-7
te connectivity / amp
$4.0079
Details
201611-1
te connectivity / amp
$38.6020
Details
66106-8
te connectivity / amp
$5.2839
Details

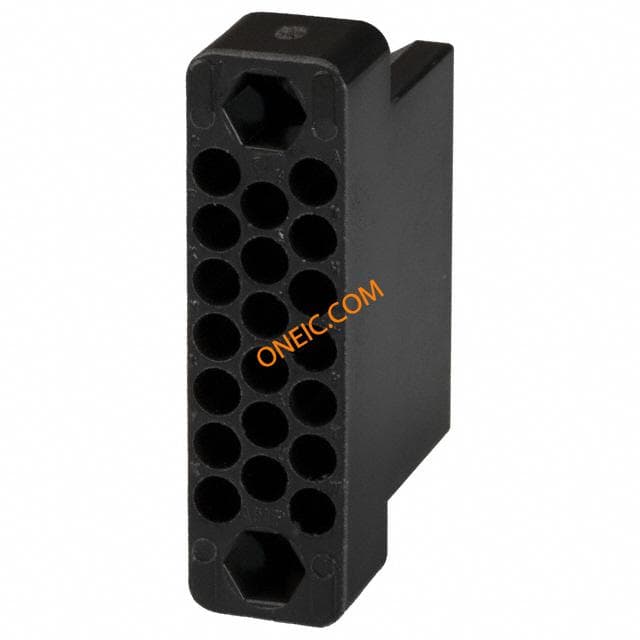

201356-1
