2-480703-0
| Manufacturer | |
| Description | 04P UMNL CAP HSG NATL Power to the Board 04P CAP HSG NAT CONN CAP 4POS UNIV-M-N-L NATURAL |
| Category |
Business
| Standard Pack | 1 | Product Category | Power to the Board |
| Standard Package | 2,000 | Factory Pack Quantity | 1 |
Compliance
| RoHS | RoHS Compliant | UL Rating | 获得认可 |
| Part Status | E28476 | CSA File Number | LR7189 |
| Standard Number | CSA, UL | CSA Certification | Certified |
| UL Flammability Rating | UL 94V-2 | Approval Agency Marking | 否 |
Electrical
| Voltage - Supply | 250 | Frequency - Center | 不带 |
Mechanical
| Color | Natural | Pitch | 0.250" (6.35mm) |
| Width | 7.62 mm [ .3 in ] | Height | 26.88 mm [ 1.05 in ] |
| Length | 27.43 mm [ 1.07 in ] | Sealed | Not Sealed |
| Packaging | Bulk | Contact Type | Male or Female |
| Mounting Type | Panel Mount, Snap-In | Connector Type | Receptacle |
| Contact Finish | Without | Fastening Type | Locking Ramp |
| Mounting Style | Panel | Number of Rows | 1 |
| Package / Case | Receptacle | Housing Material | Nylon |
| Package Quantity | 1 | Panel Mount Type | 不带 |
| Termination Style | 插针 | Number of Contacts | 4 |
| Contact Termination | Crimp | Number of Positions | 4 |
| Compatible Shell Size | 插头护套 | Contact Layout, Typical | 直插式 |
| 1st Connector Mounting Type | Panel | ||
Product Info
| Note | Contacts Not Provided | Product Type | Cap Housings |
| Selectively Loaded | No | Assembly Configuration | Without |
Environmental
| Temperature - Test | 标准件 - 非灼热丝 | Operating Temperature | -55 – 105 °C [ -67 – 221 °F ] |
Documents & Media
Similar Parts
1-480702-1
te connectivity / amp
Conn Housing PL 4 POS 6.35mm Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 4POS UNIV-M-N-L BROWN Power to the Board PLUG HOUSE 4 POS BROWN UL94V-2 Conn Housing PL 4 POS 6.35mm Crimp ST Cable Mount Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 4Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP PLUG & SOCKET HOUSING, PLUG, NYLON 04P UMNL PLUG HSG BRN
1-480702-2
te connectivity / amp
Conn Housing PL 4 POS 6.35mm Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN U-MNL PLUG 4POS 94V-2 RED Pin & Socket Connectors 4P PLUG HSG RED Conn Housing PL 4 POS 6.35mm Crimp ST Cable Mount Loose Piece Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP PLUG & SOCKET HOUSING, PLUG, NYLON 04P UMNL PLUG HSG RED
350779-1
te connectivity / amp
Conn Housing PL 4 POS 6.35mm ST Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 4POS 94V-0 UNI-MATE 4 way white plug housing Pin & Socket Connectors PLUG HOUSE. 4 POS. Conn Housing PL 4 POS 6.35mm ST Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 4Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP PLUG HOUSING, 4WAY Connector,SoftShell;UniversalMATE-N-LOK;4;Plug;Nylon;White;19A Plug; wire-board; male/female; w/o terminals; 6.35mm; PIN:4; 600V Crimp housing Pitch6.35 mm Poles 4 MATE-N-LOK Universal, 350779-1, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 1 行 6.35mm 节距 4 路 直 公 压接连接器外壳 04P UMNL PLUG HSG
2-480702-0
te connectivity / amp
Conn Power PIN 4 POS Crimp ST Cable Mount 4 Terminal 1 Port Power to the Board 04P PLUG HSG NAT CONN PLUG 4POS UNIV-M-N-L NATURL Conn Power PIN 4 POS Crimp ST Cable Mount 4 Terminal 1 Port Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 04P UMNL PLUG HSG NATL
350705-2
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PIN 14-20AWG GOLD CRIMP Power to the Board PIN 20-14 BR/AU SPLIT Conn Contact M 1 POS Crimp ST Cable Mount 1 Terminal 1 Port Loose Piece Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactUniversal MATE-N-LOKNot CompactPCIContact Type = Split PinWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP UNIVMATE-N-LOKLP,UMNLSPLITPIN20-14AUBRL/P UMNL SPLIT PIN 20-14 AUBR L/P

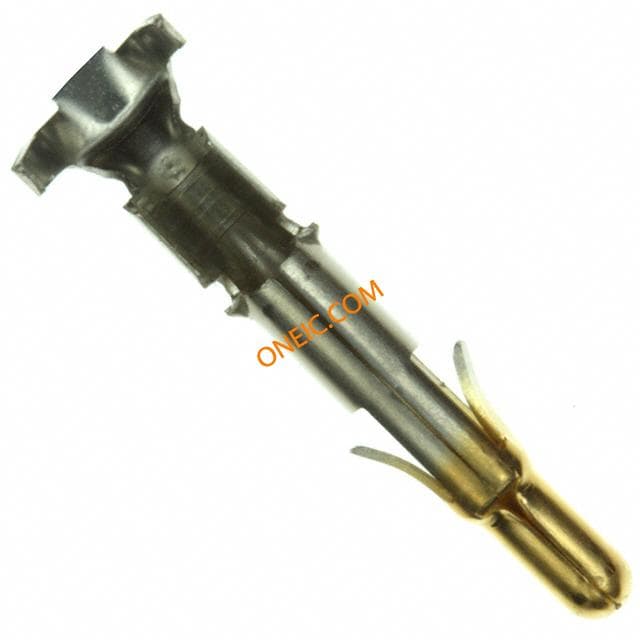

350538-7
