2-1761603-6
| Manufacturer | |
| Description | Conn Shrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO STR 16POS 30AU TE Connectivity 2-1761603 Series 2.54mm Pitch 16 Way 2 Row Straight PCB Header, Solder Termination Headers & Wire Housings PIN HEADER 16 POS VERT LOW PROFILE Conn Shrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeadersLow ProfileNumber of Positions = 162.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, STRAIGHT, 16WAY HEADER,PIN,IDC,AMP-LATCH,16POS,LOWPROFILE,PCB,VERTICAL,BLUE Socket; IDC; male; PIN:16; straight; THT; gold plated; 2.54mm TE Connectivity AMP-LATCH 系列 2.54mm节距 16路 (2排) 直 PCB 针座, 焊接端接 , 通孔 IDC LOW PRO HDR 16P VERT BLUE |
| Category |
Business
| Tradename | AMP-LATCH | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Range deg/s | :TE - AMP-LATCH Series | Voltage - Breakdown | :500V |
| Current Rating (Max) | 1 A | Insulation Resistance | :1Gohm |
Mechanical
| Color | Blue | Depth | 9.22 mm |
| Pitch | 2.54 mm | Height | 9.22 mm |
| Weight | 0.002 | Material | :Glass Reinforced Thermoplastic |
| Packaging | Bulk | Shrouding | Yes |
| Orientation | straight | Row Spacing | 0.100" (2.54mm) |
| Termination | Solder | Contact Type | Male Pin |
| Lead Spacing | :2.54mm | Pitch - Post | 2.54 x 2.54 [.100 x .100] |
| Polarization | Center, Military | 2nd Connector | Without |
| Contact Shape | Square | Housing Color | Blue |
| Mounting Type | Vertical | Connector Type | Pin Header |
| Contact Finish | Gold Over Nickel | Mounting Style | Through Hole |
| Number of Rows | 2 | Package / Case | 4-Sided |
| Profile (W x H) | Low | Contact Material | Phosphor Bronze |
| Housing Material | Thermoplastic | Length - Overall | 3.81 [0.150] |
| Package Quantity | 1 | Primary Material | InterconnectSystem |
| Size / Dimension | 0.64 [.025] | Connector - Cable | socket |
| Termination Style | Through Hole | 1st Contact Gender | Pin (Male) |
| Color - Connectors | blue | Mating Orientation | With |
| Number of Contacts | 16 | Contact Termination | :Solder |
| Number of Positions | 16 | Mounting Hole Diameter | :0.9mm |
| Contact Length - Mating | 0.240" (6.10mm) | Termination Post Length | 2.60 [0.102] |
| Contact Finish Thickness | 30µin (0.76µm) | Contact Material - Plating | gold plated |
| 1st Connector Mounting Type | :PC Board | 1st Connector Mounting Feature | 2x8 |
Product Info
| Spg | 1 | Type | Shrouded Header |
| Gender | HDR | Series | 2-1761603 |
| Polarity | :Bump | Manufacturer | AMP-LATCH |
| Product Type | Headers | Number of Units | 1 |
| Other Specifications | Without | Number of Positions Loaded | All |
Environmental
| Mating Cycles | :200 | Temperature Rating | Standard |
| Operating Temperature | :125°C | ||
Documents & Media
Similar Parts
1658621-3
te connectivity / amp
Conn IDC Connector F 16 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN IDC SKT 16POS W/POL 15 GOLD 16way polarised skt w/o strain relief Headers & Wire Housings CNTR PLRZD RECPT 16P NOVO Conn IDC Connector F 16 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = NOVONumber of Positions = 16ReceptacleMating Polarization Method = Center & MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board SOCKET, NOVOLATCH, 16WAY Connector;Novo;16;RibbonCable;Gold(15);Tin-Lead;0.100in.x0.100in. Plug; IDC; female; PIN:16; IDC; for ribbon cable; 1.27mm Multipole socket DIN 41651 16P, 1658621-3, TE Connectivity TE Connectivity AMP-LATCH Novo 系列 2行 16路 2.54mm节距 直角 电缆安装 母 IDC 连接器 16 NOVO MIL/CTR 15DP,LEAD FREE
2-1761607-6
te connectivity / amp
Conn Ejector Header HDR 16 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER PIN 16POS R/A GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 16 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Headers & Wire Housings HDR 16P RA LG LAT LPRO Conn Ejector Header HDR 16 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 162.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, RIGHT ANGLE, 16WAY 16waymaler/afrontlatchheader TE Connectivity AMP-LATCH 系列 2.54mm节距 16路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 IDC LOW PRO HDR 16P RA LG LAT
1658527-7
te connectivity / amp
Conn IDC Connector RCP 16 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN RCPT 16POS .100 GOLD 16 way IDC bump polarised socket Connector 16 way socket IDC 622 series Headers & Wire Housings 16 POS RECPT 30AU Ribbon Cable Connectors (AMP-LATCH) Product Highlights:Connector Type = 622 SeriesNumber of Positions = 16ReceptacleMating Polarization Method = Center & MilitaryWith Mating Polarization SOCKET, IDC, 16WAY TE Connectivity AMP-LATCH 622 系列 2行 16路 2.54mm节距 直角 母 IDC 连接器 622-1641LF FEM SOCKT,LEAD FREE
1658620-3
te connectivity / amp
Conn IDC Connector F 16 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN IDC SOCKET 16POS 15 GOLD Connector,Receptacle,Novo,16,Gold(15) Headers & Wire Housings MLTRY PLRZD RECPT 16 NOVO Conn IDC Connector F 16 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = NOVONumber of Positions = 16ReceptacleMating Polarization Method = MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board WIRE-BOARD CONNECTOR RECEPTACLE 16POS, 2.54MM Connector,Receptacle;Novo;16;Gold(15);Tin-Lead;0.100in.x0.100in. 16 NOVO MIL 15DP, LEAD FREE
2-1761605-6
te connectivity / amp

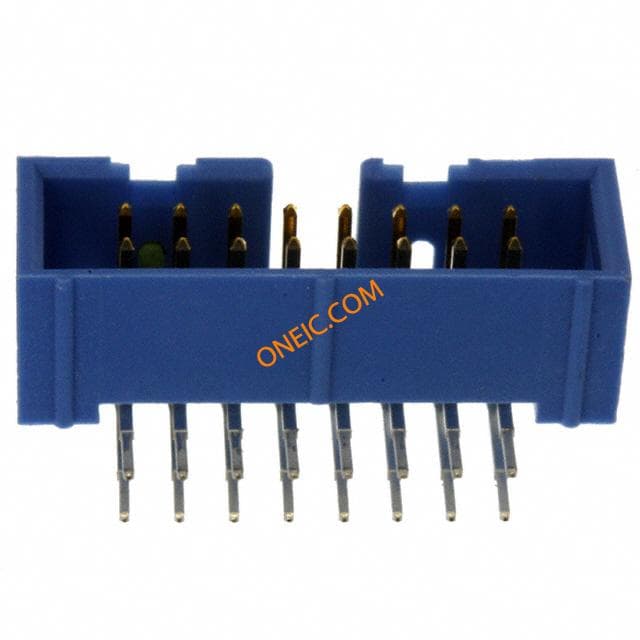

Conn Shrouded Header HDR 16 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A 16POS 30AU TE Connectivity AMP LATCH Series 2.54mm Pitch 16 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Headers & Wire Housings PIN HEADER 16 POS R/A LOW PROFILE Conn Shrouded Header HDR 16 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 162.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, R/A, 16WAY 16wayIDClowprofiler/amountheader TE Connectivity AMP-LATCH 系列 2.54mm节距 16路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 IDC LOW PRO HDR 16P RA BLUE
2-1658526-9
TE Connectivity / AMP
ヘッダ & ワイヤハウジング 16 POS RECPT 30AU Ribbon Cable Connectors (AMP-LATCH) CONN RCPT 16POS VERT GOLD Ribbon cable conn.rcpt.16way,2.54mm,blue Headers & Wire Housings 16 POS RECPT 30AU Conn IDC Connector F 16 POS 2.54mm IDT RA Cable Mount Conn IDC Connector F 16 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = AMP-LATCHNumber of Positions = 16ReceptacleMating Polarization Method = Center & MilitaryWith Mating Polarization SOCKET, IDC, 16WAY TE Connectivity AMP-LATCH 609 系列 2行 16路 2.54mm节距 直角 母 IDC 连接器 , 电缆安装 609-1630LF=FSKT IDC S 16 30AU
2516-6002UB
3M Electronic Solutions Division

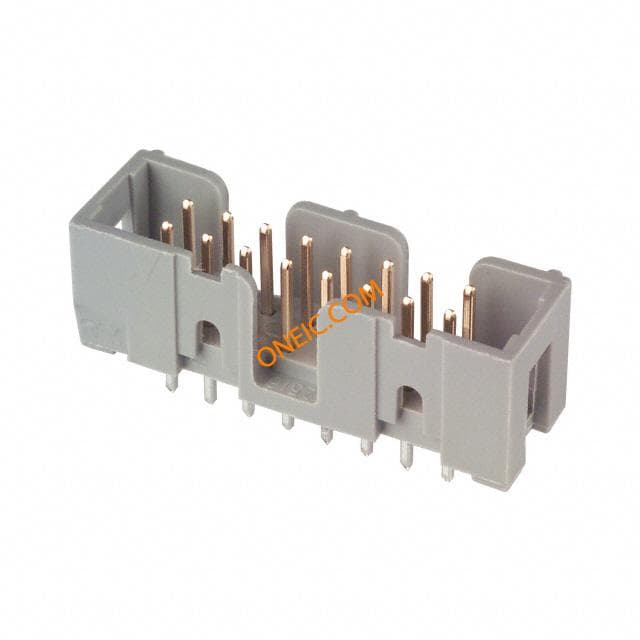

Headers & Wire Housings 16P STRT SOLDER TAIL .100" Ã .100" Low Profile, SMT Straight, Straight and Rt Angle Through-Hole, 2500 Series SHROUDED HEADER 16 POS STRAIGHT WIRE-BOARD CONN, HEADER, 16POS, 2.54MM PROFILEHEADER;STRAIGHTSOLDERPINS;16CONTACTS
