1658527-7
| Manufacturer | |
| Description | Conn IDC Connector RCP 16 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN RCPT 16POS .100 GOLD 16 way IDC bump polarised socket Connector 16 way socket IDC 622 series Headers & Wire Housings 16 POS RECPT 30AU Ribbon Cable Connectors (AMP-LATCH) Product Highlights:Connector Type = 622 SeriesNumber of Positions = 16ReceptacleMating Polarization Method = Center & MilitaryWith Mating Polarization SOCKET, IDC, 16WAY TE Connectivity AMP-LATCH 622 系列 2行 16路 2.54mm节距 直角 母 IDC 连接器 622-1641LF FEM SOCKT,LEAD FREE |
| Category |
Business
| Tradename | AMP-LATCH | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | Not relevant for lead free process | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Range deg/s | :TE - 622 Series | Voltage Rating | 500 V dc |
| Switch Function | Unlatched | Voltage - Breakdown | :500V |
| Current Rating (Max) | 1A | Insulation Resistance | :1Gohm |
| Contact Rating (Current) | :1A | ||
Mechanical
| Color | Blue | Depth | 7.05 mm |
| Pitch | 2.54 mm | Height | 12.1 mm |
| Weight | 0.002 | Material | :Glass Feinforced Thermoplastic |
| Packaging | Bulk | Wire Type | Ribbon Cable |
| Cable Exit | With | Wire Gauge | 26-28 AWG, Stranded or Solid |
| Row Spacing | 0.100" (2.54mm) | Termination | IDT |
| Contact Type | Female Socket | Pitch - Post | 2.54 x 2.54 [.100 x .100] |
| Polarization | Center & Military | 2nd Connector | Without |
| Housing Color | Blue | Mounting Type | No |
| Cable End Type | Without | Connector Type | 622 Series |
| Contact Finish | Gold Over Nickel | Mounting Style | Cable |
| Number of Rows | 2 | Contact Material | Beryllium Copper |
| Housing Material | Thermoplastic | Length - Overall | 24.82 mm |
| Mounting Feature | Without | Cable Termination | IDC |
| Termination Style | IDC | 1st Contact Gender | Socket (Female) |
| Mating Orientation | With | Number of Contacts | 16 |
| Contact Termination | :IDC / IDT | Number of Positions | 16 |
| Contact Finish Thickness | 30µin (0.76µm) | 1st Connector Mounting Type | :Cable |
Product Info
| Type | IDC Connector | Gender | RCP |
| Series | 622 | Features | Feed Through; Polarizing Key, Strain Relief |
| Polarity | :Bump/Clip | Product Type | Socket Headers |
| Connection Type | Ribbon Cable | ||
Environmental
| Mating Cycles | :200 | Operating Temperature | +125°C |
Documents & Media
Similar Parts
2-1761607-6
te connectivity / amp
Conn Ejector Header HDR 16 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER PIN 16POS R/A GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 16 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Headers & Wire Housings HDR 16P RA LG LAT LPRO Conn Ejector Header HDR 16 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 162.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, RIGHT ANGLE, 16WAY 16waymaler/afrontlatchheader TE Connectivity AMP-LATCH 系列 2.54mm节距 16路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 IDC LOW PRO HDR 16P RA LG LAT

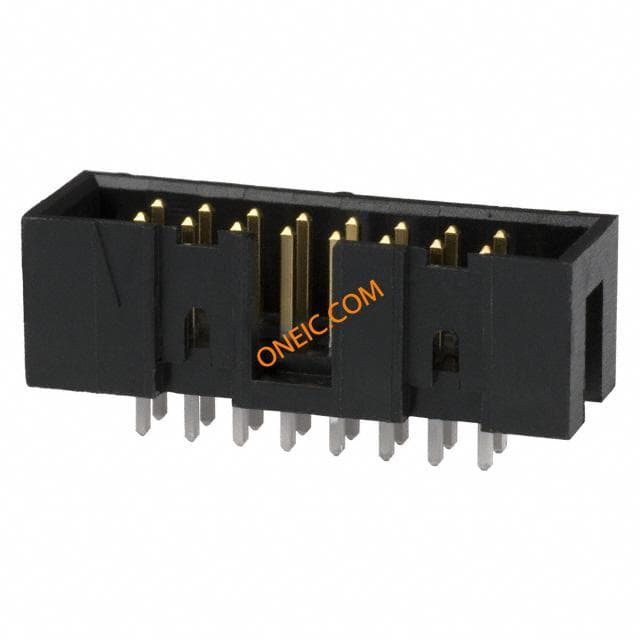

1761603-6
