183036-1
| Manufacturer | |
| Description | Contact PIN Crimp ST Cable Mount Loose Piece Terminals MIC TAB CONTACT Superseal 1.5 Series CONN PIN 20-22AWG TIN CRIMP TERM Superseal 1.5 tab crimp contact Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Type = TabWire Range = 0.30-0.60² [22-20] mm [AWG]Wire Insulation Diameter = 1.40 - 1.70 mmLoose PieceSearch Keywords:watertight, IEC 529, DIN 40050 I.P. 6.7, interchangeable, sensors, oil pressure senders, water temperature monitoring CRIMP PIN, TAB, 22-20AWG Superseal1.5tabcrimpcontact Contact; male; 0.35÷0.5mm2; 20÷22AWG; Superseal 1.5; tinned; 14A Crimp pin Male 22...20 AWG, 183036-1, TE Connectivity TE Connectivity AMP Superseal 1.5 系列 公 压接接线端子, 压接, 镀锡触点 MINI MIC TAB CONTACT L.P. |
| Category |
Business
| Product | Tab Terminals | Product Category | Terminals |
| Standard Package | Bulk | Factory Pack Quantity | 5000 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | Not relevant for lead free process | RoHSELV Compliance | RoHS compliant, ELV compliant |
Electrical
| Current Rating (Max) | :14A | ||
Mechanical
| Length | 22.7 mm | Weight | 0.027 |
| Material | Brass | Packaging | Bulk |
| Insulation | Not Insulated | Wire Gauge | 22-20 |
| Termination | Crimp | Contact Size | :20 |
| Contact Type | Signal | Mounting Type | Wire |
| Pin or Socket | Pin | Connector Type | Connector Headers and PCB Receptacles |
| Contact Finish | Pre-Tin | Package / Case | in bulk |
| Bundle Diameter | 0.6 mm | Contact Material | Brass |
| Length - Overall | 22.7mm | Package Quantity | Loose Piece |
| Connector - Cable | contact | Termination Style | Crimp |
| 1st Contact Gender | :Pin | Contact Termination | Crimp |
| Insulation Diameter | 1.40 â 1.70 [0.055 â 0.067] | Wire Gauge or Range - AWG | :22AWG |
| Wire Gauge or Range - mm2 | 0.30-0.60² [22-20] | Contact Material - Plating | tinned |
| Diameter - Outside, Non-Expanded | :1.7mm | ||
Product Info
| Spg | 1 | Type | Tab |
| Gender | PIN | Series | Super Seal |
| CAD Drawing | 3D CAD Model | Manufacturer | SUPERSEALSeries |
| Product Type | Contact | Adapter Series | Superseal 1.5 |
| Number of Units | 1 | Tool Type Feature | 58583-1, 9-1579007-1 |
| For Use With/Related Products | :Super Seal 1.5 Series Connectors | ||
Documents & Media
Similar Parts
58583-1
te connectivity / amp
Hand Tool Assembly And Die Assembly Crimpers PROCRIMP HT&D SUPRSE TOOL HAND CRIMP SUPRSEAL W/DIE IP67 AMP superseal crimp tool Connector Accessories Crimp Terminals Hand Tool With Die Set Pro-Crimper Assembly CRIMP TOOL, SUPERSEAL Crimper;Ratchet;20-16AWG;SUPERSEAL1.5SeriesContacts;58583-2Die;PRO-CRIMPER Tool: for crimping; 0,5÷1,5mm2; Series: Superseal 1.5 Crimping tool, 58583-1, TE Connectivity TE Connectivity Pro-Crimper III 系列 Superseal 压接工具 , 适用于0.35 → 1.5 mm² 线规格 PROCRIMP HT&D SUPRSEAL 1.5 SER
183035-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Automotive Connectors MINI MIC RCPT CONT. ACT.LP Superseal 1.5 Series CONN SOCKET 20-22AWG TIN CRIMP Superseal 1.5 socket crimp contact Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Type = ReceptacleWire Range = 0.30-0.60² [22-20] mm [AWG]Wire Insulation Diameter = 1.40 - 1.70 mmLoose PieceSearch Keywords:watertight, IEC 529, DIN 40050 I.P. 6.7, interchangeable, sensors, oil pressure senders, water temperature monitoring CRIMP SOCKET, 22-20A SUPERSEALMINIMICRCPTCONT.ACT.LP Contact; female; 0.35÷0.5mm2; 20÷22AWG; Superseal 1.5; tinned Crimp socket Female 22...20 AWG, 183035-1, TE Connectivity TE Connectivity Superseal 1.5 系列 触点, 使用于插头外壳 MINI MIC RCPT CONT.ACT.LP
539635-1
te connectivity / amp
Assembly Tools, AMP MCP Interconnection System Crimpers ERGO CRIMP HD TOOL TOOL HAND ERGOCRIMP CPC series 1 ergo crimp tool frame Crimp Tool CRIMP TOOL, 0.5-2.1MM FRAME W/OUT DIE Crimper;Ratchet;22-10AWG;SOLISTRANDSplices/Terminals;539662-2Die Crimp tool without insert, 539635-1, TE Connectivity TE Connectivity ERGOCRIMP 系列 压接工具框架 ERGOCRIMP HAND TOOL
183024-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Terminals AMP MINI MIC TAB L.P. Superseal 1.5 Series CONN PIN 15-18AWG TIN CRIMP Superseal 1.5 tab crimp contact Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactContact Type = TabWire Range = 0.75-1.50² [18.5-15.5] mm [AWG]Wire Insulation Diameter = 1.80 - 3.30 mmLoose PieceSearch Keywords:watertight, IEC 529, DIN 40050 I.P. 6.7, interchangeable, sensors, oil pressure senders, water temperature monitoring CRIMP PIN, TAB, 20-15AWG Superseal1.5tabcrimpcontact Contact; male; 0.75÷1.5mm2; 16÷20AWG; Superseal 1.5; tinned; 14A Crimp pin Male 18...15 AWG, 183024-1, TE Connectivity TE Connectivity AMP Superseal 1.5 系列 公 压接接线端子, 压接, 镀锡触点 MINI MIC TAB L.P.
281934-4
te connectivity / amp
Connector Accessories Seal Protector Silicon Rubber Green Superseal 1.5 Series RUBBER PLUG Superseal 1.5 green wire seal,1.4-1.7mm Jones Plugs & Sockets HSG ACC:WIRE SEAL GRN Connector Accessories Seal Protector Silicon Rubber Green Product Highlights:Seal ProtectorWire Insulation Diameter = 1.40 - 1.70 mmSearch Keywords:watertight, IEC 529, DIN 40050 I.P. 6.7, interchangeable, sensors, oil pressure senders, water temperature monitoring Superseal1.5greenwireseal,1.4-1.7mm Seal for wire; Superseal 1.5; Colour: green; 1.4÷1.7mm Gasket green green, 281934-4, TE Connectivity TE Connectivity AMP Superseal 1.5系列 绿色 硅橡胶 电线密封, 适用于Superseal连接器 SINGLE WIRE SEAL
539773-2
te connectivity / amp

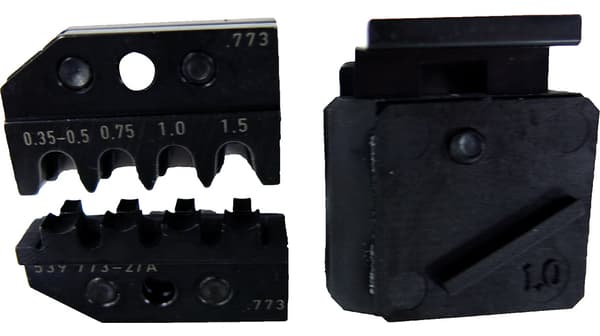

DIE FUER MINI MIC Punches & Dies DIE FUER MINI MIC TOOL DIE SET 0.35-1.5MM Crimping dies, 539773-2, TE Connectivity
