182206-2
| Manufacturer | |
| Description | Contact SKT Crimp ST Cable Mount Loose Piece .100 AMPMODU Headers, Housings & Contacts CONTACT SOCKET FOR 280358 MODU tin shrouded crimp 26-22 Headers & Wire Housings MOD 2 TERMINAL Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:Receptacle ContactWire Termination Type = CrimpTerminate To WireWire Insulation Diameter = .89 - 1.55 mmWire Range = 0.12-0.40² [26-22] mm [AWG]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CONTACT, SOCKET, 26-22AWG, CRIMP MODUtinshroudedcrimp26-22 Contact; female; 22÷26AWG; AMPMODU MOD II; tinned; 2.54mm TE Connectivity AMPMODU Mod II 系列 母 压接接线端子, 压接, 镀锡触点 MOD 2 TERMINAL |
| Category |
Business
| Tradename | AMPMODU | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 2000 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | Not relevant for lead free process | RoHSELV Compliance | RoHS compliant, ELV compliant |
Mechanical
| Weight | 0.001001 | Packaging | Bulk |
| Wire Gauge | 22-26 AWG | Termination | Crimp |
| Contact Type | Signal | Pitch - Post | 2.54mm |
| Mounting Type | crimped, on cable | Pin or Socket | Socket |
| Connector Type | Connector Headers and PCB Receptacles | Contact Finish | Pre-Tin |
| Contact Material | Phosphor Bronze | Package Quantity | Loose Piece |
| Connector - Cable | contact | Insulation Height | Yes |
| Termination Style | Crimp | 1st Contact Gender | Socket (Female) |
| Contact Termination | Crimp | Insulation Diameter | 0.89 â 1.55 [0.035 â 0.061] |
| Contact Finish Thickness | 31.5µin (0.80µm) | Wire Gauge or Range - AWG | :26AWG |
| Wire Gauge or Range - mm2 | 0.12-0.40² [26-22] | Contact Material - Plating | tinned |
| Diameter - Outside, Non-Expanded | :1.55mm | ||
Product Info
| Spg | 2000 | Gender | SKT |
| Series | Mod II (Italian Range) | CAD Drawing | 3D CAD Model |
| Manufacturer | AMP | Product Type | Contact |
| Adapter Series | AMPMODU MOD II | Connection Type | Wire |
| Number of Units | 1 | For Use With/Related Products | :AMPMODU Connectors |
Environmental
| Usable Temperature Range | -55to+125°C | Operating Temperature - Junction | 125°C |
Documents & Media
Similar Parts
280366
TE Connectivity AMP Connectors
Conn Housing RCP 16 POS 2.54mm Crimp ST .100 AMPMODU Headers, Housings & Contacts CONN RCPT HOUSING 16POS DL CRIMP 16 way (2x8) MODU crimp socket shell Headers & Wire Housings 2X08 POS RECPT Conn Housing RCP 16 POS 2.54mm Crimp ST Product Highlights:HousingNot PreloadedNumber of Positions = 16Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE RECEPTACLE HOUSING, 8X2WAY 16WSOCKETSHELL(2X8) Plug; wire-board; female; PIN:16; w/o terminals; 2.54mm; for cable Crimp housing 2 x 8P, 280366, TE Connectivity TE Connectivity AMPMODU Mod II 系列 2 行 2.54mm 节距 16 路 直 母 PCB 壳体 HOUSING AMPMODU II CONT RECPT
58535-1
te connectivity / amp
Assembly Tools, Hand Tool Assymbly Crimpers PRO-CRIMPER ASSY MODU/MODII TOOL HAND PRO-CRIMPER III W/DIE Crimp tool for male pins Crimptoolformalepins PRO-CRIMPER ASSY MODU MODII
280361
TE Connectivity AMP Connectors

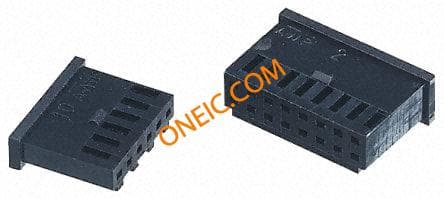

Conn Housing RCP 8 POS 2.54mm Crimp ST Cable Mount CONN HOUSING RCPT 8POS SL ROW 8 way 1 row MODU crimp socket shell Headers & Wire Housings 8 POS RECPT Conn Housing RCP 8 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 8Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE RECEPTACLE HOUSING, 8WAY 8WAYSOCKETSHELL Plug; wire-board; female; PIN:8; w/o terminals; 2.54mm; for cable Crimp housing 1 x 8P, 280361, TE Connectivity TE Connectivity AMPMODU Mod II 系列 2.54mm 节距 8 路 直 母 电缆安装 PCB 壳体 MOD II HSG, SINGLE ROW 8 POS
