280359
| Manufacturer | |
| Description | Conn Housing RCP 4 POS 2.54mm Crimp ST .100 AMPMODU Headers, Housings & Contacts CONN RCPT 4POS SINGLE ROW 4 way 1 row MODU crimp socket shell Headers & Wire Housings SINGLE ROW 4P Conn Housing RCP 4 POS 2.54mm Crimp ST Product Highlights:HousingNot PreloadedNumber of Positions = 4Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE HOUSING, CRIMP, RECEPTACLE, 2.54MM, 4WAY 4way1rowMODUcrimpsocketshell Plug; wire-board; female; PIN:4; w/o terminals; 2.54mm; for cable Crimp housing 1 x 4P, 280359, TE Connectivity TE Connectivity AMPMODU Mod II 系列 2.54mm 节距 4 路 直 母 PCB 壳体 AMP MODU, SINGLE ROW CONT 4 P |
| Category |
Business
| Tradename | AMPMODU | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 1500 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | Not relevant for lead free process | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-1 | ||
Electrical
| Switch Function | Detent Latching | Current Rating (Max) | 3/Contact A |
| Connector - Voltage Input | w/o terminals | ||
Mechanical
| Color | Black | Depth | 13.7mm |
| Pitch | 2.54 mm | Width | 4.8mm |
| Height | 4.8 mm | Length | 12.2mm |
| Weight | 0.001001 | Material | :Thermoplastic (PPO) |
| Packaging | Bulk | Wire Gauge | 22-30 AWG |
| Row Spacing | 2.54 mm | Contact Type | Female Socket |
| Pitch - Post | 2.54 [.100] | Polarization | Latched |
| 2nd Connector | With | Housing Color | Black |
| Mounting Type | Straight | Connector Type | Crimp |
| Contact Finish | Gold | Mounting Style | Wire |
| Number of Rows | 1 | Package / Case | Receptacle |
| Locking Feature | Detent Latching | Housing Material | Thermoplastic |
| Length - Overall | 12.2 mm | Package Quantity | 1,000 |
| Primary Material | Connector | Connector - Cable | plug |
| Termination Style | Crimp | 1st Contact Gender | Socket (Female) |
| Color - Connectors | :Black | Mating Orientation | With |
| Number of Contacts | 4 | Contact Termination | Crimp |
| Number of Positions | 4 | 1st Connector Mounting Feature | 1x4 |
Product Info
| Spg | 1000 | Note | Contacts Not Provided |
| Type | Housing | Gender | RCP |
| Series | Mod II (Italian Range) | Preloaded | No |
| Coded, Keyed | No | Manufacturer | AMPMODU |
| Product Type | Housing | Adapter Series | AMPMODU MOD II |
| Number of Units | 1 | For Use With/Related Products | Centerline Mod II Connector |
Environmental
| Operating Temperature | -65C to 105C | ||
Documents & Media
Similar Parts
182206-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece .100 AMPMODU Headers, Housings & Contacts CONTACT SOCKET FOR 280358 MODU tin shrouded crimp 26-22 Headers & Wire Housings MOD 2 TERMINAL Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:Receptacle ContactWire Termination Type = CrimpTerminate To WireWire Insulation Diameter = .89 - 1.55 mmWire Range = 0.12-0.40² [26-22] mm [AWG]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CONTACT, SOCKET, 26-22AWG, CRIMP MODUtinshroudedcrimp26-22 Contact; female; 22÷26AWG; AMPMODU MOD II; tinned; 2.54mm TE Connectivity AMPMODU Mod II 系列 母 压接接线端子, 压接, 镀锡触点 MOD 2 TERMINAL
181270-2
te connectivity / amp
Crimp Terminal 22-26AWG F 12.65mm 2.2mm Gold Loose Piece .100 AMPMODU Headers, Housings & Contacts CONTACT RCPT CRIMP 26-22AWG GOLD Mod II Crimp Terminal, Gold, 26-22 AWG Headers & Wire Housings MOD II CONTACT LP RCPT 26-22 AWG 15 AU Crimp Terminal 22-26AWG F 12.65mm 2.2mm Gold Loose Piece Product Highlights:Receptacle ContactWire Termination Type = CrimpTerminate To WireWire Insulation Diameter = 1.65 mmWire Range = 0.12-0.40² [26-22] mm [AWG]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CONTACT, SOCKET, AWG26-22 Crimpterminal,26-22awg Contact; female; 22÷26AWG; AMPMODU MOD II; gold plated; crimped Crimp socket 3 A Female 26...22 AWG, 181270-2, TE Connectivity TE Connectivity AMPMODU Mod II 系列 母 压接接线端子, 压接, 镀金镀镍触点 MOD II CONTACT L.P.

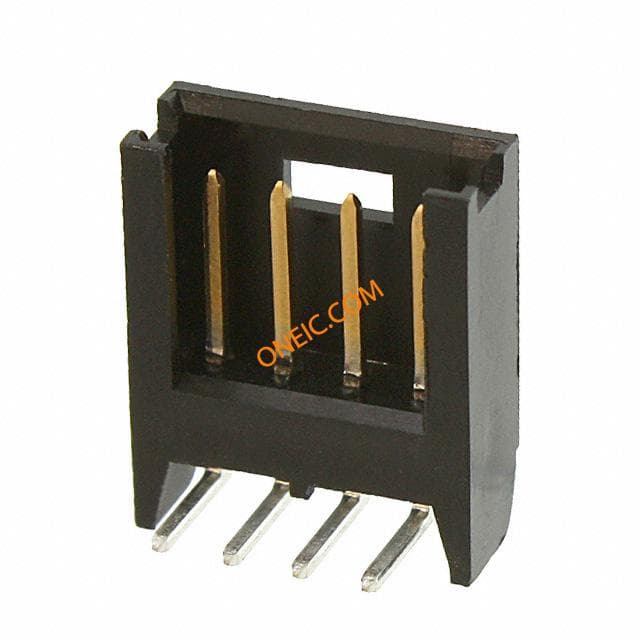

280378-2
te connectivity / amp
Conn Wire to Board HDR 4 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER 4POS R/A GOLD TE Connectivity AMPMODU Series 2.54mm Pitch 4 Way 1 Row Right Angle PCB Header, Solder Termination Headers & Wire Housings 4P HDR SHROUDED 15AU Conn Wire to Board HDR 4 POS 2.54mm Solder RA Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = Single4 PositionsMating Post Length = 6.60 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 4WAYSINGLEROWR/A Socket; wire-board; male; PIN:4; 2.54mm; THT; AMPMODU MOD II PCB header 1 x 4P, 280378-2, TE Connectivity TE Connectivity AMPMODU Mod II 系列 2.54mm节距 4路 (1排) 直角 PCB 针座, 焊接端接 , 通孔 4P MODU II SHRD HDR, RT ANG, 0.38AU
280371-1
te connectivity / amp
Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Carton .100 inch AMPMODU Headers CONN HEADER 4POS TIN .100 TE Connectivity AMPMODU Series 2.54mm Pitch 4 Way 1 Row Straight PCB Header, Solder Termination Headers & Wire Housings 4P HDR SHROUDED TIN Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Carton Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = SingleNumber of Positions = 4Mating Post Length = 6.60 mmSearch Keywords:board to board, AMPMODU, pcb connectors, CONNECTOR, HEADER, THT, 2.54MM, 4WAY 4waysinglerowtin Socket; wire-board; male; PIN:4; 2.54mm; THT; AMPMODU MOD II TE Connectivity AMPMODU Mod II 系列 2.54mm节距 4路 (1排) 直 PCB 针座, 焊接端接 , 通孔 4P AMPMODU II SHRD HDR, ST, TIN
1241150-4
te connectivity / amp
Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST SMD Blister Pack .100 inch AMPMODU Headers CONN HEADER 4POS .100 SMT GOLD TE Connectivity AMPMODU Series 2.54mm Pitch 4 Way 1 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings 4P SINGLE ROW Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST SMD Blister Pack Product Highlights:HeaderHeader Type = BreakawayNumber of Rows = SingleNumber of Positions = 4Mating Post Length = 5.80 mmSearch Keywords:board to board, AMPMODU, pcb connectors, HEADER, SMT, 4WAY MODUSMTheadersinglerow,4W Pin header 1 x 4P, 1241150-4, TE Connectivity TE Connectivity AMPMODU Mod II 系列 2.54mm节距 4路 (1排) 直 引脚管座, 焊接端接, 3A , 表面安装 4P MOD II BREAK AWAY HDR , SMD, BLISTER

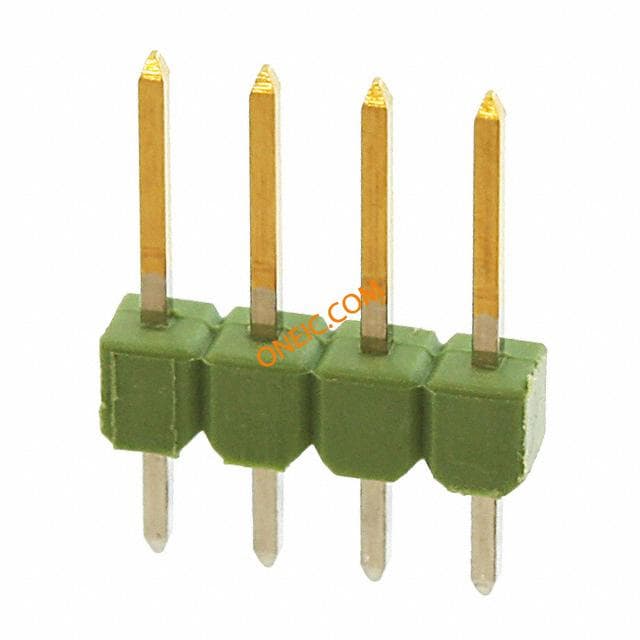

826629-4
