176394-2
| Manufacturer | |
| Description | Conn Shrouded Header HDR 2 POS 2mm Solder RA Thru-Hole Bag 2mm AMP CT CONN HEADER 2POS R/A 2MM GOLD Headers & Wire Housings BOX HDR ASSY H 2P AU CT BOX HDR ASSY H 2P GOLD |
| Category |
Business
| Product Category | Headers & Wire Housings | Standard Package | Bulk |
| Factory Pack Quantity | 1000 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Leadfree Defin | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| Standard Number | UL 94V-0 | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Switch Function | No | Voltage - Supply | 125 |
| Current Rating (Max) | 4 | Connector - Voltage Input | 圆柱体 |
Mechanical
| Color | Natural | Pitch | 2 mm |
| Shape | 矩形 | Width | 5.8 mm [ .228 in ] |
| Height | 8.8 mm [ .346 in ] | Length | 5.8 mm [ .228 in ] |
| Packaging | Bulk | Tail Type | Inline |
| Body Color | 自然 | Cable Type | 分离式导线 |
| Wire Gauge | 28 – 22 | Termination | Solder |
| Contact Type | Male Pin | Contact Shape | Rounded |
| Housing Color | Natural | Mounting Type | Right Angle |
| Connector Type | MT (Mass Termination) | Contact Finish | Gold |
| Contact Timing | Without | Mounting Style | Thru Hole |
| Number of Rows | 1 | Connector Usage | Header |
| Insert Material | 黄铜 | Contact Material | Brass |
| Housing Material | Nylon | Length - Overall | 2.00 [0.079] |
| Mounting Feature | 扭结支脚 | Package Quantity | 1000 |
| Panel Mount Type | Without | Termination Style | 插针 |
| Header Orientation | Box | Number of Contacts | 2 |
| Termination Finish | 带有 | Number of Positions | 2 |
| Contact Length - Post | 信号（数据） | Mounting Hole Diameter | 带有 |
| Contact Finish - Mating | 金 | Contact Length - Mating | 0.165" (4.19mm) |
| Surface Mount Land Size | Internal | Termination Post Length | 4.2 mm [ .165 in ] |
| Contact Finish Thickness | .2 µm [ 7.874 µin ] | Static Discharge Shielding | 不带 |
Product Info
| Type | Shrouded Header | Gender | HDR |
| Sealable | 否 | Spool Size | 1000 |
| Product Type | Connector | Connection Type | Printed Circuit Board |
| Number of Positions Loaded | All | ||
Environmental
| Operating Temperature | -22 – 221 °C [ -30 – 105 °F ] | Thermal Resistance of Package | .8 mm [ .031 – .063 in ] |
Documents & Media
Similar Parts
6-179228-2
te connectivity / amp
Conn Housing RCP 2 POS 2mm Crimp ST Cable Mount 2mm AMP CT CT CRIMP-2 REC HSG 2P BLACK Headers & Wire Housings CT CRIMP-2 REC HSG 2P BLACK

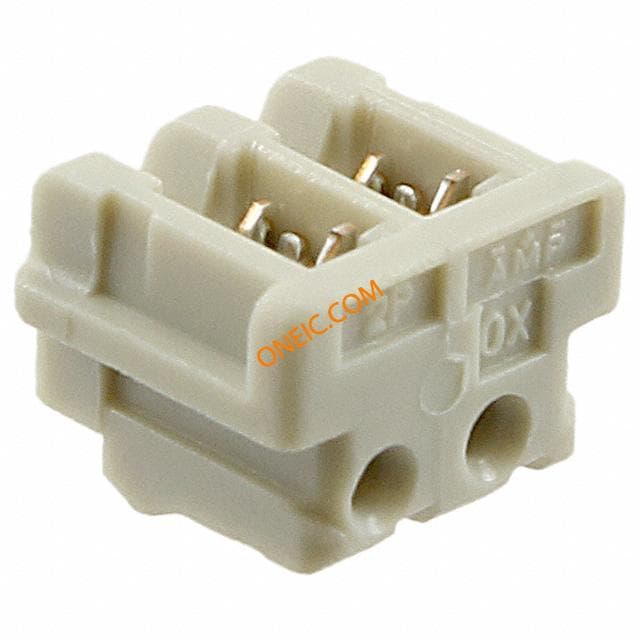

2-179694-2
te connectivity / amp
Conn IDC Connector RCP 2 POS 2mm IDT RA Cable Mount Bag 2mm AMP CT CONN RCPT 2POS IDC MT 2MM SGL Headers & Wire Housings 2mm MT REC 2P GRY Conn IDC Connector RCP 2 POS 2mm IDT RA Cable Mount Bag Product Highlights:ConnectorConnector Type = Blindmate, MT (Mass Termination)Mating Type = ReceptacleNumber of Positions = 2Number of Rows = 1Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, 2mm CT MT REC ASSY 2P GRAY
4-179228-2
te connectivity / amp
Conn Housing RCP 2 POS 2mm Crimp ST Cable Mount 2mm AMP CT CT CRIMP-2 REC HSG 2P YELLOW Headers & Wire Housings CT CRIMP-2 REC HSG 2P YELLOW 2mm AMP CT Connectors 2mm AMP CT Connectors Product Highlights:ConnectorConnector Type = CrimpMating Type = Receptacle2 PositionsNumber of Rows = 1Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors,
179228-2
te connectivity / amp
Conn Housing RCP 2 POS 2mm Crimp ST Cable Mount 2mm AMP CT CONN RCPT 2POS SGL CRIMP 2MM Receptacle housing, 2mm, 2 way, CT,white Headers & Wire Housings RCPT 2 POS CRIMP 2mm Conn Housing RCP 2 POS 2mm Crimp ST Cable Mount Product Highlights:ConnectorConnector Type = CrimpMating Type = ReceptacleNumber of Positions = 2Number of Rows = 1Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, AMP-CTCRIMPHOUSING,CTCRIMPTYPERECHSG TE Connectivity AMP CT 系列 2mm 节距 2 路 直 母 压接连接器外壳 CT CRIMP TYPE REC HSG
2-179228-2
te connectivity / amp
Conn Housing RCP 2 POS 2mm Crimp ST Cable Mount 2mm AMP CT CT CRIMP-2 REC HSG 2P BLUE Receptacle housing, 2mm, 2 way, CT, blue Headers & Wire Housings CT CRIMP-2 REC HSG 2P BLUE Receptaclehousing,2mm,2way,CT,blue TE Connectivity AMP CT 系列 2mm 节距 2 路 直 母 压接连接器外壳

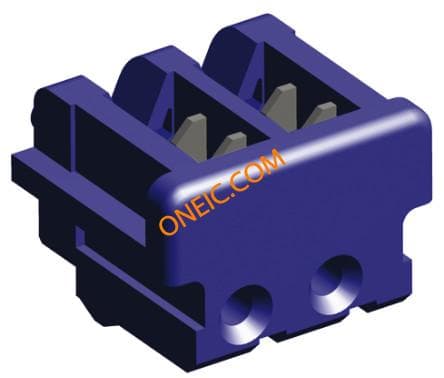

2-173977-2
