173977-2
| Manufacturer | |
| Description | Conn IDC Connector RCP 2 POS 2mm IDT ST Cable Mount Bag/Box 2mm AMP CT CONN RCPT 2POS 28-26AWG 2MM 2 way AMP mating connector LumiLED Headers & Wire Housings 2MM 2P HSG Conn IDC Connector RCP 2 POS 2mm IDT ST Cable Mount Bag/Box Product Highlights:ConnectorConnector Type = Blindmate, MT (Mass Termination)Mating Type = ReceptacleNumber of Positions = 2Number of Rows = 1Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, CTCONNMTRECASSY2P Female cable connector Pitch2 mm Poles 2 CT, 173977-2, TE Connectivity TE Connectivity CT 系列 天然色 2 路 电缆组件, 额定电流 2A, 125 V 交流/直流 CT CONN MT REC ASSY 2P |
| Category |
Business
| Tradename | Common Termination | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 1000 |
Compliance
| RoHS | Lead free / RoHS Compliant | Standards | IEC950 |
| Tariff No | 85369010 | Leadfree Defin | Not relevant for lead free process |
| Approval Agency | UL | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage Rating | 125 V ac/dc | Current Rating (Max) | 2A |
| Voltage - Supply (Min) | 125VAC | ||
Mechanical
| Color | Natural | Depth | 5.1 mm |
| Pitch | 2 mm | Height | 4.6 mm |
| Weight | 0.002 | Packaging | Bulk |
| Wire Type | Discrete or Ribbon Cable | Wire Gauge | 26-28 AWG |
| Termination | IDT | Contact Type | Female Socket |
| Housing Color | White | Mounting Type | Free Hanging (In-Line) |
| Angle of Throw | Straight | Connector Type | IDC Mass Termination |
| Contact Finish | Pre-Tin | Mounting Style | Wire |
| Number of Rows | 1 | Connector Usage | Receptacle |
| Contact Material | Phosphor Bronze | Housing Material | PBT - GF |
| Length - Overall | 2.00 [0.079] | Package Quantity | 1,000 |
| Panel Mount Type | Without | Primary Material | HighCurrent |
| Cable Termination | IDC | Pin Hole Diameter | 0.079" |
| Termination Style | IDC | 1st Contact Gender | Socket (Female) |
| Color - Connectors | Natural | Number of Contacts | 2 |
| Insulation Diameter | 0.85 â 1.05 [0.034 â 0.041] | Number of Positions | 2 |
| Wire Gauge or Range - mm2 | 0.08-0.15² [28-26] | Number of Positions/Bay/Row | 2 |
Product Info
| Type | IDC Connector | Gender | RCP |
| Series | AMP CT | Features | Closed End |
| Manufacturer | MTSeries | Product Type | Connector |
| Connection Type | Wire | ||
Environmental
| Operating Temperature | -40C to 105C | ||
Documents & Media
Similar Parts
176394-2
te connectivity / amp
Conn Shrouded Header HDR 2 POS 2mm Solder RA Thru-Hole Bag 2mm AMP CT CONN HEADER 2POS R/A 2MM GOLD Headers & Wire Housings BOX HDR ASSY H 2P AU CT BOX HDR ASSY H 2P GOLD
58372-1
te connectivity / amp
Connector Accessories Terminating Head Hand Tools 2MM HEAD W/O TOOL TOOL HEAD ASSEM 2MM TERMINATER Tools, Crimp HEAD (IDC) 2MM C.T. W/O TL Tool head for IDC termination l, 58372-1, TE Connectivity TE Connectivity 2mm CT 系列
292156-2
te connectivity / amp
Conn Coupler Header M/M 2 POS 2mm ST Panel Mount 2mm AMP CT CONN HEADER CT 2POS FREE HANGING Header plug, 2mm, 2 way,free hanging, CT Headers & Wire Housings CT RELAY HEADER Conn Coupler Header M/M 2 POS 2mm ST Panel Mount Product Highlights:ConnectorConnector Type = Crimp, MT (Mass Termination)Mating Type = HeaderNumber of Positions = 2Number of Rows = 1Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, Headerplug,2mm,2way,freehanging,CT TE Connectivity AMP CT 系列 1 行 2mm 节距 2 路 直 公/公 面板安装 PCB 壳体 CT RELAY HDR ASSY FREE HANGING

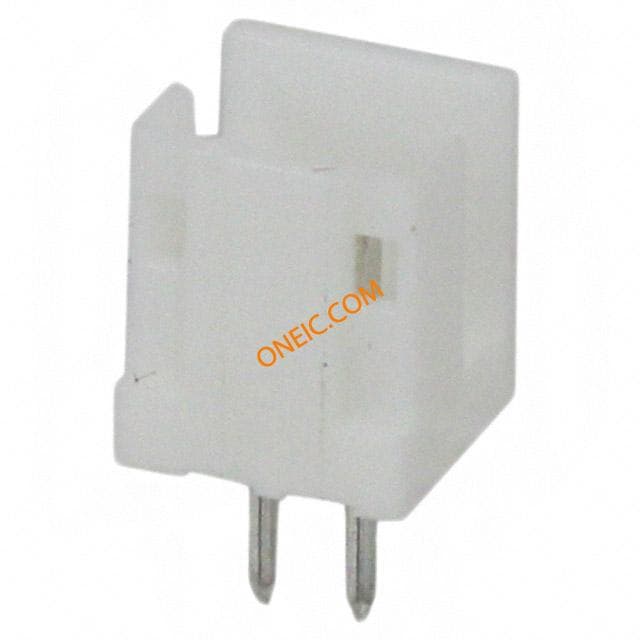

292133-2
te connectivity / amp
Conn Shrouded Header HDR 2 POS 2mm Solder ST Thru-Hole 2mm AMP CT CONN HEADER 2POS VERT 2MM Headers & Wire Housings CT P/HDR ASSY BOX V 2P W/O KIN Conn Shrouded Header HDR 2 POS 2mm Solder ST Thru-Hole Product Highlights:ConnectorConnector Type = Crimp, MT (Mass Termination)Mating Type = HeaderNumber of Positions = 2Number of Rows = 1Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, CT P/HDR ASSY BOX V 2P W/O KIN
656154-1
te connectivity / amp
MTIS.HANDTOOL Hand Tools MTIS HANDTOOL TOOL HAND PISTOL GRIP MTIS

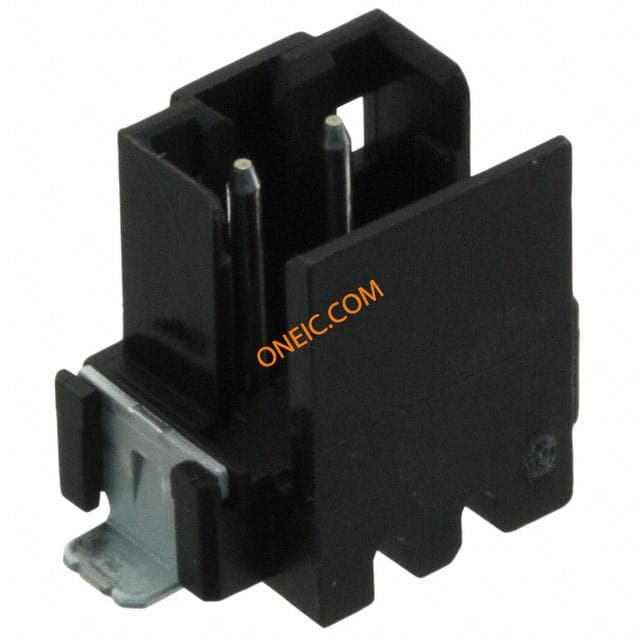

2-292175-2
te connectivity / amp
Conn Shrouded Header HDR 2 POS 2mm Solder ST SMD Embossed T/R 2mm AMP CT CONN HEADER 2POS SMD TIN BLK Headers & Wire Housings CT BOX HDR V SMT 2P O/TAPE BLA 2mm AMP CT Product Highlights:ConnectorConnector Type = MT (Mass Termination)Mating Type = HeaderNumber of Positions = 2Number of Rows = 1Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, CT BOX HDR V SMT 2P O/TAPE BLA

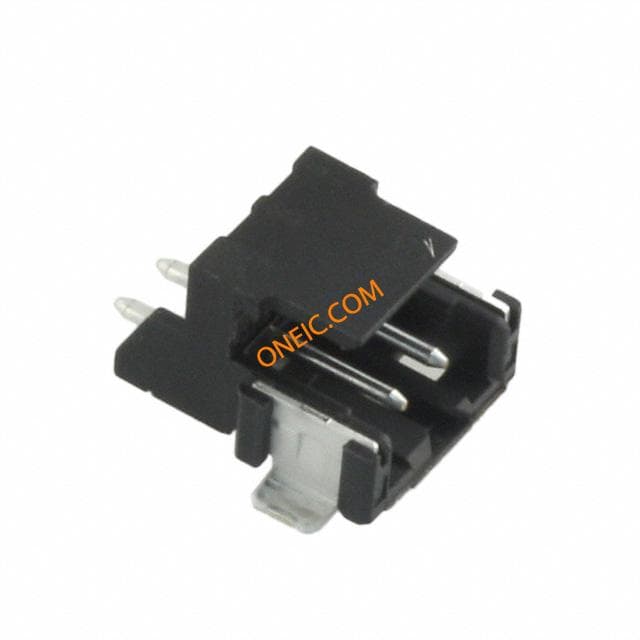

2-292173-2
te connectivity / amp
Conn Shrouded Header HDR 2 POS 2mm Solder RA SMD Embossed T/R 2mm AMP CT CONN HEADER 2POS SMD R/A TIN BLK TE Connectivity 2-292173 Series 2mm Pitch 2 Way 1 Row Right Angle PCB Header, Solder Termination, 2A Headers & Wire Housings HDR PIN 1X02C R/A Conn Shrouded Header HDR 2 POS 2mm Solder RA SMD Embossed T/R Product Highlights:ConnectorConnector Type = Crimp, MT (Mass Termination)Mating Type = HeaderNumber of Positions = 2Number of Rows = 1Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, HEADER, 2MM, CT, PCB, 2WAY Shroudedheader2way,2mm,90¦,CT,SMD TE Connectivity AMP CT 系列 2mm节距 2路 (1排) 直角 PCB 针座, 焊接端接, 2A , 表面安装 CT BOX HDR H SMT 2P O/TAPE BLA

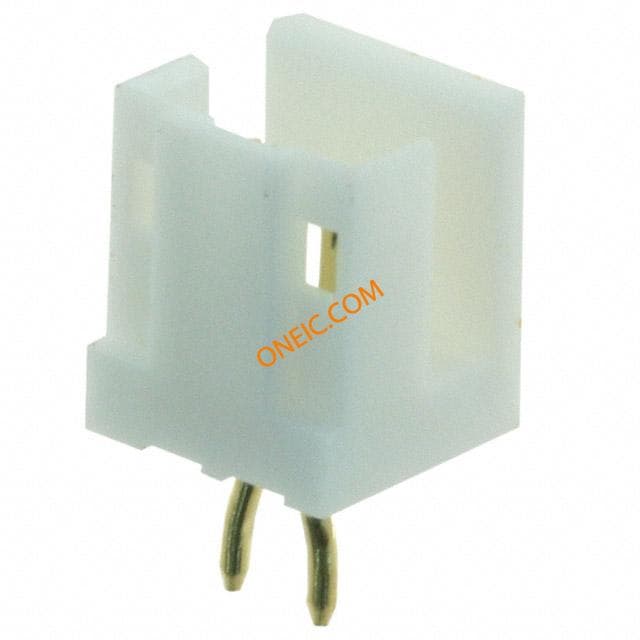

292134-2
