1055065-1
| Manufacturer | |
| Description | Conn SMA Adapter PL/RCP 0Hz to 12.4GHz RA Gold Over Copper SMA/QMA RF Connectors CONN ADAPTER R/A PLUG-JACK GOLD SMA right angle adaptor, plug to Jack Conn SMA Adapter PL/RCP 0Hz to 12.4GHz RA Gold Over Copper Product Highlights:AdapterConnector Type = SMAAdapter Type = Plug-JackBody Style = Right AngleWithout Panel AttachmentSearch Keywords:RF, subminiature, military/aerospace, MIL-C-39012 ADAPTER, R/A, PLUG-JACK, GOLD SMAADAPTER;PLUG-JACK;RIGHTANGLE SMA Plug to SMA Jack Right Angle RF Connector Adapter TE Connectivity 直角 50Ω 射频适配器 , 0 → 12.4GHz, SMA 插头 到 SMA 插座 2088 0000 02 |
| Category |
Business
| Other Names | A99390 | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | Standards | RoHS,ELVCompliants |
| Tariff No | 85366990 | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Approval Agency Marking | No |
Electrical
| Frequency | 0 to 12.4 GHz | Impedance | 50 Ohm |
| Voltage Rating | 335V | Conversion Type | Same Series |
| Frequency - Max | 12.4GHz | ||
Mechanical
| Length | 12.70 [0.500] | Weight | 0.005 |
| Packaging | Bulk | Body Finish | Passivated |
| Body Material | Stainless Steel | Edge Contacts | With |
| Mounting Type | Right Angle | Angle of Throw | RightAngle |
| Connector Type | SMA | Contact Finish | Gold Over Copper |
| Housing Finish | Passivated | Locking Feature | Without |
| Contact Material | Beryllium Copper | Housing Material | StainlessSteel |
| Panel Mount Type | Without | Primary Material | Adapter |
| Size / Dimension | 0.5in.L | Mating Orientation | Threaded |
| Dielectric Material | TFE Fluorocarbon | 2nd Connector Gender | :Socket |
| Center Contact Plating | Gold over Copper | Center Contact Material | With |
| Supplier Device Package | Right Angle | 1st Connector Mounting Type | :Cable |
| 1st Connector Mounting Feature | :Plug | ||
Product Info
| Type | SMA Adapter | Style | Right Angle |
| Gender | PL/RCP | Adapter Type | Plug to Jack |
| Manufacturer | AMP | Product Type | Adapter |
| Center Gender | Female to Male | Adapter Series | OSM to OSM |
| Connection Method | Mechanical | RF Family/Standard | 105506 |
| Application Specifics | Commercial | Convert To (Adapter End) | SMA Jack, Female Socket |
| Convert From (Adapter End) | SMA Plug, Male Pin | ||
Environmental
| Mating Cycles | 500 | ||
Documents & Media
Similar Parts
1053378-1
te connectivity / amp
Conn SMA RCP 0Hz to 12.4GHz 50Ohm Solder RA Thru-Hole Gold SMA/QMA RF Connectors CONN SMA JACK R/A 50 OHM PCB SMA r/a PCB mount Jack Conn SMA RCP 0Hz to 12.4GHz 50Ohm Solder RA Thru-Hole Gold Product Highlights:ConnectorJackConnector Type = SMATerminate To Printed Circuit BoardBody Style = Right AngleSearch Keywords:RF, subminiature, military/aerospace, MIL-C-39012 JACK, SMA, R/A, PCB, GOLD Connector,Jack;SMA;PrintedCircuitBoard;RightAngle;StainlessSteel;PTFE TE Connectivity 直角 50Ω 通孔安装 SMA 连接器, 插座, 焊接端接 2064 0000 00

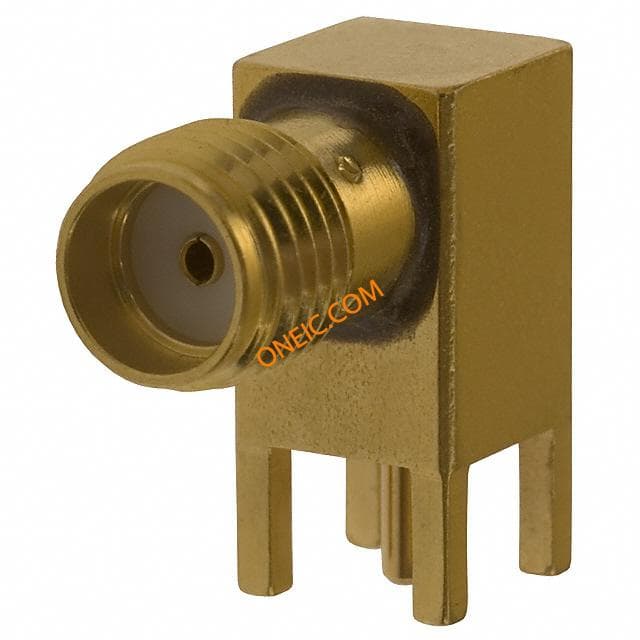

221790-1
