点击放大查看
1050525-1
| Manufacturer | |
| Description | Conn SMA PL 0Hz to 18GHz 50Ohm Solder ST Cable Mount Gold Over Copper SMA/QMA RF Connectors CONN SMA PLUG STR 50 OHM SOLDER SMA straight cable plug solder Conn SMA PL 0Hz to 18GHz 50Ohm Solder ST Cable Mount Gold Over Copper Product Highlights:ConnectorPlugConnector Type = SMATerminate To Coaxial CableCoaxial Cable Termination Type = SolderSearch Keywords:RF, subminiature, military/aerospace, MIL-C-39012 PLUG, SMA, RG-402, STR, SOLDER Connector,Plug;SMA;Solder;Straight;StainlessSteel;0.040in.;50Ohms TE Connectivity 50Ω 电缆安装 SMA 连接器, 插头, 焊接端接, 用于RG402电缆 2001 5003 02,SMA CABLE PLUG |
| Category |
Business
| Lead Time | 42 Days | Subcategory | Connector RF |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Standards | RoHS,ELVCompliants |
| Tariff No | 85366990 | ||
Electrical
| Frequency | 0 to 18 GHz | Impedance | 50 Ohm |
| Voltage Rating | 500V | Frequency - Max | 18GHz |
Mechanical
| Size | Standard | Length | 0.040in. |
| Weight | 0.005 | Packaging | Bulk |
| Cable Type | :RG402/U | Body Finish | Gold |
| Cable Group | RG-402 (.141" Semi Rigid) | Termination | Solder |
| Body Material | Stainless Steel | Mounting Type | Cable Mount |
| Angle of Throw | Straight | Connector Type | Plug, Male Pin |
| Contact Finish | Gold Over Copper | Fastening Type | Threaded |
| Housing Finish | Gold | Mounting Style | CableMount |
| Connector Style | SMA | Contact Material | Beryllium Copper |
| Housing Material | StainlessSteel | Primary Material | SMA |
| Shield Termination | Solder | Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper | Supplier Device Package | :Straight Plug |
| 1st Connector Mounting Type | :Cable | ||
Product Info
| Type | SMA | Gender | PL |
| Polarity | Normal | Connection Type | Coaxial Cable |
| RF Family/Standard | 1050525 | Application Specifics | Commercial |
Environmental
| Operating Temperature | -65°C ~ 105°C | ||
Documents & Media
Similar Parts

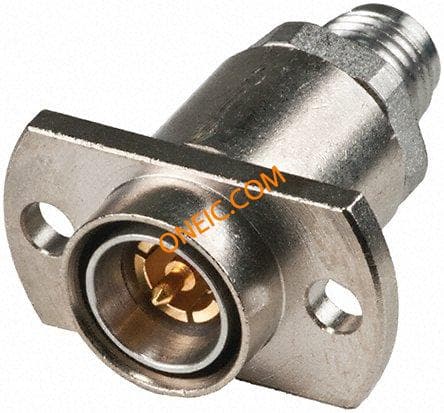

448091-2
